EXPOSED BR7-35 PROFILE B
EXPOSED BR7-35 PROFILE B
Exposed fastener panels are easy to install, economical, and versatile. Profile A and B may both be used for wall systems.
Profile A is designed for roof systems as the high cell lap promotes proper drainage. Exposed fastener panels feature bold profiles with varying widths and depths to suit any structural and architectural design requirements.
INFORMATION
BRAND
Morin Corp.
USE
Roofing
FORMAT
- Vertical
- Horizontal
CHARACTERISTICS
- Customizable Finish
- Choice Of Profiles
- Can Be Designed With Curves
- Seamless Wall-to-roof Transitions
INSTALL APPLICATION
- Wall
- Vertical
- Horizontal
- Perforated Screen
APPLICATIONS
- Residential
- Educational
- Corporate
- Comercial
- Cultural
- Industrial
ENVIRONMENTAL
LEED certified
MANUFACTURING LOCATION
Fontana CA
COLOR AND FINISH OPTIONS
All standard and custom finish options are available. Finish on one side, or both sides.
PANEL ATTACHMENT
Exposed through-fasteners (color matched fasteners available)
CERTIFICATION AND TESTING
- Air Infiltration : ASTM E283
- Water Penetration : ASTM E331
METAL OPTIONS
- Galvalume/Zincalume Painted Steel Options : 18 ga / 20 ga / 22 ga / 24 ga
- Aluminum Options : .050 / .040 / .032
- Stainless Steel Options : 22 ga / 24 ga
- Zinc Options : 1.0 mm / 0.8 mm
- Natural Copper Options : 20 oz. / 16 oz.

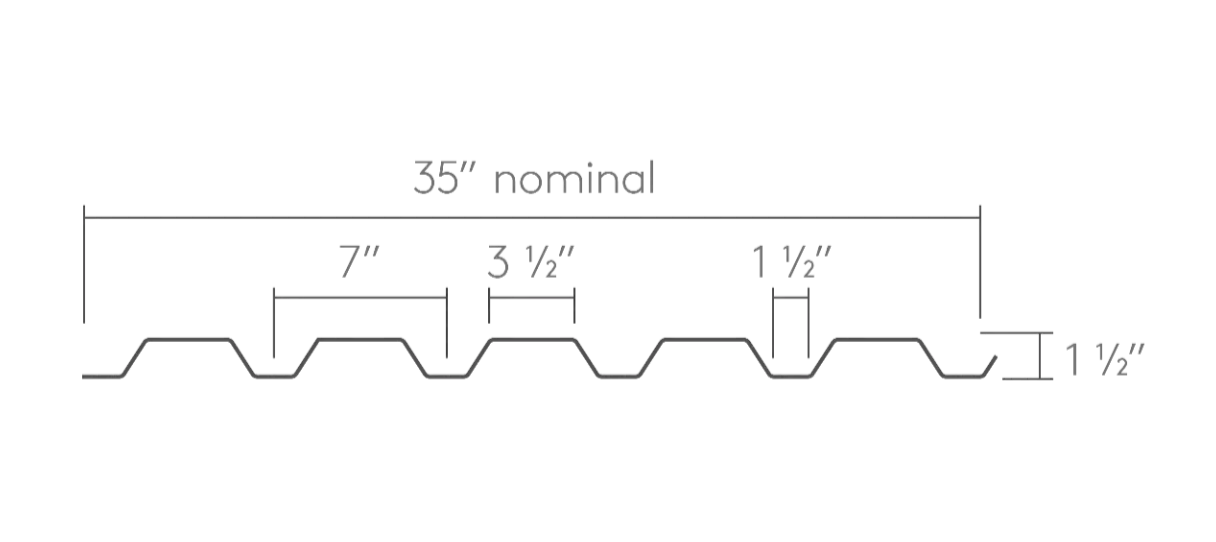

PANEL DIMENSIONS
- Width: 35" nominal
- Depth: 1.5" nominal
- Standard Lengths: 5'-30' (shorter and longer lengths available)
FEATURES
- Color matched fasteners available
- Exposed fastener design for easy install
- Standard and custom perforated options
- May be used for wall, or perforated screens
- Standard finish and custom finish options
- Mitered seam corners and curving options
- Machine roll formed for top quality consistent product
- Available in heavy gauge galvalume, aluminum, zinc, stainless steel, and copper
DOWNLOADS
SPECIFICATIONS
↓ Exposed Fastener Series Specifications Guide
USER / INSTALLATION GUIDES
↓ Exposed Series Installation Guide
TECHNICAL DRAWING
↓ BR7-35 Profile Drawing
↓ Exposed Profiles BR/Y/VB-31 Details Vertical With Trim
↓ Exposed Profiles BR/Y/VB-31 Details Horizontal With Trim
↓ Morin Extrusion Detail (inside section of outside corner)
↓ Exposed Profiles BR/Y/VB-31 Details Vertical With Trim
↓ Exposed Profiles BR/Y/VB-31 Details Horizontal With Trim
↓ BR7-35 Profile Drawing
SPAN TABLES
↓ BR7-35 Span Table (.050 Aluminum, 30% Perforated)
↓ BR7-35 Span Table (.040 Aluminum, 30% Perforated)
↓ BR7-35 Span Table (22ga Galvalume)
↓ BR7-35 Span Table (.032 Aluminum)
↓ BR7-35 Span Table (22ga Stainless Steel, 40% Perforated)
↓ BR7-35 Span Table (.063 Aluminum)
↓ BR7-35 Span Table (.040 Aluminum)
↓ BR7-35 Span Table (24ga Galvalume)
↓ BR7-35 Span Table (18ga Galvalume)
↓ BR7-35 Span Table (.050 Aluminum, 40% Perforated)
↓ BR7-35 Span Table (.063 Aluminum, 40% Perforated)
↓ BR7-35 Span Table (.050 Aluminum)
↓ BR7-35 Span Table (20ga Galvalume)
↓ BR7-35 Span Table (.050 Aluminum, 23% Perforated)
↓ BR7-35 Span Table (22ga Stainless Steel, 40% Perforated)
↓ BR7-35 Span Table (.040 Aluminum, 40% Perforated)
