SCHÖCK ISOKORB® XT TYPE SK
SCHÖCK ISOKORB® XT TYPE SK

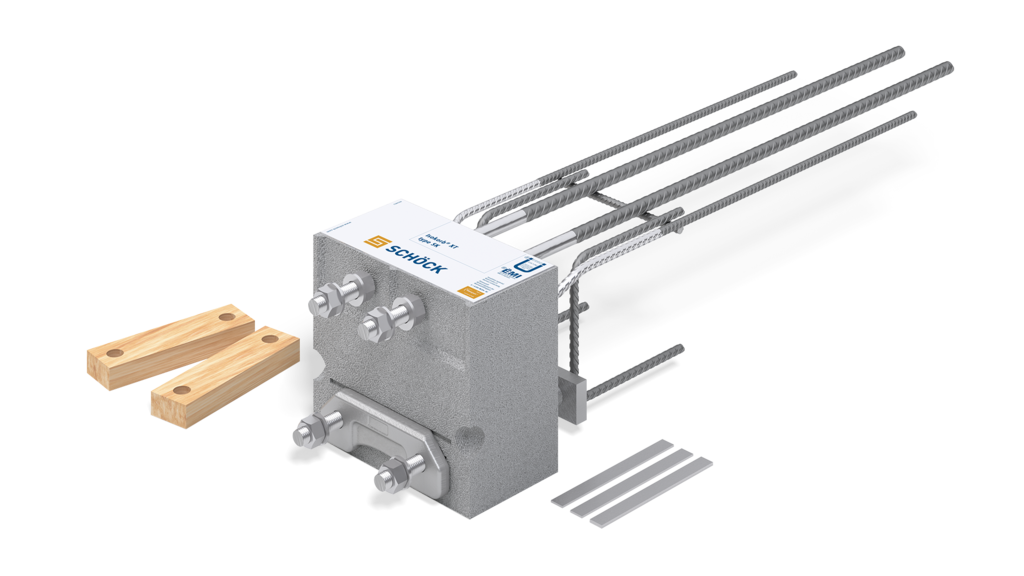

The Schöck Isokorb® XT type SK is a load-bearing thermal insulation element with 120 mm insulation thickness for connecting cantilevered steel balconies to a reinforced concrete slab. The Schöck Isokorb® XT type SK makes it easy to solve the technical, thermal and structural issues of designing modern balconies and facades.
INFORMATION
BRAND
Schöck
APPLICATIONS
Construction
50% BETTER THERMAL INSULATION PERFORMANCE
Compared to Schöck Isokorb® T type SK with 80mm insulation
CONNECTION
Reinforced concrete – reinforced concrete, Steel – reinforced concrete
CHARACTERISTICS
-Load-bearing, Range Of Types For Different Connections,
-Energy Efficiency
CORE CHARACTERISTICS
For Extra Thermal Separation
INSTALLATION JIG
For fast and accurate installation
SIMPLE DETAIL CREATION
Adapts to growing facade insulation thickness and geometric requirements
CORE CHARACTERISTICS
For Extra Thermal Separation
USE
-Balconies -Parapets
-Canopy Roofs
CONSTRUCTION DEPENDABILITY
Cantilevered steel structures such as steel balconies with no risk of condensation, mould or corrosion
BROAD RANGE OF APPLICATIONS
- E.g. For Steel Balconies,
- Steel Canopy Roofs,
- Façade Substructures
- Shade Systems
COLLECTION
Isokorb®
CERTIFIED PASSIVE HOUSE COMPONENT
Certified by the Passive House Institute in Darmstadt, Germany
SCHÖCK ISOKORB® XT TYPE SK/SQ INSTALLATION JIG
The Schöck Isokorb® installation jig gives you the reassurance that the Schöck Isokorb® T types SK/SQ as well as XT types SK/SQ are correctly seated both before and while applying the concrete, thus improving installation accuracy. Depending on load bearing capacity, the Schöck Isokorb® installation jig is available in 2 different variants and for applications involving external thermal insulation composite (ETIC) systems or monolithic wall structures.
SPECIAL CONSTRUCTIONS
Some connection situations cannot be realised with those standard product variants presented in this Technical Information. In this case special designs can be requested from the application engineering department (for contact details see page3 ). This applies, for example, with additional requirements as a result of prefabricated construction (limitations due to technical manufacturing constraints or through transportation width), which can possibly be met using coupler bars.
TECHNICAL INFORMATION
-This Technical Information on the respective product application is valid only if complete and therefore may only be reproduced as a whole. With texts and graphics published solely as extracts there is a danger of communicating insu cient or even misleading information. Therefore dissemination is the sole responsibility of the user or the person carrying out the process! -This Technical Information is valid solely for the United Kingdom and takes into account the country’s speci c approvals and standards. -If the installation takes place in another country then the valid Technical Information of the respective country is to be applied.
