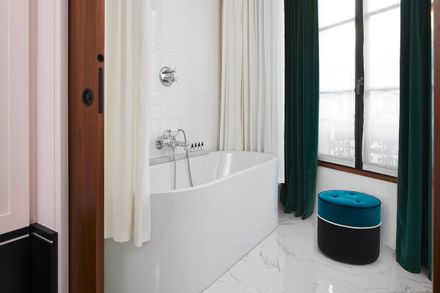

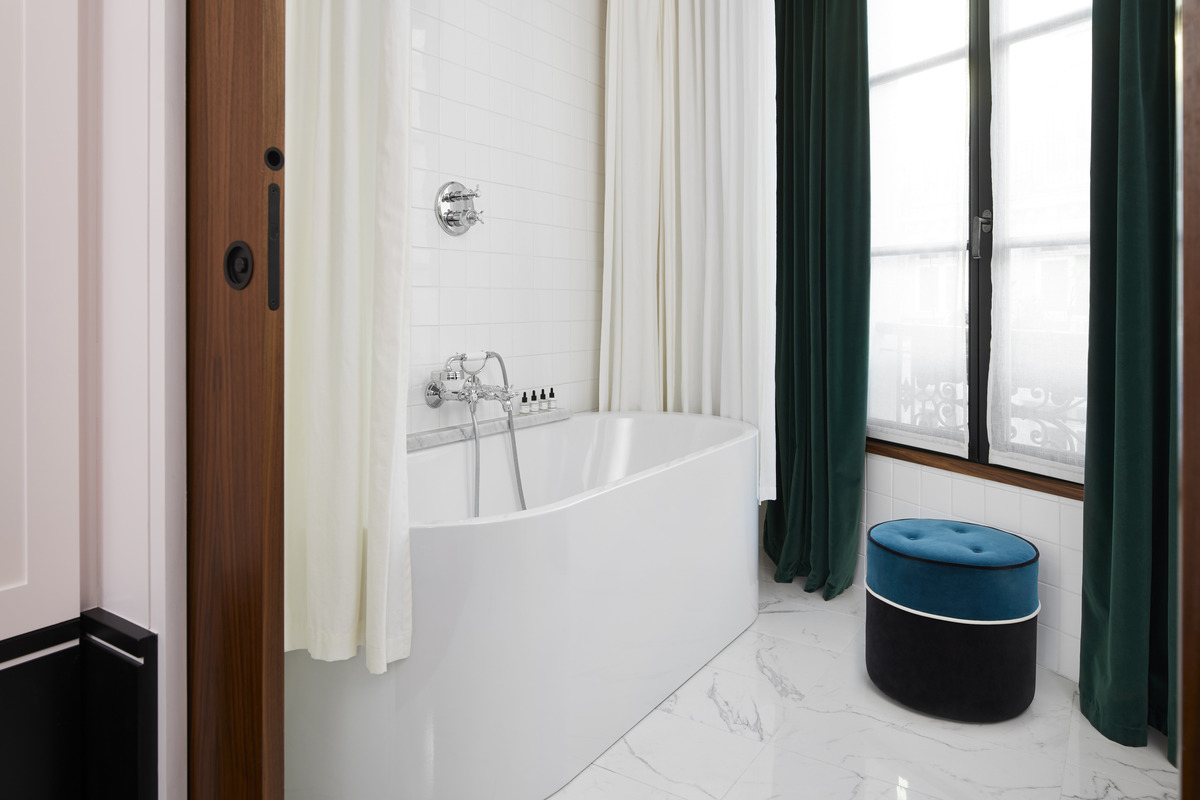

Kaldewei Meisterstück Centro Duo Oval Bathtubs
MEISTERSTÜCK CENTRO DUO OVAL BATHTUBS
MEISTERSTÜCK CENTRO DUO OVAL BATHTUBS
Designed By Sottsass Associati
Free-standing design with perfect aesthetics: architectural, geometric, seamless.
A masterpiece of harmony in unique KALDEWEI steel enamel with a 30-year guarantee in accordance with our applicable guarantee conditions.
features
STEEL ENAMEL
KALDEWEI steel enamel is extremely resistant, durable and sustainable. Robust steel and fine glass, two authentic, natural materials form an inseparable bond.
DESIGN
An exquisite, sustainable material like KALDEWEI steel enamel deserves a timeless design. Our bathroom objects will touch and delight you each day. In addition to our own creations, we rely on the expertise of renowned designers.
SUSTAINABILITY
We live and produce sustainability. Steel enamel is made from natural raw materials and is 100 percent recyclable after a long life cycle. That makes KALDEWEI steel enamel the most sustainable material in your bathroom!
INFORMATION
MODEL NO.
1127-4040
APPLICATIONS
Bathrooms
INTERNAL LENGTH (TOP)
1580 mm
COLORS
Alpine White
INTERNAL WIDTH (TOP)
630 mm
INTERNAL LENGTH (TOP)
1130 mm
DIMENSIONS
- Length : 1700 mm
- Width : 750 mm
- Depth : 485 mm
INTERNAL WIDTH (BOTTOM)
510 mm
DEPTH INSIDE
460 mm
WIDTH OF RIM (FOOT END; LONG SIDE)
60; 60 mm
DIAMETER OF WASTE HOLE
Ø 52 mm
NET WEIGHT
120 kg
EXTERNAL RADIUS
375 mm
HEIGHT OF BATH
610 mm
DISTANCE TOP EDGE TO CENTRE OF OVERFL OW HOLE
70 mm
FILL FI TTING CONNECTION
3/4"
WASTE CONNECTION DIAMETER
Ø 40/50
WATER VOLUME
156 l
TECHNICAL DRAWING
DIAMETER OF OVERFL OW HOLE
Ø 52 mm
DISTANCE CENTRE OF WASTE HOLE TO CENTRE OF OVERFL OW HOLE
307 mm
DISTANCE BATH EDGE TO CENTRE OF WASTE HOLE
850 mm
KEY FEATURES
-Free-standing bathtub made of high-quality steel enamel
-Refined with the exclusive easy-clean finish
-Minimalist simplicity and unpretentious elegance are the hallmarks of this bathtub
-The panelling, made from a single piece of steel enamel, accentuates the high design requirement and allows for freestanding positioning
-Enamelled waste cover and overflow knob integrated into the bathtub design (also available with filling function)
-Bathing for two: two identical backrests and centrally positioned waste outlet
-Made of kaldewei steel enamel
