ECHO ELIMINATOR WALL AND CEILING PANEL
ECHO ELIMINATOR WALL AND CEILING PANEL

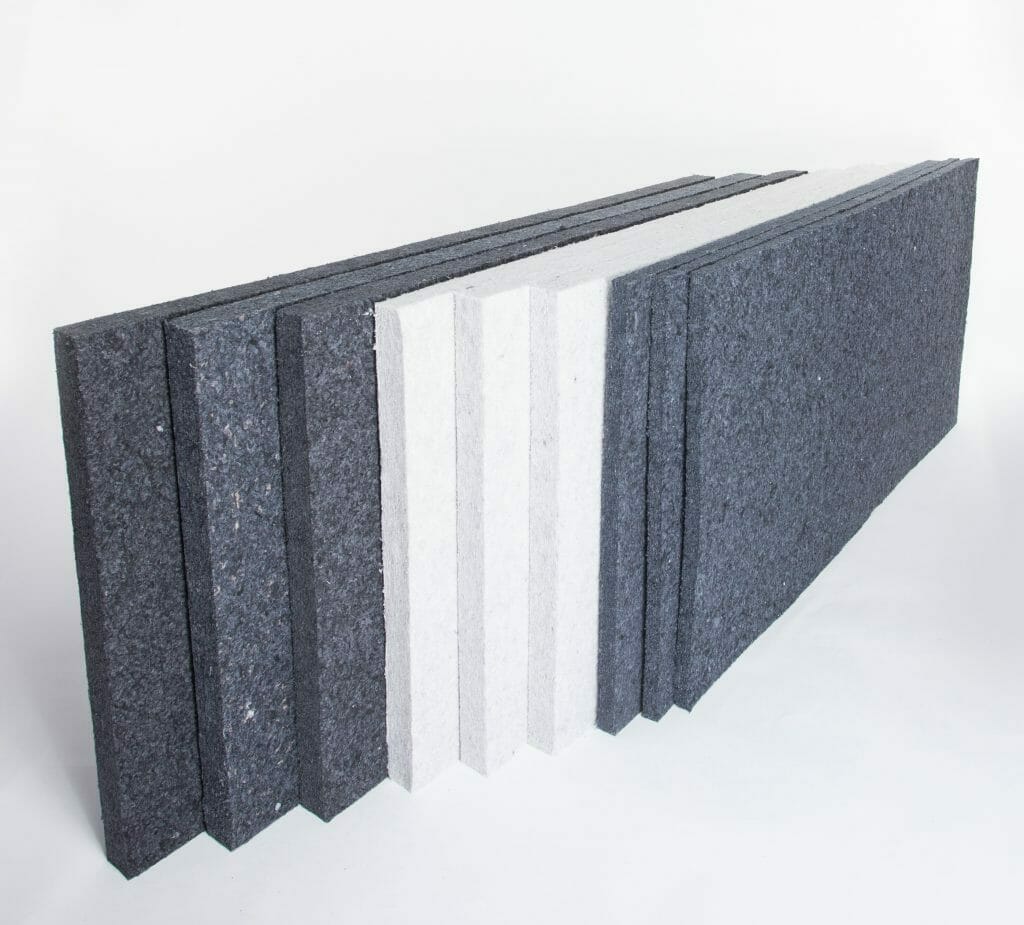

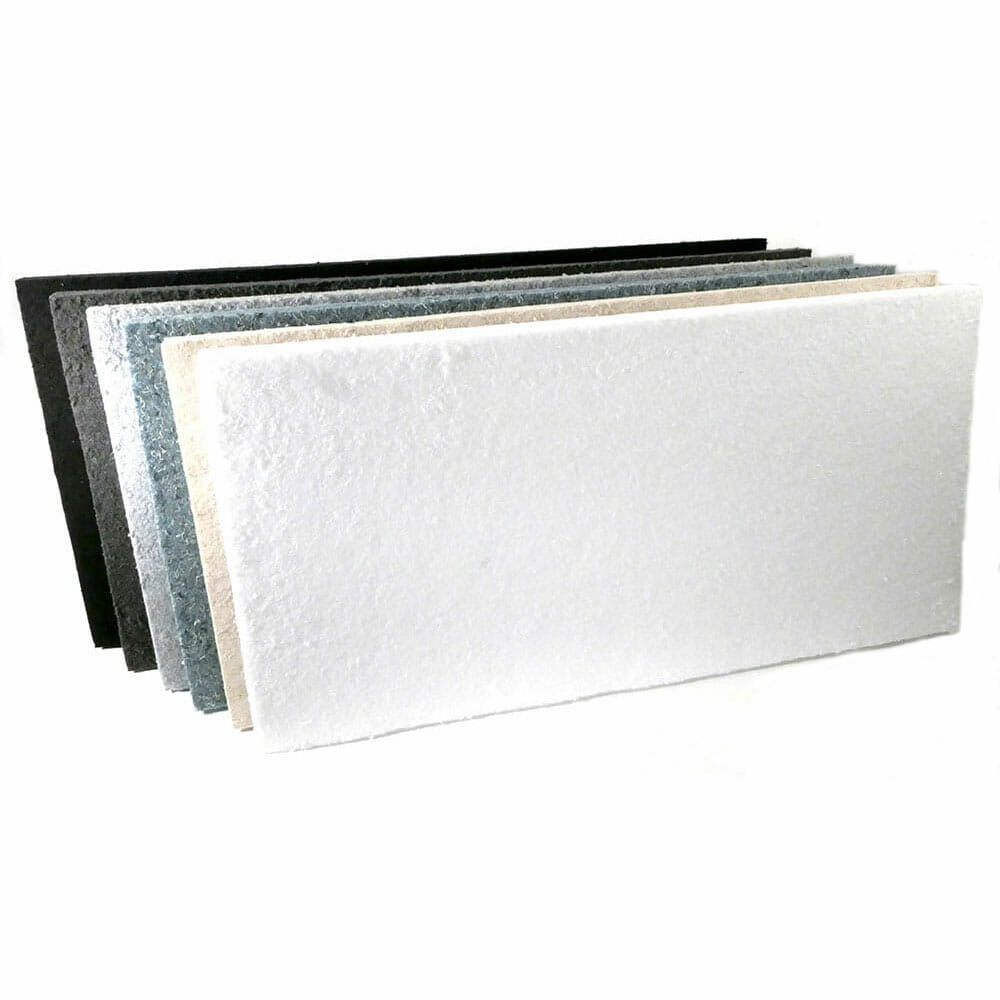

Bonded Acoustical Cotton Ceiling and Wall Panels
Echo Eliminator, made from bonded acoustical cotton (B.A.C.), is the most cost-effective acoustical absorbing material on the market.
It is a high-performance acoustical panel manufactured from recycled cotton, and is ideal for any noise control application.
Echo Eliminator Ceiling and Wall panels can be installed with a variety of methods to accommodate any space. Echo Eliminator Ceiling and Wall Panels may be eligible for LEED™ credits, are Class A fire rated, and 100% recyclable.
INFORMATION
INSTALLATION METHOD
- Ceiling : Adhesive, Stick Pins
- Wall : Adhesive
PRODUCTION
Made In Columbia
THICKNESS
1" / 2"
FIRE PERFORMANCE
Class A Fire Rated per ASTM E84
USE
Noise Control
FORMAT
- Wall Panels
- Hanging Baffles
LIGHT REFLECTANCE

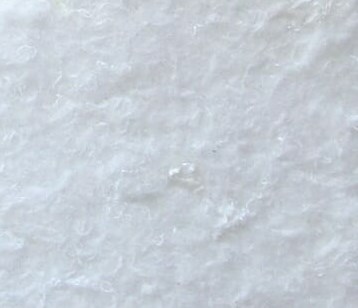

- White - 89
- Light Gray - 37
CERTIFICATION
- Eligible For Leed™ Credits
- Class A – Non-flammable (Per Astm E-84)
MATERIAL COMPOSITION
Bonded acoustical cotton (B.A.C.) made from recycled fibers
ENVIRONMENTAL
- Passes ASTM C1338 test (No fungal growth)
- Passes CDPH Standard Method V1.2-2017 (VOC Emissions)
SIZE
- Standard Sizes : 24" x 48"
- Additional Sizes : 12" x 12", 24" x 24", 48" x 48", 48" x 96"
CHARACTERISTICS
- Sustainable
- 100% Recyclable
- Acoustical Absorption
- Lightweight

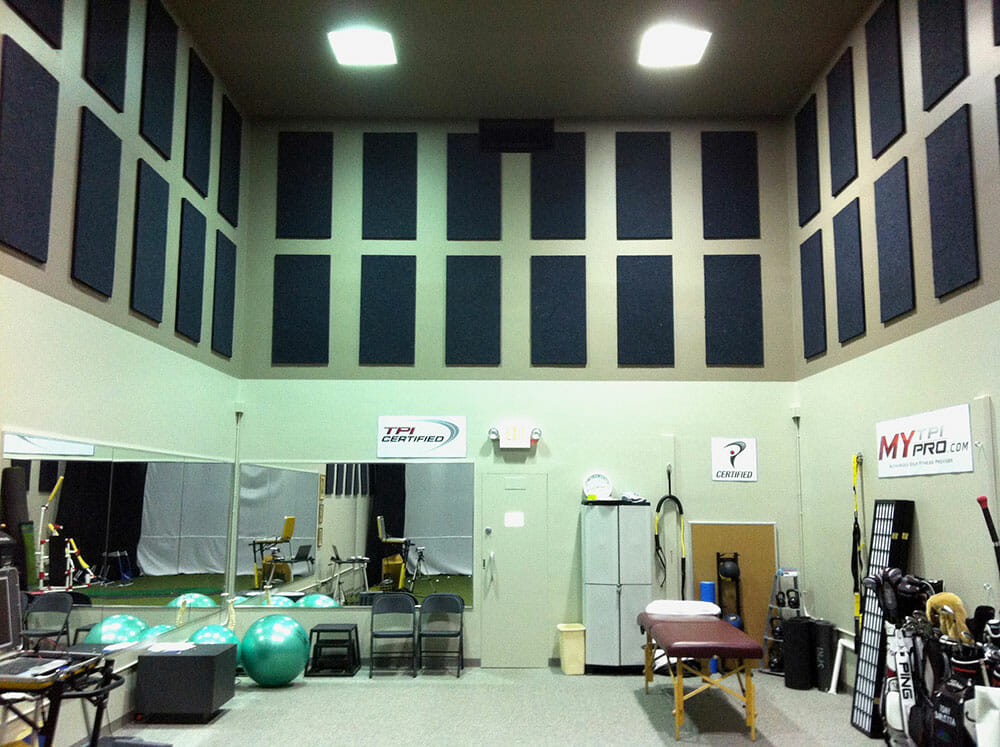

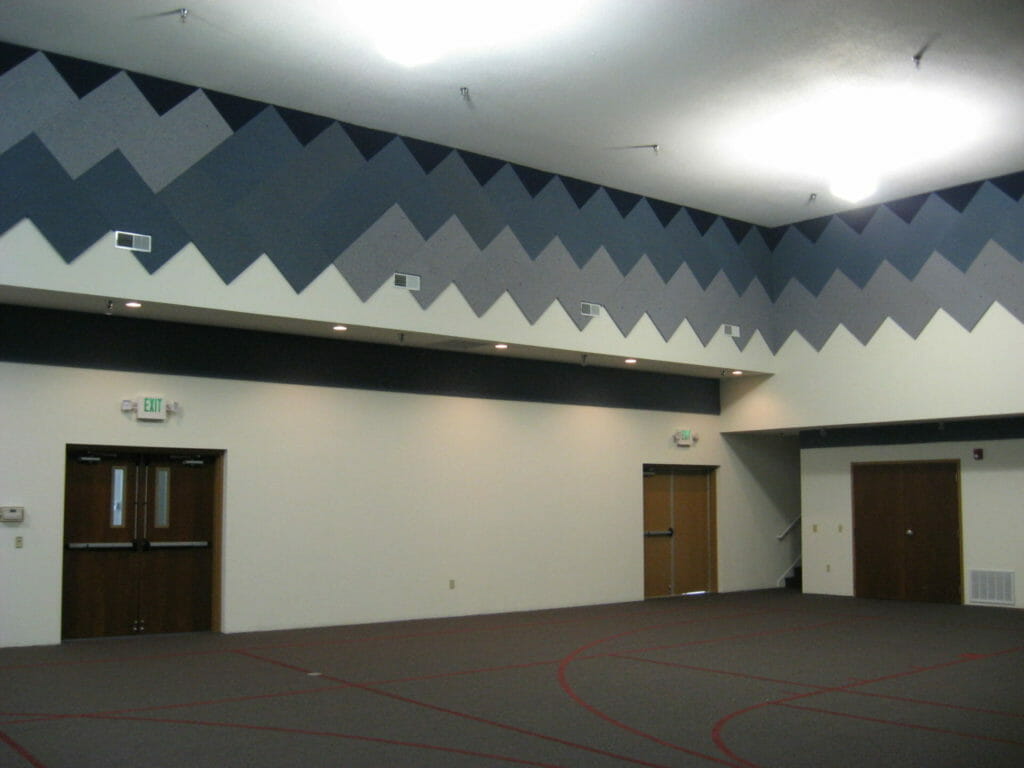

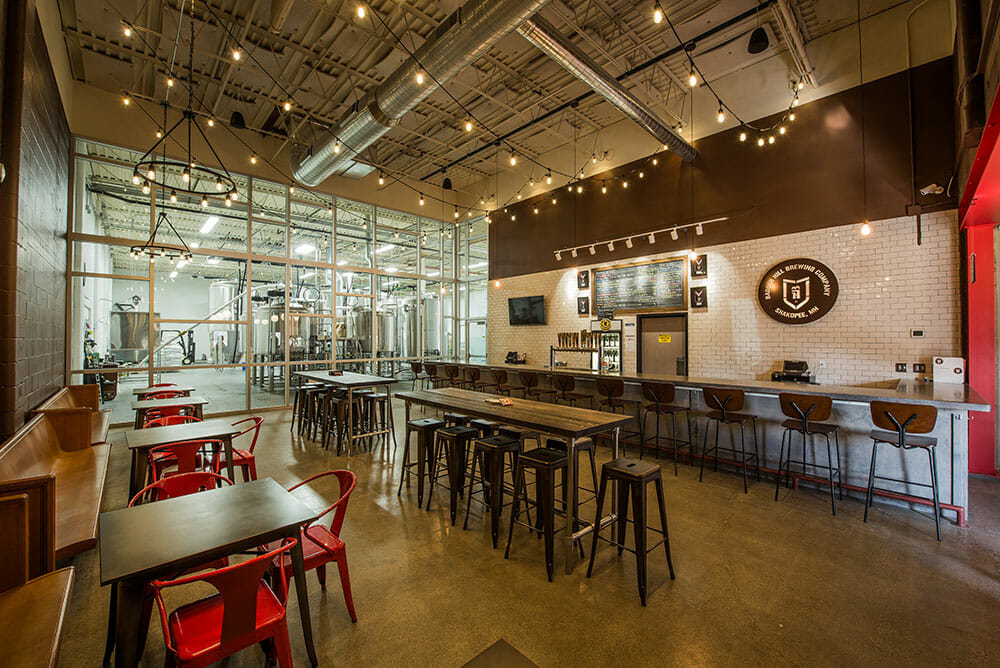

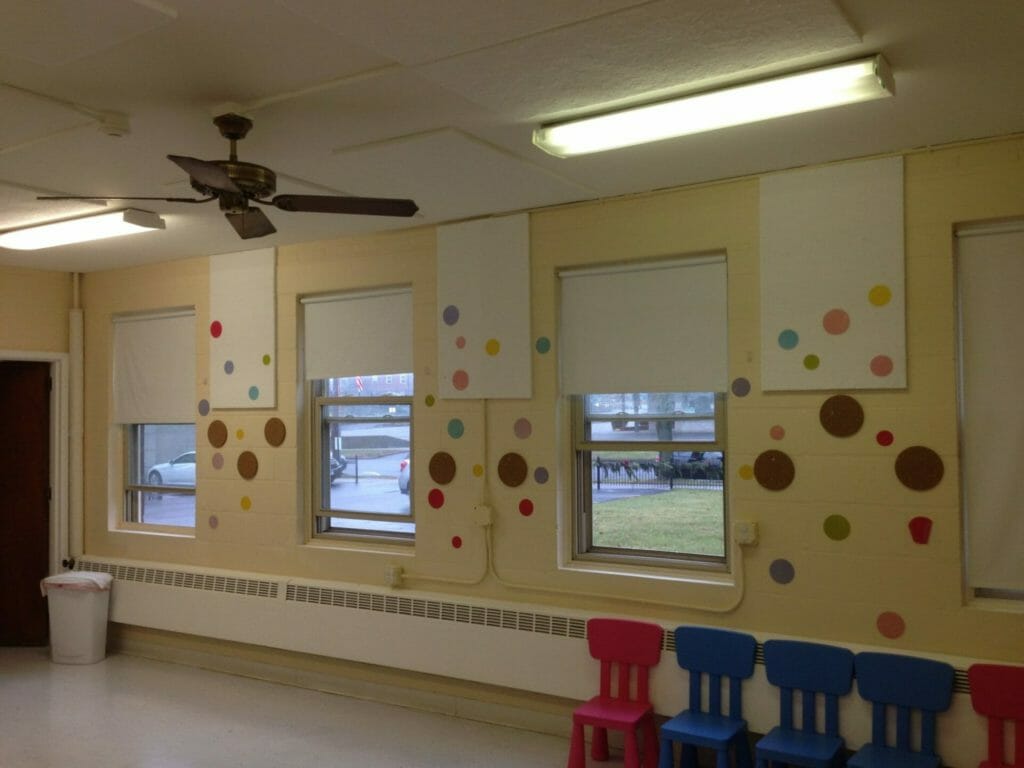

APPLICATIONS
- Residential
- Commercial
- Industrial; schools
- Restaurants
- Classrooms
- Houses of worship
- Community centers
- Offices, conference rooms
- Recording studios
- Theaters
- Public spaces
- Medical facilities
- Auditoriums
- Arenas/stadiums
- Warehouses
- Manufacturing plants, and more.
THERMAL RESISTANCE (R-VALUE)
- 1" 3 lb pcf - 3.8
- 1" 6 lb pcf - 3.8
- 2" 3 lb pcf - 7.5
BRAND
Acousticalsurfaces
PRODUCT TYPE
Metal Panels

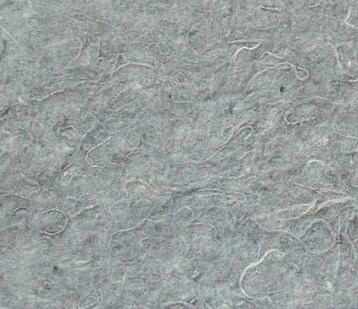

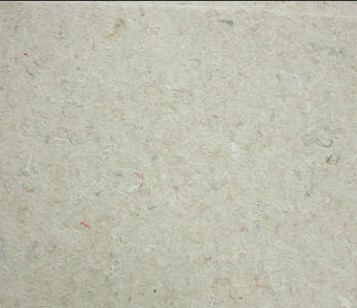

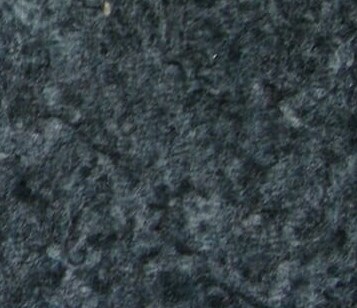

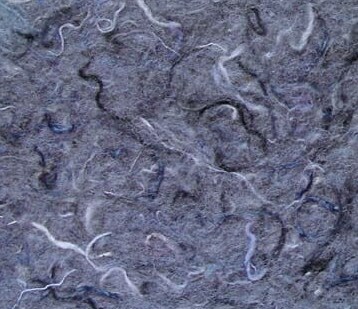

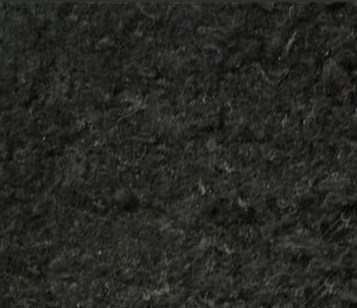

COLORS
ECHO ELIMINATOR – OCTAVE BAND ABSORPTION COEFFICIENTS
| PANEL THICKNESS / DENSITY | TESTING MOUNT | 125 Hz | 250 Hz | 500 Hz | 1 kHz | 2 kHz | 4 kHz | NRC RATING |
|---|---|---|---|---|---|---|---|---|
| 1″ 3 lb. pcf | A | 0.08 | 0.31 | 0.79 | 1.01 | 1.00 | 0.99 | 0.80 |
| 1″ 6 lb. pcf | A | 0.07 | 0.30 | 0.86 | 1.10 | 1.05 | 1.03 | 0.85 |
| 2″ 3 lb. pcf | A | 0.35 | 0.94 | 1.32 | 1.22 | 1.06 | 1.03 | 1.15 |
