CCA LINEAR CEILING
CCA LINEAR CEILING

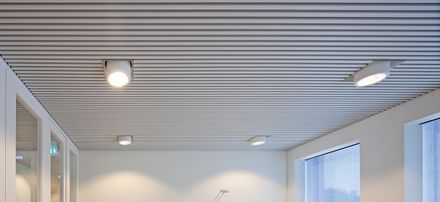

The excellent thermal exchange and acoustic performance of The Luxalon® Linear Open CCA Ceiling System provides 100% acoustic ceiling coverage.
This acoustic ceiling creates outstanding comfort and temperature control at levels that cannot be achieved with islands or baffle systems.
INFORMATION
DESIGN & INSPIRATION
The CCA panels come in three heights: 15, 39 and 64mm which are also used in the Hunter Douglas Multi-Panel ceiling program. This unique paring of ceiling solutions makes it possible to create highly functional and beautifully engineered three-dimensional designs. The 20 mm joints are left open for an optimum thermal exchange with the concrete slab above. As a special there is a 60mm module carrier available with an open joint width of 30mm to enhance the thermal performance of the CCA panel system.
CHARACTERISTICS
-Optimal thermal exchange -Excellent acoustics -100% ceiling coverage -Positive effect on comfort -Made from up to 92% recycled aluminium -100% recyclable product -Cradle to Cradle Certified™ Bronze (Cradle to Cradle Certified™ is a certification mark licensed by the Cradle to Cradle Products Innovation Institute).
BRAND
Hunter Douglas Architectural
USE
Interior ceilings
DOWNLAODS
↓ Brochure Ceiling Metal Linear Concrete Core Activation
↓ Commercial Ceilings & Walls Product Guide 2022/20
↓ Technical Brochure Metal Linear Ceilings
↓ Installation Instructions Metal Linear Ceilings
↓ EPD TAIM Fe ceilings
APPLICATIONS
The Linear Open CCA Ceiling system is suitable for all building sectors were passive cooling systems are used including, corporate, leisure, public space, hospitality, healthcare, education and residential environments.
MATERIAL CHARACTERISTICS
The Luxalon® Linear Open CCA ceiling system greatly improves acoustic performance and comfort in conjunction with concrete core activation. Based on the Luxalon® 30B, 30BD and 30BXD panels, the CCA ceiling system has been extensively tested and installed in a wide range of project applications.
WHY CCA?
Traditional ceilings systems like baffles and ceiling islands offer an acoustic solution, however complete ceiling coverage is not possible. The excellent thermal exchange and acoustic performance of Luxalon® CCA Acoustic 30B, 30BD and 30BXD enables 100% acoustic ceiling coverage, creating outstanding acoustic comfort and temperature control at levels that cannot be achieved with islands or baffle systems.
ACOUSTIC INFORMATION
The acoustic comfort in an office space, school or public building contributes to our well being as poor acoustic performance can affect health, communication, safety, productivity and learning. Hunter Douglas high performance acoustic ceiling products are the best solution to deliver outstanding acoustic performance, comfort and an aesthetically pleasing Environment. With the Luxalon CCA ceiling system an absorption value (αw) 0.65 can be obtained, depending on the ceiling and panel configuration.
COLOURS AND FINISHES
COLORS
The Hunter Douglas range of Metal Ceilings, are available in a range of standard colours that are suitable for most applications. For further information on ceiling types and the special finishes and colour ranges that are available for specific projects please contact our sales office.
WOOD TONES
-8620 - Pine -8612 - Cedar -8610 - Palissander -8616 - Elm -8601 - Oak
NATURE TONES
COOL WHITES
WARM WHITES
METALS
