DOOR HANDLE INDUSTRY SQUELETTE
DOOR HANDLE INDUSTRY SQUELETTE
Deaigned By Roman Ulich
A stainless steel handle with a choise of 6 surface finishes & colours, with a guarantee from 8 till 15 years, by type of surface.
With a magnetic rosettes system, the quality mechanics M 2018, using for interior and exterior doors.
INFORMATION
MATERIAL
Stainless steel
USE
- Interior And Exterior Doors
- For Door Weight Up To 60 Kg
MOUNTING
Drilling with profi template M&T, screwing through with screw-together cases system
AVAILABLE SURFACE FINISHES

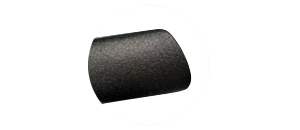

Stainless steel grinded, and titanium surface finishes, black matt structured
MECHANICS
M 2018 magnetic system with a returned spring, with screw-together cases system and magnetic rosettes
DIMENSIONS
- Length : 161 mm
- Height : 54 mm
SET
Design set without key rosettes, key rosettes are to order extra
APPLICATIONS
- Residential
- Hospitality
- Corporate
- Commercial
APPLICATIONS
According to the type of surface for the interior and exterior doors, for door weight up to 60 kg
CHARACTERISTICS
- Manufactured In The Czech Republic
- Quality Surface Finishes
- Top Handle Mechanics
- Comprehensive Guarantees
- Competitive Pricing
- Uses Stainless Steel
- Fast And Precise Assembly
ACCESSORIES
The package includes:
- Spindle in the same colour
- Set screws
- Glue gel
- Fasteners
- Assembly instructions
- Waranty card
WARANTY
- Mechanics 3 years
- Stainless steel 5 years, black matt structured 5 years, titanium surface finishes 15 years
DIMENSIONAL APPLICATIONS
-Standard for door thickness 38-45 mm, mounting options for door thickness from 38 to 126 mm -Preparation for doors: drilling for holes diameter 24 – 25mm -Handles with magnetic rosettes can be fully inserted into the door, be careful of the weakened side at the rebated and reversed doors. Thickness of the rosette is 5 mm. -The space / depth of insertion for the magnetic rosette including the returned spring and handle neck is 8,5 mm
6 SURFACES
