Skyfold Skyfold Prisma™
SKYFOLD PRISMA™
SKYFOLD PRISMA™

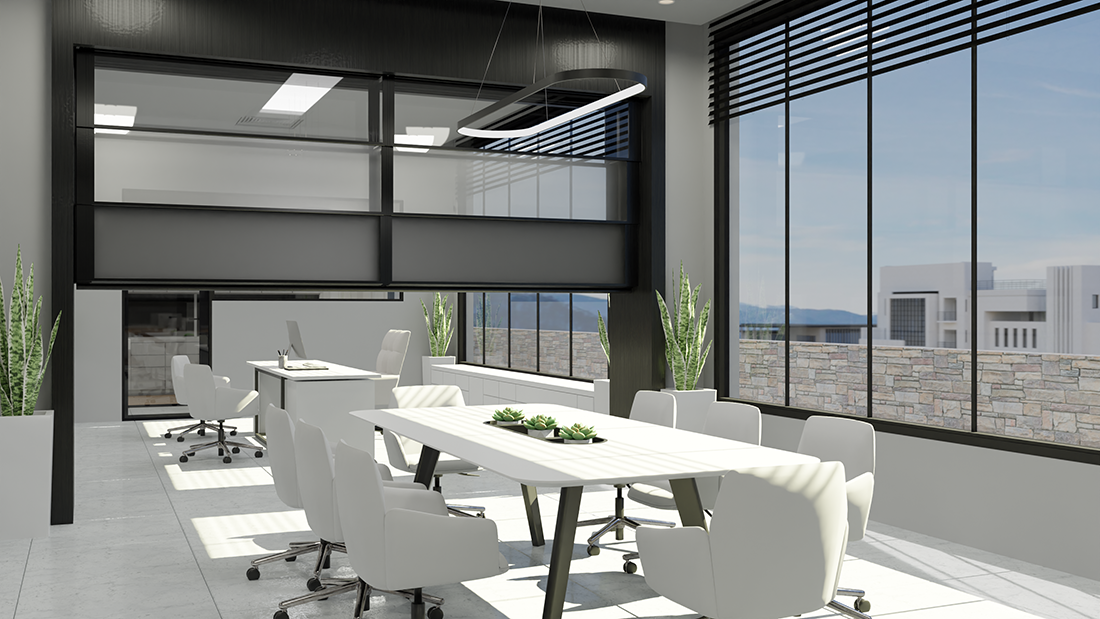

We proudly present the future of glass vertical partitions: The Skyfold Prisma. Not only does the streamlined Prisma let the light shine in, but it does so without the use of any wall or floor tracks, rendering it completely invisible when stored into the ceiling.
Skyfold Prisma's slim metal frame, clean lines, and sleek design will add elegance and natural light to your flexible spaces. Skyfold Prisma's glass panels allow for sunlight to penetrate otherwise dark rooms and corridors, creating a more pleasant atmosphere that positively affects mood and productivity.
With an STC rating of STC 52 / Rw 52, the Prisma ensures privacy between spaces, allowing confidential meetings, classes, and collaboration to occur simultaneously. Its slim frame allows for unencumbered sight lines, allowing your flexible space to feel more open, even as it's being divided.
The Skyfold Prisma, with finish options that include frosted glass and solid panels, creates a functional design piece to match your space's aesthetic.
With a streamlined tapered-down deployment, the Prisma is ideal for tighter spaces with potential obstructions, which would otherwise limit the use of a vertically folding retractable wall.
INFORMATION
AUTO REVERSE
Yes
ACOUSTIC RATING OF SYSTEM
52 STC (52 Rw)
FORMAT
Vertically retracting
MATERIAL
Glass
CEILING POCKET WIDTH (APPROX.*)
≤ 24” (≤ 610 mm)
DIGITAL TOUCH SCREEN OPERATOR STATION – INCLUDED
Yes
APPLICATIONS
- Corporate
- Educational
ACOUSTIC RATING OF PANELS
N/A
OBSTRUCTION SAFETY SENSOR
Yes
10-YEAR (OR 5000-CYCLE) PARTS WARRANTY
Yes
CEILING SPACE REQUIRED FOR STORAGE (APPROX.*)
≤ 36” (≤ 915 mm)
GLASS OPTIONS
- Low Iron Glass
- Frosted Glass.
- A Variety of Laminated Tempered Glass Options
- Including Clear Glass
FRAME FINISH
Black or metallic silver standards. Can be custom painted to match any RAL color code
CHARACTERISTICS
- Lightweight structure
- Automatic
- Transparent
- Easy to operate
- Minimal space required for operation
WALL TRACKS
No
WEIGHT
~13 lbs/ft² (~63.5 Kg/m²)
MAX. WALL LENGTH
Unlimited
MAX. WALL HEIGHT
12'-0" (3660 mm)
SOUND ISOLATION (WHEN CLOSED)
- STC 52
- RW 52
ADVANTAGES
- Retracts into the Ceiling to Conserve Floor Space
- Industry-Leading STC rating of STC 52/Rw 52
- No Floor or Wall Tracks
- Fully Automatic
- Easy-to-use digital keypad operation
- Quiet Operation
- Equipped with a safety obstruction sensor
LED LIGHTING
N/A
BACKUP OPERATION
Yes
DETAIL
We offer a wide range of finish options and layouts to meet your specific design needs. This is what makes Skyfold's movable walls a custom design piece within your space, and not just an acoustic room divider. The Skyfold Prisma glass panels can also be combined with solid panels to which fabric, vinyl, paint, plastic laminate and markerboard can be applied.
PARTS & LABOR WARRANTY: 2-YEAR (OR 5000-CYCLE)
2-year (or 5000 cycles): Included
ACOUSTICAL PERFORMANCE WARRANTY: 10-YEAR (OR 5000-CYCLE)
2-year (or 5000 cycles): Included
CERTIFICATION
- Compliant with ASTM C1172
- ANSI Z97.1
- CPSC 1201
