Raynor DuraShutter™ Rolling Counter Shutters
ROLLING COUNTER SHUTTERS

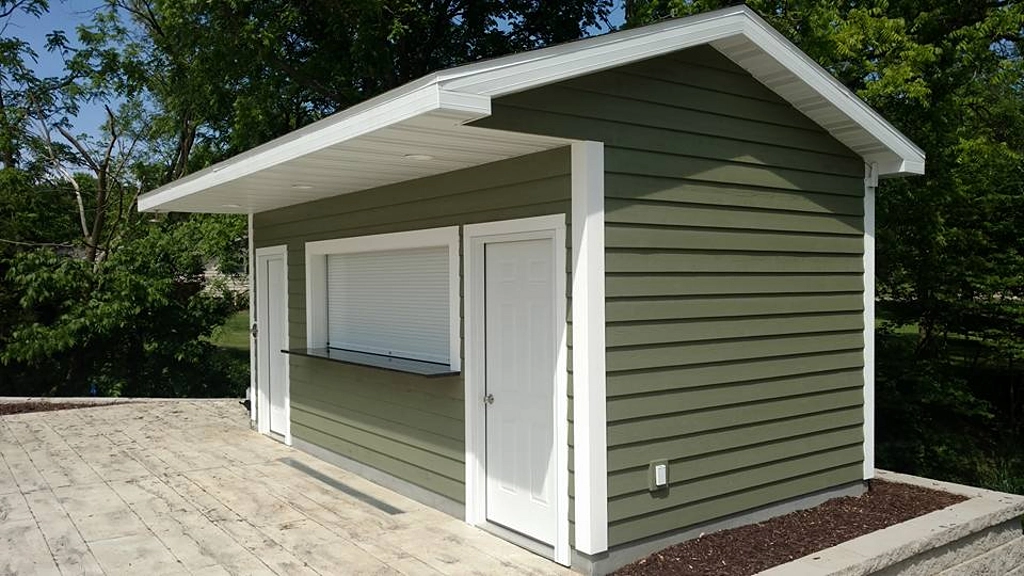

DURASHUTTER™ ROLLING COUNTER SHUTTERS
Designed for a variety of common applications, Raynor DuraShutter rolling counter shutters provide reliability and durability to meet or exceed the requirements of daily use.
Rugged, versatile, and secure, DuraShutter rolling counter shutter doors are available with a wide selection of quality features and options ideal for retail and commercial facilities.
FEATURES
CURTAIN HOOD
Curtain hoods are square and designed for maximum structural rigidity.
GUIDES
Guides constructed of steel, stainless steel or aluminum, allow for face or jamb mounting.

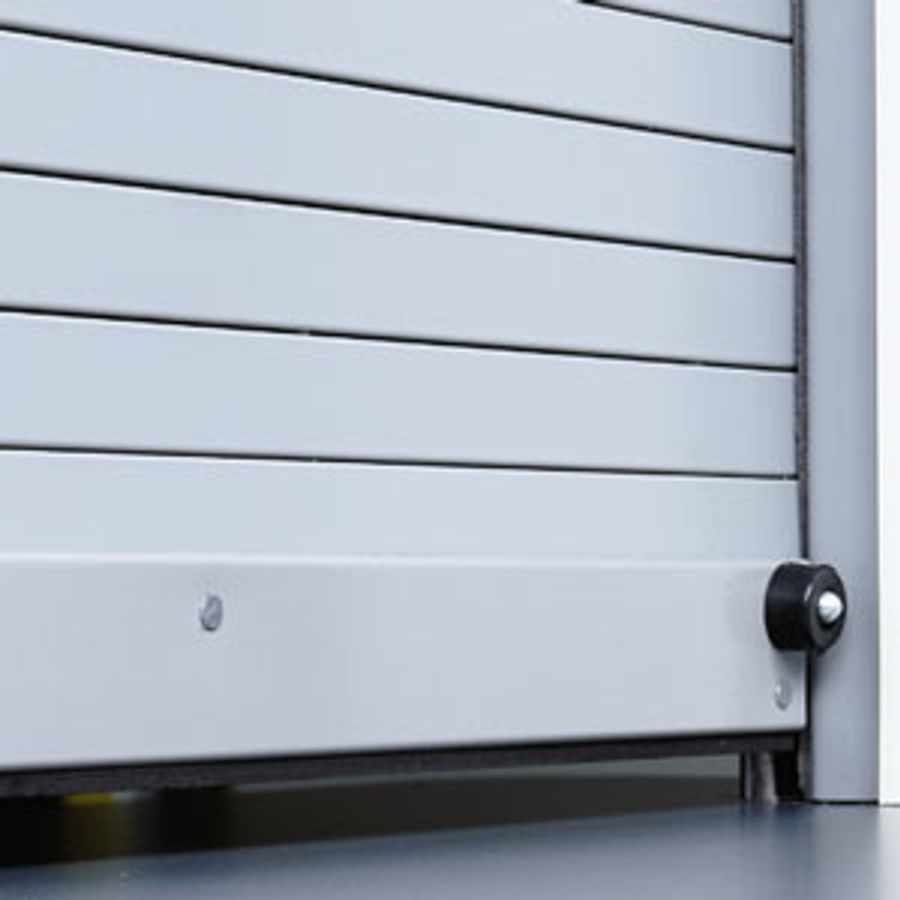

BOTTOM BAR
Curtain bottoms are constructed of steel, aluminum, or stainless steel with a foam edge to protect the sill.

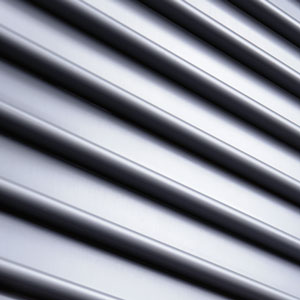

CURTAIN
All DuraShutter rolling counter shutter curtains are constructed with heavy-duty steel, stainless steel, or aluminum flat slats.
BRUSH SEALS
A brush-type guide (shown) or header seal increases energy efficiency.
CRANK OPERATION
Hand-crank operation is available on all DuraShutter counter shutters.
COUNTERBALANCE SYSTEM
A torsion-spring-operated system, enclosed in a structural steel barrel, effectively counterbalances the door for a minimum of 7,500 cycles.
LOCKS
Cylinder or thumb-turn locks help keep your building secure. Thumb-turn locks are standard on shutters with manual or crank operation.
ECLIPSE™ TUBE MOTORS
Ideal for easy and convenient operation, and concealed inside the barrel assembly, this quiet torque-rated motor runs smoothly at the touch of a button.
FRAME OPTIONS
SLIP-IN STYLE FRAME OPTION

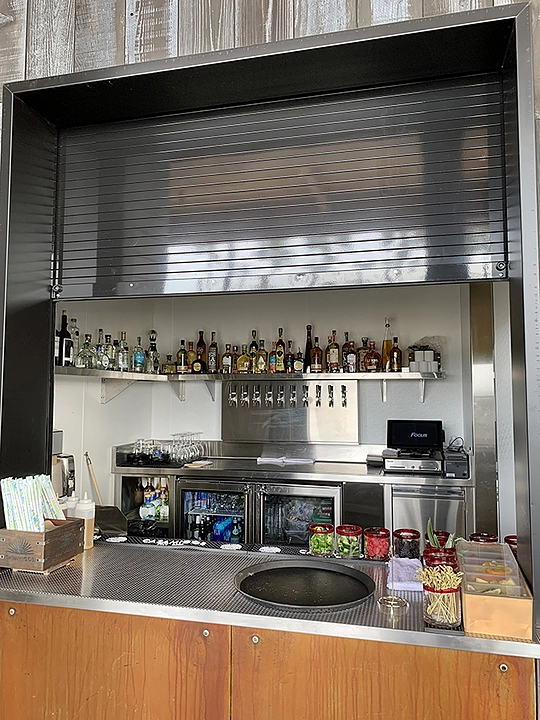

For your existing walls, the slip-in style frames are a sleek and easy solution. Integral frame counter shutters provide maximum strength and security with metal frames, shutters, and sills that are factory-assembled as a complete unit.Shown: DuraShutter in stainless steel
BUILT-IN STYLE FRAME OPTION
For masonry walls not yet constructed, built-in style frames provide a clean, finished appearance. Integral frame counter shutters provide maximum strength and security with metal frames, shutters and sills that are factory-assembled as a complete unit.
Shown: DuraShutter with optional ArmorBrite Finish.
INFORMATION
FINISHES
USE
Roller shutter
APPLIATIONS
-Interior -Exterior -Security
-Sporting -Retail -Institutional
CHARACTERISTICS
-Secure -Versatile -Durable
-Reliable
ARMORBRITE™ POWDER COAT SYSTEM
Choose your color! Nearly every Raynor rolling door component (curtain slats, bottom bars, guides, hoods, and head plates) can be powder coated in any of 188 ArmorBrite colors for an attractive appearance and exceptional durability.
SPECIFICATION DURA SHUTTER MODEL CA AND CSS
| SPEC/FORMAT | WORD | |
|---|---|---|
| Raynor Quick Spec | Microsoft Word | |
| CSI Master Format | Microsoft Word |
SPECIFICATION DURA SHUTTER MODEL CP AND CPP
| SPEC/FORMAT | WORD | |
|---|---|---|
| Raynor Quick Spec | Microsoft Word | |
| CSI Master Format | Microsoft Word |
MODEL DETAILS
| MODEL | SLAT PROFILE | SLAT MATERIAL ( THICKNESS) | SLATE SIZES | MAXIMUM SIZES | MAXIMUM SZES ( INTEGRAL FRAME OPTION) | COLOR/ FINISHES | GUIDES |
|---|---|---|---|---|---|---|---|
| CP | Flat | Steel ( 22 gauge ) | 1-1/4" x 1/2 " | 20' Width 10' Height ' ( max. 120 sq. ft) | 11'6" Width 5'6" Height 4 1/2" - 12 " Wall Thickness | White, Gray, Tan or Armor Brite TM Powder Coated | Steel |
| CPP | Perforated Flat | Steel ( 22 gauge ) | 1-1/4" x 1/2 " | 20' Width 10' Height ' ( max. 120 sq. ft) | 11'6" Width 5'6" Height 4 1/2" - 12 " Wall Thickness | White, Gray, Tan or Armor Brite TM Powder Coated | Steel |
| CA | Flat | Aluminum ( .05") | 1-1/4" x 1/2 " | 20' Width 10' Height ' ( max. 120 sq. ft) | 11'6" Width 6'6" Height 4 1/2" - 12 " Wall Thickness | Clear Anodized Bronze Aluminum | Aluminum |
| CSS | Flat | Stainless Steel ( 22 gauge) | 1-1/4" x 1/2 " | 20' Width 10' Height ' ( max. 120 sq. ft) | 11'6" Width 6'6" Height 4 1/2" - 12 " Wall Thickness | Stainless Steel #4 | Stainless Steel |
FLAT SLAT & ALUMINUM (CA)
INTERIOR FACE MOUNT (N)
| MANUAL OPERATION | MANUAL OPERATION | |
|---|---|---|
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
BETWEEN JAMB MOUNT/UNDER LINTEL (J)
| MANUAL OPERATION | DWG DRAWING | |
|---|---|---|
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
FACE-MOUNTED/UNDER LINTEL (J1)
| MANUAL OPERATION | DWG DRAWING | |
|---|---|---|
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
BETWEEN JAMB ONLY (J2)
| MANUAL OPERATION | DWG Drawing | |
|---|---|---|
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
FLAT SLAT & STAINLESS STEEL (CSS)
INTERIOR FACE MOUNT (N)
| MANUAL OPERATION | DWG DRAWING | |
|---|---|---|
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
BETWEEN JAMB MOUNT/UNDER LINTEL (J)
| MANUAL OPERATION | DWG DRAWING | |
|---|---|---|
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
FACE-MOUNTED/UNDER LINTEL (J1)
| MANUAL OPERATION | DWG DRAWING | |
|---|---|---|
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
BETWEEN JAMB ONLY (J2)
| MANUAL OPERATIO0N | DWG DRAWING | |
|---|---|---|
| Crank Operation | DWG Drawing | |
| Motor Operation | DWG Drawing |
