EBE 85 WINDOW & DOOR SYSTEM
EBE 85 WINDOW & DOOR SYSTEM
Plastic and solid, suitable for large spans with high insulation and sealing performance
The profiles of the thermal break system EBE 85 have a depth of 85 mm and can hold insulating glazing panels of up to 68 mm. The sashes and frames are overlapping on the inside and coplanar externally.
EBE 85 is part of the EBE profile series and represents Secco Sistemi’s answer to heat and sound insulation. With the innovative thermal break technology in polyamide and polyurethane, EBE attains strong structural profiles in the relevant sections.
INFORMATION
CERTIFICATION
- ISO 9001
- EN 14351-1
PROPERTIES
- Acoustic Insulation
- Thermal Insulation
APPLICATIONS
- Residential
- Commercial
USE
- Doors
- Window
CHARACTERISTICS
- Sustainability
- Choice Of Materials
- Thermal Break
- Heat And Sound Insulation
INSULATING GLAZING PANELS
Up to 68 mm
DEPTH
85 cm
MATERIAL
Insulating Glass
BRAND
Secco Sistemi
MATERIALS
EBE AF is available in 4 precious metals
DETAIL
ELEVATION

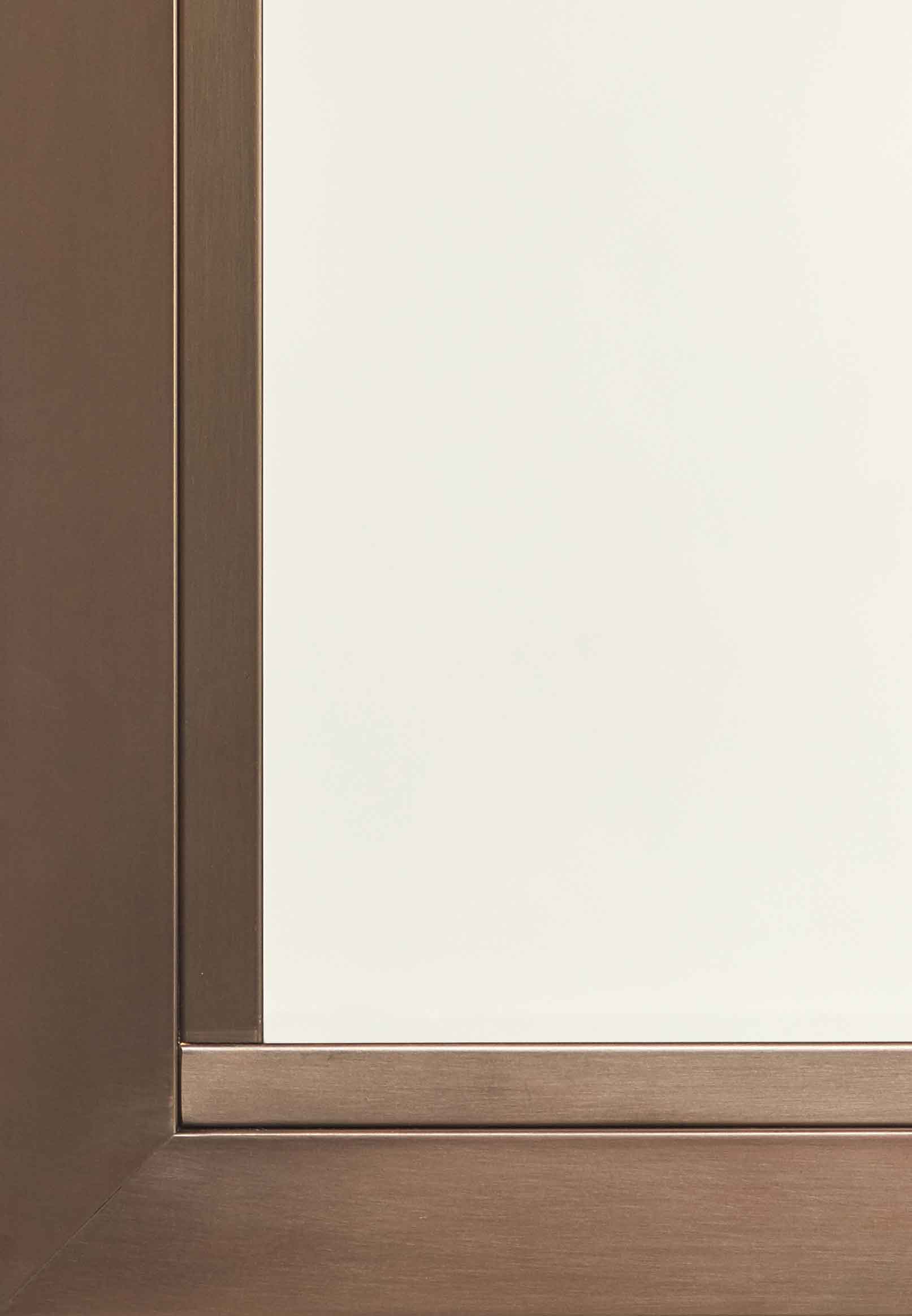

The small profiles placed in front of the glass to fix it are also design elements of the frame and are produced in the same finishes as the window.
HINGES
To better integrate into the window frame, the hinges are slender, minimal and provided in the same finishes as the frame. In tilt and turn, the hinges can be concealed
Stainless Corten Steel
Stainless Corten Steel
Stainless & Corten Steel
Stainless Steel Brass..
Stainless Steel Brass

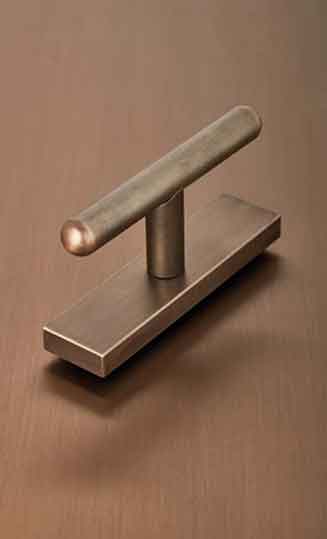

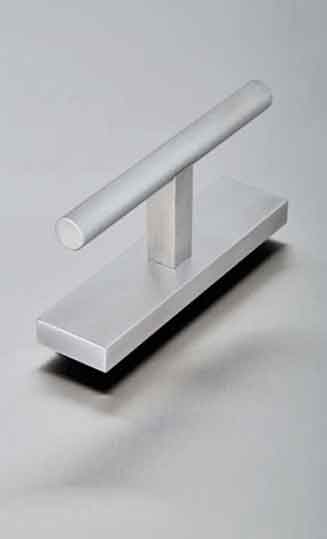

HANDLES
Discrete, geometric, minimal and in the same finishes as the frame, the handles integrate perfectly into the frame

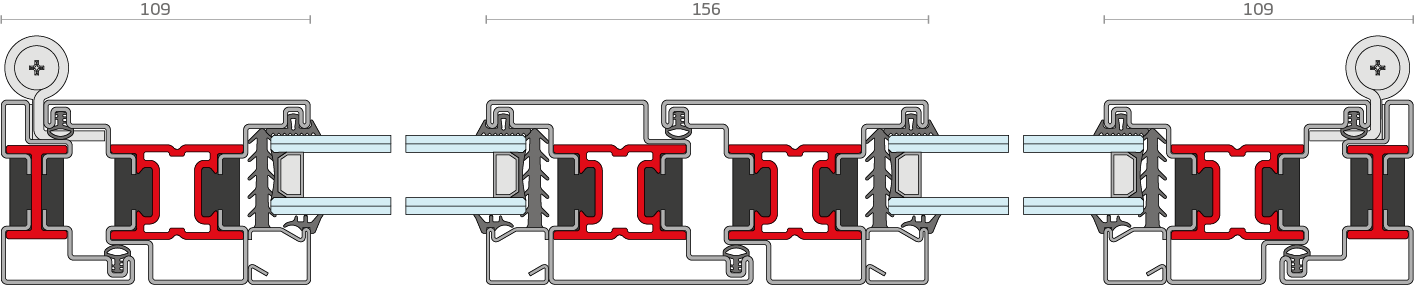

DRAWINGS
WINDOW TILT AND TURN- MAXIMUM CERTIFIED PERFORMANCE
- EN 12207 Air Permeability : 4
- EN 12208 Water Tightness : 9A
- EN 12210 Wind Load Resistance : C5
- EN 717-1 Acoustic Performance : 47 Db
- EN 12567-1 Thermal Transmittance : 1,47 W/m2k
- EN 1627 Burglar Resistance : RC 3
DOOR INWARD OPENING - MAXIMUM CERTIFIED PERFORMANCE
- EN 12207 Air Permeability : 3
- EN 12208 Water Tightness : 2A
- EN 12210 Wind Load Resistance : C4
- EN 717-1 Acoustic Performance : 42 dP
- EN 12567-1 Thermal Transmittance : 1.55 W/m2k
- EN 1627 Burglar Resistance : RC 3
DOOR OUTWARD OPENING - MAXIMUM CERTIFIED PERFORMANCE
- EN 12207 Air Permeability : 3
- EN 12208 Water Tightness : 2A
- EN 12210 Wind Load Resistance : C4
- EN 1627 Burglar Resistance : RC 3
DOOR LIFT AND SLIDE - MAXIMUM CERTIFIED PERFORMANCE
- EN 12207 Air Permeability : 4
- EN 12208 Water Tightness : 8A
- EN 12210 Wind Load Resistance : C3
- EN 717-1 Acoustic Performance : 43 dP
- EN 12567-1 Thermal Transmittance : 1.12 W/m2k
- EN 1627 Burglar Resistance : RC 2
