Western Window Systems Series 600 Multi-Slide Door
SERIES 600 MULTI-SLIDE DOOR
SERIES 600 MULTI-SLIDE DOOR

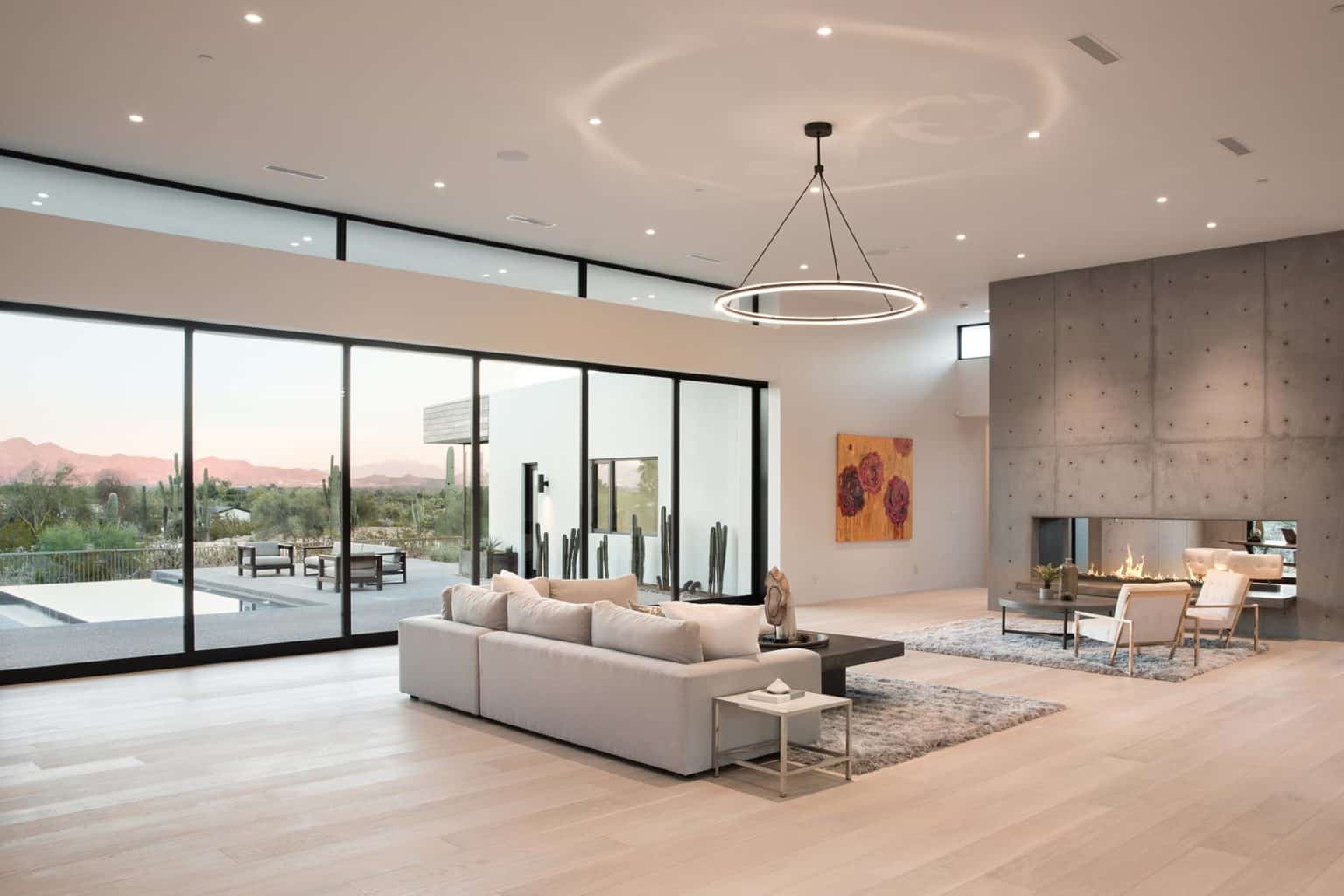

Western Window Systems’ Series 600 Multi-Slide Door is packed with features that let you take any project to the next level.
Its wide panels, modern details, smooth operation, and multiple sill height options blend easily into nearly any space. And with panels up to 12 feet tall (maximum 70 square feet), your indoor-outdoor living ideas can be larger than life.
features
DESIGN

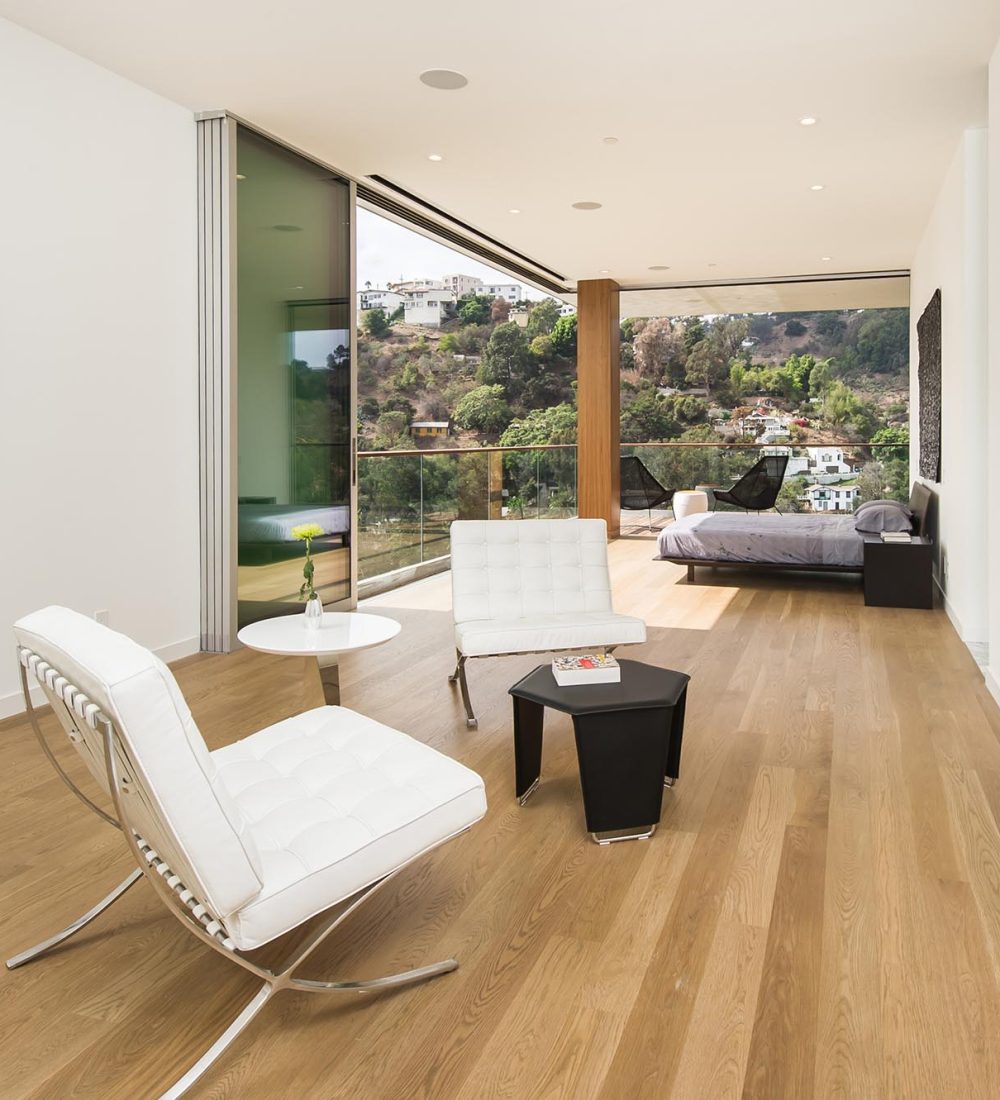

Slim interlocks, crisp lines, and massive sizes make the Series 600 Multi-Slide Door a sight to behold. With a vast range of configuration options like stacking, pocketing, meeting, bi-parting, and 90-degree, it can be easily customized to your functional and aesthetic preferences.
THE DOOR THAT’S A WINDOW TOO
Featuring the same rolling glass panels that stack or slide into pockets as our multi-slide door, the Series 600 Multi-Slide Window is a head-turning alternative to a standard opening. Perfect for large, long areas where people congregate.
OPERATION
Sealed stainless-steel ball bearing rollers make the Series 600 Multi-Slide Door easy to operate. An interlocking track design provides structural integrity and makes it possible to span wide openings with almost any number of panels. Rolling hardware is AAMA certified and includes two options — a standard 1.81″ size and a 3″ Monster Roller capable of handling more than twice the weight of the largest panel.
INFORMATION
OPTIONS
Multiple sill height options
USE
External windows
CERTIFICATIONS
Performance grade: CW-PG50
MATERIAL
-Classic Broken Aluminum -Thermally Broken Aluminum
CHARACTERISTICS
-Features for improved energy performance -Low-maintenance -Can be matched to other products from the same company -Customizable options
DOWNLOADS
↓ CAD Details
↓ Data Sheet
↓ Specifications
OTHER INFORMATION
-Expansive opening sizes -Narrow 2.55″ sightlines at interlocks
-Concealed locking system -Heavy-duty hardware -Completely customizable
APPLICATIONS
- Window systems for residential
- Commercial
- Corporate
- Hospitality
HARDWARE
The frame’s rollers are AAMA-certified and include a standard 1.81” size. Our optional 3” Monster Roller is capable of handling more than twice the weight of the largest panel. A hidden stainless steel multi-point lock secures the sliding panels.
MAINTENANCE
Low maintenance
DOOR
Multi-Stage Door
ENERGY EFFICIENCY
A .36 U-value for standard low-E, argon-filled dual-pane glass from Cardinal IG gives the door premium energy efficiency. It is compliant with California’s rigorous Title 24 requirements and can be customized in a variety of panelcounts, configurations, and wall depths. Thealuminum frame and panels are thermally broken to reduce heat and cold transfer. NFRC labeling is included to comply with energy code requirements.
FINISHES
Aluminum finishes for the Series 600 Multi-Slide Door are available in-stock or as designer selections and can be customized to match nearly any color. Samples shown are representative only.
DESIGNER FINISHES
Our designer colors are based upon popular paint choices in the home building industry and include a high-quality paint finish that conforms to a minimum rating of AAMA-2605, currently the highest rating for organic finishes.
CUSTOM FINISHES
-White -Ginnamon Toast -Hillside Bronze -Briar -Autumn Night -Bison Beige -Warmtone -Stonish Beige -Navagjo White
IN-STOCK FINISHES
Class 1 coating thickness for increased smoothness and durability
- In Stock Finish Bronze Anadized
- In Stock Finish Satin Anadized
Sill Options
WATER BARRIER SILL
Designed for effectiveness in all climates, the water barrier sill’s 1.5″ interior leg and weep-hole system safeguards against water intrusion. For additional protection, the back leg of each sliding panel penetrates the track to help keep out dust and debris.
FLUSH SILL
When ease of entry is more important than performance against the elements, our flush sill is the perfect choice. With an interior and exterior sill height of just 0.75″, it lines up with most interior flooring for a smooth transition to the outside. Weep holes in the track allow water to drain away from the door while the back leg of each sliding panel keeps out dust and debris by penetrating the track. Not warrantied against water penetration.
THINLINE SILL
The ability of our signature thinline sill to disappear almost completely makes it ideal for projects where a continuation of flooring from the inside to the outside needs to appear virtually seamless. Staggered tracks expose a slim channel on which the panels roll with the finished flooring installed between them. Not warrantied against water penetration.
HANDLES AND LOCKING
PREMIUM HANDLE
Our premium handle features a minimal one-piece design, comfortable grip, and the option of keyed actuator lock that allows the door to be unlocked from the exterior. Available in brushed nickel or black. Not available on pocketing multi-slide door systems, angled doors, or with lead screens.
CONCEALED LOCKING SYSTEM
The Series 600 Multi-Slide Door includes a hidden stainless-steel multi-point lock to secure its large sliding panels, providing additional strength and protection. Handles come with a keyed actuator lock.
CONTEMPORARY HANDLE
The handle features a minimal one-piece design, comfortable grip, and optional keyed cylinder. Finish choices are available in brushed nickel or black.
FLUSH-MOUNTED HANDLE
The flush-mounted handle’s clean and narrow design allows panels to easily slide past each other or into a pocket. Available in brushed nickel or black.
