SOLID WOOD LINEAR CEILINGS
SOLID WOOD LINEAR CEILINGS

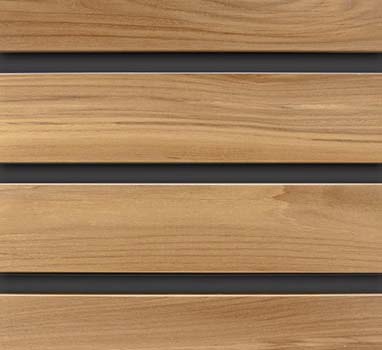

The linear solid wood ceiling system is a wood solution in it's most natural form.
A wide range of wood species are available, all with their own characteristics. Various panel widths can be combined creating a unique look. The system is easy to install and allows the ceiling to be demountable and have access to the plenum.
BRING NATURE IN
Solid wood is a sustainable and 100% natural building material, which is more and more popular among designers. Wood, in any form, creates a sense of warmth within a space. Each wood specie has its own structure, characteristics and authentic touches such as growth patterns, knots and colour variations.
INFORMATION
FIRE RETARDANT
Up to class B-s2,d0, B-s1,do upon request
ACOUSTIC
Up to αw 0.30 - 0.50
PANEL THICKNESS
15 mm
PANEL WIDTHS
63 - 184 mm
WEIGHT
5.0 - 15.0 kg/m²
JOINT WIDTH
Various possibilities
MINIMUM LENGTH
900 mm
INTEGRAL GUARANTEE
-For Support Systems
-Wood And Finish
MATERIAL
Variety of 15+ wood species, FSC or PEFC certified
THREE CEILING SOLUTIONS
- Linear Open
- Multi-panel & Linear Closed
- Fixed or 50% demountable
MAXIMUM SPAN
| Linear panel | Module (A) | Joint (B) | Thickness (C) | Panel width (D) |
|---|---|---|---|---|
| Module 111 mm | 111 mm | 19 mm | 15 mm | 92 mm |
| Module 135 mm | 135 mm | 19 mm | 15 mm | 116 mm |
DOWNLOADS
↓ Brochure Solid wood ceilings & walls
↓ Commercial Ceilings & Walls Product Guide 2022/2023
↓ Technical Leaflet Solid Wood Linear Ceiling
↓ Installation Instructions Wood Linear
APPLICATION
The Solid Wood Linear ceilings and walls are suitable for all building sectors: Corporate, Transport (airports, metro-, bus -, train stations), Retail, Leisure, Public spaces, Hospitality, Healthcare, Education or Residential.
ACOUSTICS - AW
The table shows the test results for Solid Wood Linear panels:
- Wood specie : Pine
- Soundtex : 0.2 mm
- 92 mm width, 15 mm thickness, 19 mm joint
- Test method : ISO 354:1985/Amd.1:1997 (EN 20354:1993), ISO 11654:1997, ASTM-C423-90a
SYSTEM CHARACTERISTICS
A perfect fit at site is guaranteed, as the panels are made-to-measure. This avoids any cutting at site, reducing the installation costs and maintaining the beautiful details of the wooden panels. The Solid Wood Linear ceiling and wall system are developed in such a way to maximize the efficiency and minimize installation costs. The specially developed suspension system consists of pre-fixed clips, which are easily put together in the carriers. Light fixtures, vents or speakers can be easily fixed into the ceiling.
PERFORMANCE
On the backside of the panels a non woven acoustic fleece is placed to increase the acoustic performance of the ceiling. The acoustic comfort in an office space, school or public building contributes to our well-being as good acoustic comfort can positively affect health, communication, safety, productivity and learning. Using Hunter Douglas high performance acoustical ceiling products are the best solution to deliver outstanding acoustic performance, comfort and an aesthetic pleasing solution. With the Solid Wood Linear system absorption Alpha w values between 0.55 and 0.85 can be obtained, depending on panel and joint widths.
WHY SOLID WOOD LINEAR?
When using Solid Wood Linear systems you are creating an environmentally friendly and durable building with an authentic feelWood is a natural product that is alive, it breaths and with its own characteristics is suitable for wide range of design solutions. Also, wood is the only building material that is 100% CO2 neutral, and is totally recyclable..The advantage of the system is that it is a made-to-measure solution, meaning no cutting adjustments are required at site, significantly reducing the installation time and cost. Any design is possible as the panel and gap size is fully customizable.
GENERAL CHARACTERISTICS
- A made-to-measure solution, minimizing installation time and site adjustments.
- Projects are technically supported and developed, providing a perfect fit at site.
- Acoustic performance up to alpha w 0.70 (without optional rock wool).
- Reaction to fire classification B-s2,d0 according to EN 13501-1 (higher classification upon request).
- An all-natural and sustainable wooden ceiling or wall solution with FSC/PEFC certification.
- Curved solutions possible by using a special carrier or CNC cutting.
- Cradle to Cradle Certified™ Silver (Cradle to Cradle Certified™ is a certification mark licensed by the Cradle to Cradle Products Innovation Institute).
WOOD SPECIES
Our range of wood exceeds 20 different species, with their own unique characteristics. The wooden slats may have a planed, fine-sawn and rough-sawn surface finish.
The wooden panels are finished as standard with high-quality varnish to protect the wood against moisture, dust and dirt.
SOLUTIONS
CEILING SOLUTION
The Solid Wood Linear ceiling system consists of solid wooden panels with pre-fixed clips, which allows them to be easily fixed onto the carrier. The wooden panels are supplied in various or fixed lengths and are connected with a tongue and groove connection to create a seamless joint.
- Three demountable solutions; Linear Open, Closed & Multi-panel
- Quick installation with pre-assembled clips
- Curved and undulating shapes possible
- Panel widths from 75mm up to 180mm
- Combine various panel widths with the Multi-panel system
WALL SOLUTION
The Solid Wood Linear wall system is developed to create a natural, made-to-measure wall solution. The aluminium SLR profile, together with the pre-assembled clips guarantee easy installation in a horizontal or vertical direction.
- Take the ceiling to the wall, in a horizontal or vertical direction
- Combine various panel widths into one system
- Quick installation with pre-assembled clips
- Curved wall solutions also possible
