Fusion Perforated or Non-Perforated Ceiling & Wall Panels
FUSION PERFORATED OR NON-PERFORATED CEILING & WALL PANELS
Fusion acoustic ceiling and wall panels feature wood veneer face, either in flat panels or with a variety of perforation options. Standard perforations are available in 4mm, 6mm, and 8mm diameter holes spaced 16mm or 32mm on center in both square and diamond patterns.
Custom diameter, spacing, and patterns are available, as well as slotted designs. For projects requiring sound absorption, acoustical backer may be installed above Fusion ceiling or behind Fusion wall panels.
INFORMATION
BRAND
ASI Architectural
PRODUCTION
Made In USA
FORMATS
Panels
DOWNLOAD
↓ Data Sheet
FINISHES
Clear lacquer top coat or stained to match
APPEARANCE
- Touch-up finish available for field application
- Standard perforations in 4mm, 6mm, and 8mm diameter
- Slotted and custom perforations available
- May contribute LEED® projects
MATERIALS
Wood-based panels
USE
Interior walls and ceilings
FINISHES
Clear lacquer top coat or stained to match
AVAILABLE
Available in wood veneer in the species shown below*
AVAILABILITY
Available in wood veneer in the species shown below*
SAMPLE DRAWINGS
Fusion Sample Shop Drawing
Set
APPLICATIONS
- Residential
- Corporate
- Commercial
CHARACTERISTICS
- Rigid
- Lightweight
- Impact resistant
- Various finish options
- Acoustically absorptive
CORE
Available core materials are : Class A Fire Rated Particle Board, Class A Fire Rated MDF
PERFORATION SPACING
16mm and 32mm O.C., typical square or diamond pattern, or slotted patterns
CERTIFICATIONS
Fire Rating: Class A, may contribute to LEED® credits
ACOUSTICAL ABSORPTION
- Soundtex applied to back of perforated panels for acoustical absorption
- Optional features for sound control: Acoustical backer available in 1″ and 2″
- Acoustically absorptive when perforated – NRC varies based on the hole pattern
PANEL
Panel For ceilings and walls
- Attaches to HD 15/16” T-bar grid with clips for 100% accessibility
- Panels are custom programmed to have a uniform margin around the perimeter of the panel
- Custom sizes available to fit irregular installations
FEATURES
- Flat panels
- Perforated or slotted
- May contribute to LEED® projects
- High-pressure laminate face optional Perimeter trim available (MDF core only) FSC available
SIZES
- Thickness 3/4″ 2′ x 2′, 2 x 4′, 2′ x 6′, 2′ x 8′
- Available in custom sizes up to 4′ x 8′
TEGULAR LAY IN
Lays in to hd 15/16” t-bar grid for 100% accessibility
LAY IN
Lays in to HD 15/16” T-bar grid for 100% accessibility
ACOUSTICAL ABSORPTION
- Naturally reflects & scatters sound
- Acoustically absorptive when perforated-NRC varies based on the hole pattern
- Optional features for sound control : Acoustical backer available in 1″ and 2″ thicknesses
WOOD FINISHES
-Ash -Walnut -Maple -Beech -Red Oak -White Oak -Hickory -Cherry -Natural Bamboo -Caramelized Bamboo

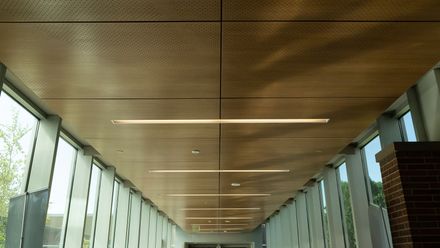

gallery
