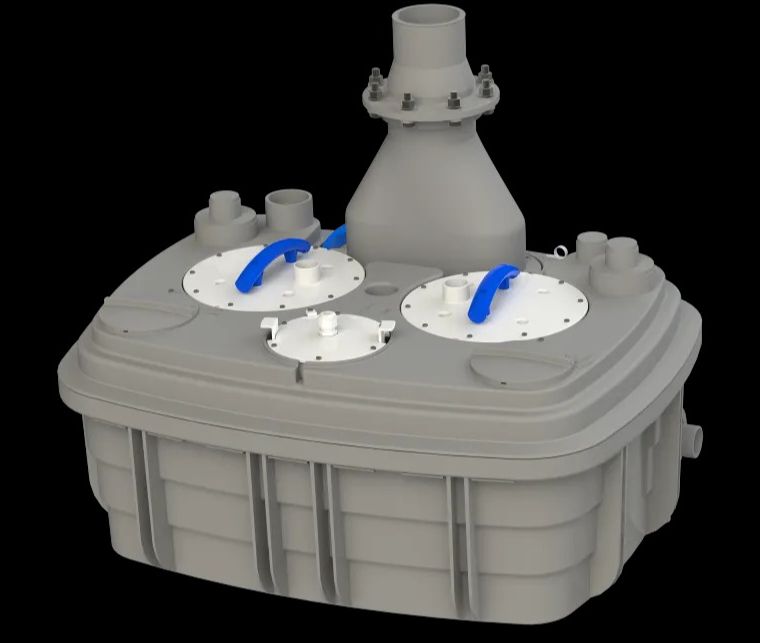

Saniflo Sanicubic 2 VX
SANICUBIC 2 VX
SANICUBIC 2 VX
The Sanicubic 2 VX is ideal for residential buildings, commercial buildings, restaurants, schools, hotels, shopping centres. It is easy to install as it stands on the floor and does not need to be positioned below ground.
- 2 motors for more intensive use
- Numerous inlets available
- Standard equipment
Sanicubic 2 VX is a powerful lifting station used for demanding commercial situations.
It features twin 2000w motors, vortex blade-less pumping technology which is well suited for public applications where usage is uncontrolled.
The Sanicubic 2 VX is the ideal lifting solution for lifting black water from shops, residential areas or apartments.
It benefits from a high-performance and viable system of 2 single-phase or three-phase vortex pumps operating alternately or simultaneously when an alarm is triggered.
This lifting station can lift the tops of toilets, as well as a bathroom, kitchen or laundry room up to 17m vertically and has a visual and audible alarm as well as a remote SMART box for monitoring, controlling and regulating the useful volume. Finally, the station is equipped with an activated carbon filter that eliminates unpleasant odours.
information
BRAND
Saniflo
IP RATING
IP68
IMPELLER
PPO GF
VOLTAGE
230 V
POWER CONSUMPTION P1
2000 W
TYPE OF CONTROL BOX
Classic
TANK
PP GF
PUMP HOUSING
PA 12 GF
MOTOR HOUSING
PA 12 GF
FREQUENCY
50-60 Hz
POWER OUTPUT P2
1400 W
POWER OUTPUT P2
1400 W
MAXIMUM FLOW RATE
40 m³/h
MAX. INCOMING TEMPERATURE
70 °C (5 mins)
TYPE OF ACTIVATION
Pneumatic
MODE OF OPERATION
S3 30%
MAX. HEAD (Q0)
13 m
GROSS WEIGHT
101 kg
BARCODE
3308815063140
APPLICATIONS
- Commercial
- Public buildings
TOTAL VOLUME
120 L
USEABLE VOLUME
26 L
EXT. VENTILATION DIAMETER
75 mm
ON/OFF LEVEL
165/95 mm
ALARM LEVEL
235 mm
EXTERNAL INLET DIAMETER
40, 50, 100, 110, 125 mm
CHARACTERISTICS
Dual motor, easy servicing & maintenance, easy to install, standard equipment, alarms for safety
