Gutmann Mira Contour Inowa Sliding Element
MIRA CONTOUR INOWA SLIDING ELEMENT
MIRA CONTOUR INOWA SLIDING ELEMENT

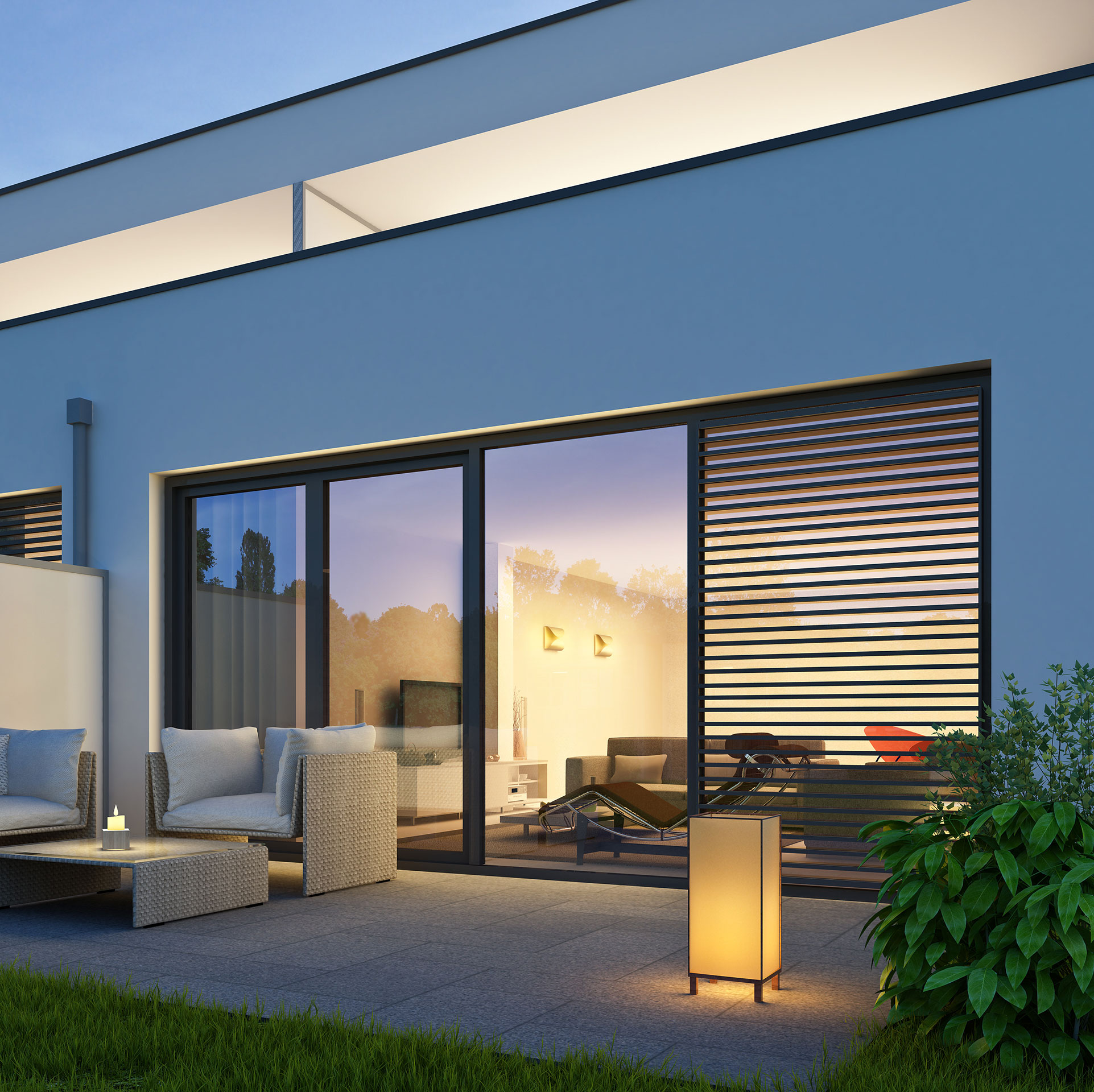

Sliding elements are a global trend. They let light into residential or business premises, allow free transition between inside and outside areas and save space at the same time. The ROTO Patio Inowa fitting sets new standards when it comes to tightness thanks to allround seals and active sealing points in the mullion.
This makes it ideal for applications with high wind loads. The GUTMANN MIRA contour, combined with the concealed fitting technology, facilitates modern designs through straight and narrow profiles and room-high glazing, thus providing the largest possible glass surface. Roto Patio Inowa represents smart sliding.
It is completely mounted on roller bearings, making it easy to move the sahes – without unpleasant sliding noises. Its innovative functionality applies high contact pressure across the frame profile, making it easy to lock with minimal effort.
INFORMATION
OPERATING FORCES
1
WATER TIGHTNESS
9A
AIR PERMEABILITY
4
WIND LOAD
C2/B3
WOOD THICKNESS
78 mm
USE
Sliding window
WINDOW TYPE
Sliding
MATERIAL
Glass
PRODUCTION
Made in Germany
GLASS SPACER
Thermix TX.N plus
WOOD SPECIES
Spruce

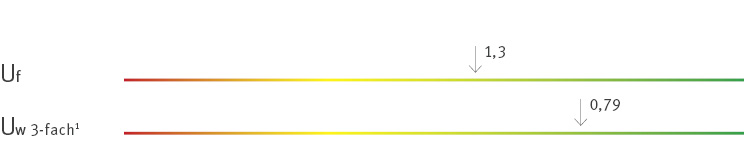

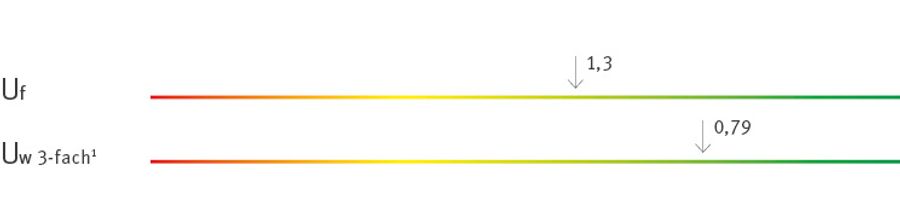

THERMAL INSULATION
CHARACTERISTICS
- Strong sealing points
- Water and air tight
TEST SAMPLES
-Parallel opening sliding window door (3,500 mm x 2,662 mm)
-Scheme A
ELEMENT SIZE
3,500 x 2,662 mm
UG VALUE
0.6 W/m2K

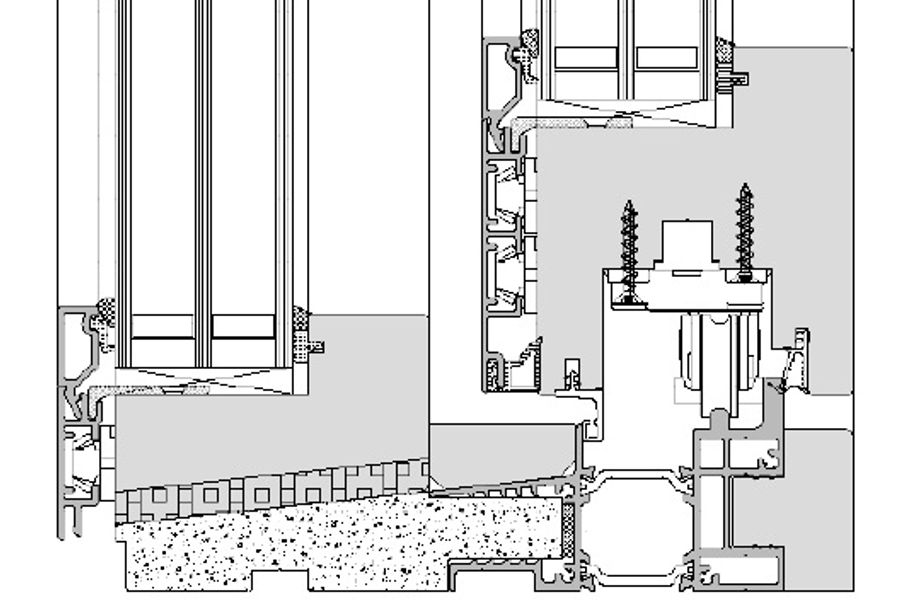

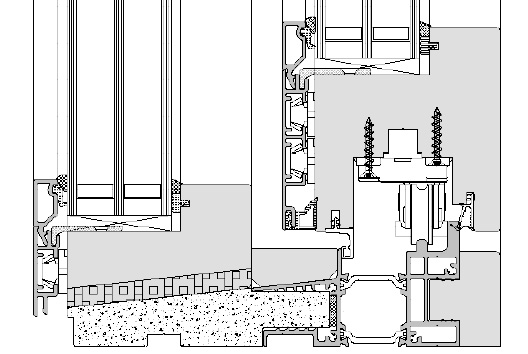

CROSS SECTION
APPLICATIONS
- Residential
- Commercial
- High Wind Environments
