ARBAT EXPANDED METAL
ARBAT EXPANDED METAL

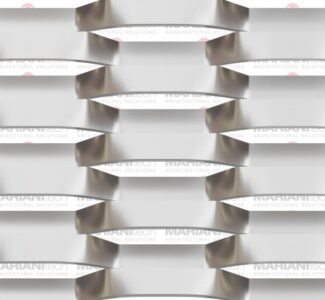

Arbat is an expanded metal with a large hexagonal mesh. It is perfect for covering the facades of large residential, industrial and commercial buildings, to which it guarantees good transparency without limiting visibility.
INFORMATION
DOWNLOADS
ā Technical Sheet
ā Catalogue
USE
Fences
PRODUCTION
Made in Italy
PROPERTIES
- Solar control
- Stainless
- Rust proof
CHARACTERISTICS
- Durable
- Customizable
- Expanded mesh from different metals
- Suitable for metal-working processes
- Available in unlimited color variations
- Can be surface treated including color anodizing and hot-dip galvanizing
APPLICATIONS
- Residential
- Commercial
- Industrial
- Urban
MATERIAL
- Aluminium
- Mild Steel
- Galvanized Steel
- Stainless Steel
TECHNICAL FEATURES
| MAGLIA MESH DL LWD [MM] | THICKNESS [MM] | TOTAL THICKNESS [MM] | DIMENSION HMAX [MM] | WEIGHT (ALUMINIUM)[KG/M2] | WEIGHT (MILD STEEL)[KG/M2] | FRONT OPEN AREA[%] | MAX OPEN AREA[%] |
|---|---|---|---|---|---|---|---|
| 135 | 1.5 | ~ 15 | 2500 | 3.7 | 10.8 | 15 | 62 |
| 135 | 2 | ~ 15 | 2500 | 4.9 | 14.4 | 15 | 62 |
| 135 | 3 | ~ 15 | 2500 | 7.4 | 21.6 | 15 | 62 |
FIXING SYSTEMS
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
MOUNTING SYSTEM
DIRECT MOUNTING SYSTEM
Self-supporting structure with direct wall fixing.

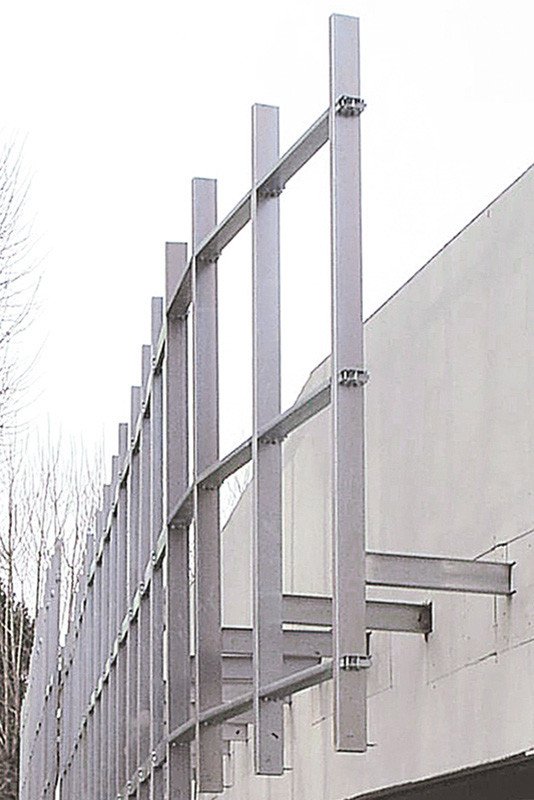

SPACED MOUNTING SYSTEM
Self-supporting structure with precise fixing spaced out from the wall.
WING MOUNTING SYSTEM
Independent self-supporting structure. (wing)
