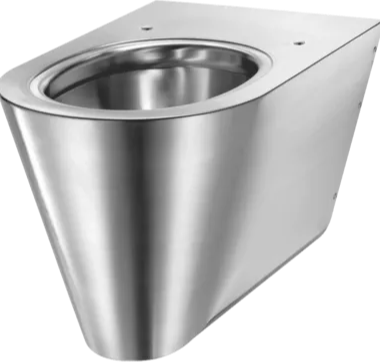

Delabie Wall-hung S21 S WC pan
WALL-HUNG S21 S WC PAN
WALL-HUNG S21 S WC PAN
Compatible with all standard frame systems available on the market.
Elegant and simple design. Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
INFORMATION
BRAND
Delabie
REFFERENCE NO
110310
PAN
Shrouded pan
USE
Toilet pans
ADVANTAGES
- Polished bowl surface
- Elegant and simple design
OUTLET
Horizontal waste outlet: Ø 100mm.
BACTERIOSTATIC
Bacteriostatic 304 Stainless Steel.
WEIGHT
11kg
WARRANTY
10-year warranty
INLET
Horizontal water inlet: Ø 55mm.
WALL-HUNG
WC pan, 360 x 350 x 535mm.
WATER SAVING
Works with 4L or more of water
DESIGN
Elegant and simple design
FRAME
Quick and easy to install from the front thanks to a stainless steel mounting frame.
SUPPLIED
Supplied with fixing plate and 6 theft prevention TORX security screws.CE marked. Complies with European standard EN 997 for 4L flush.
FINISH
304 polished satin stainless steel
CLEAN
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
SUFACE
WC bowl surface is polished with rounded edges for easy cleaning.
APPLICATIONS
Public toilets, hospitals, canteens
DOWNLOADS
↓ Data Sheet
DIMENSIONS
- Height : 350mm
- Length : 535mm
- Width : 360mm
- Thickness : 1.5mm
CERTIFICATION
Complies with European standard EN 997 for 4L flush
CHARACTERISTICS
-Durable -Hygienic -Wall-mounted -Floor-standing
-Variety Of Technologies Available
RIM
Concealed perimetral flushing rim.
