Linvisibile Infinito 5 Vertical Pivot Door
INFINITO 5 VERTICAL PIVOT DOOR
INFINITO 5 VERTICAL PIVOT DOOR BREZZA
Infinito 5 Vertical Pivot door swivels open on a vertical axis, thanks to a sophisticated hidden pivot system. Available with or without stop, the door can rotate on itself up to 360° opening, obtaining a very exciting movement effect.
The innovative Infinito system allows to apply diverse decorative finishes over the panel surfaces, thanks to an aluminium outer frame system which hosts the preselected coating. The variety of finishes that can be applied to the Infinito vertical pivot extends to any material with a maximum thickness of 3 mm.
Furthermore, the versatility of this product also offers the opportunity to apply different finishes on both sides of the leaf and to personalise the colour of the outer frame in matte lacquer compatible with the coatings selected or anodised in different colours.
technical features
FRAME
An extruded aluminum frame Push or Pull versions (EN AW 6060 alloy Anticorodal 063), assembled ready to house bolts and locks, able to adapt to walls and plasterboard of different thicknesses;
PANLES
-Panel 50 mm thick, consisting of: -internal structure consisting of honeycomb panels; -Perimeter frame in extruded oxidized natural aluminium applied along the perimeter to the panel with a square angles fixing system; -liner of the pre-selected coating material, 3 mm (laminate, fiberglass, methacrylate) or 4 mm thick (glass / mirror), applied over the panel sides. Available in the following finishes: laminate, Alcantara®, glass, mirror, microcement and gres porcelain; -Concealed rotating pivots, which can be positioned at a minimum distance of 100 mm from the jamb to a maximum point at the centre of the panel for the model with stop, or for the model without stop, from a minimum of 250 mm from the jamb to the centre of the panel.
INFORMATION
BRAND
Linvisibile
USE
Interior pivot doors, wardrobes, panels
COLORS
Silver, black, petroleum, dark brown, light and dark bronze
APPLICATIONS
Residential, Retail, Contract Installations
CHARACTERISTICS
Hidden pivot system, 360° rotation, aluminum outer frame, choice of finishes
SIZES
- Width : from 700 to 1400 mm
- Height : from 1900 to 3500 mm
TECHNICAL DETAILS
-Possibility to apply a lock; -Possibility to apply a high-performance door closer with speed regulation; -Template kit supplied to drill the hole in the floor.
DIMENSIONS AND PERSONALIZATIONS
Since it can be made to measure, Infinito 5 Vertical Pivot door is perfect for both residential and contract installations. Ideal for internal doors, wardrobe booths, maxi panels, fitted walls, and large doors, available in single leaf model. In the single leaf version, depending on the selected finish, it can be made to measure 1400 m x 3500 mm H.
SHAPES AND OPENINGS
Leaf
Right
Left

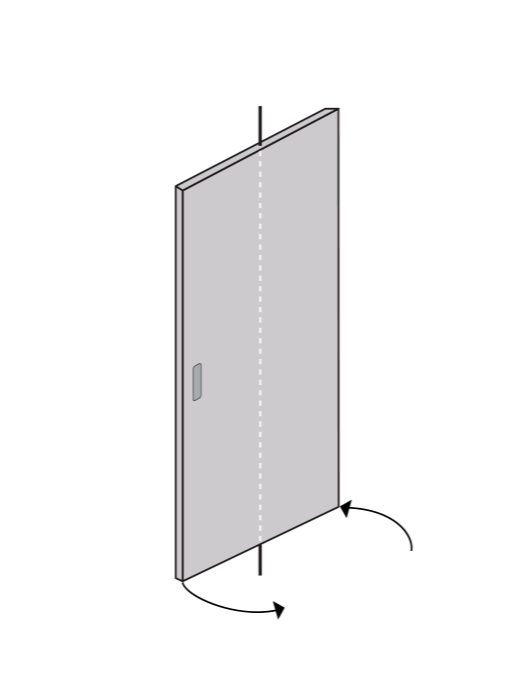

360
FINISHES
GLASS
Elegant and bright with a matt or glossy effect. The rear-lacquered glasses are not clear, but allow obtaining different reflections and colors. It is characterized by the overlapping of two slabs within which a lacquered layer that can be ordered in any available RAL colours is sandwiched. It is particularly suitable for partitioning spaces requiring more privacy.
CERAMIC
It is a product characterized by eclecticism and versatility, with multiple applications in traditional and out-of-the-box architecture, furnishing and design. Linvisibile has chosen the ceramics of leading companies in the production of ceramic slabs, whose creations can combine large sizes and lightness with great sturdiness.
Sophisticated processing technologies guarantee the inalterability of the characteristics and chromatic properties of the slabs, which remain unchanged over time, even if exposed to the elements.
HEAVY COATINGS
The “Heavy Coatings” system can only be applied to 102 mm thick doors. The system consists of the preparation of panels assembled with an aluminium perimeter profile that acts as a “frame” for the application of coatings with considerable thickness and weight, such as marble, natural stone, granites, mosaic.
FABRIC
An inimitable material that enhances the beauty of the panels, yielding an extraordinary tactile experience. Manufactured with cutting-edge technological processes, the fabric guarantees unique aesthetic, technical and sensorial performances. Fabric offers at once elegant and refined yet light, sturdy and durable solutions. For this finish, we have entrusted Alcantara®, which embodies the new paradigm of contemporary lifestyle sought after by those who look for functionality and the emotion of beauty, while also respecting ethics and the environment.
LEATHER
Natural product with high durability and precious aesthetic characteristics. A prestigious choice to cover surfaces with original textures that yield tactile sensations, strength and elegance. A material synonymous with Made-in-Italy excellence in a product that guarantees maximum customisation and meticulous attention to every detail.
ANODISATION
The anodized aluminum frame is available in four standard fine-grained brushed colors, with a choice of warm and cool shades. Other coarse brushed or matt polished colors are available upon request. This treatment, by which the metal surface is coated with a protective oxide layer, protects the frame from corrosion, also giving it unique aesthetic properties.
LAMINATE
A new generation of smart materials for the typical vertical and horizontal applications found in interior design. The laminates we have chosen for our products have unique features.
Thanks to the innovative processing they undergo, they are moulded with fingerprint-proof surfaces, soft to the touch, matt and extremely resistant, so as to withstand bumps and scratches, as well as any possible damage from solvents and reagents typically used in household cleaning products. For the laminated finish, we relied on the collections by three cutting-edge brands, such as Fenix®, Homapal® and Formica®, which offer maximum quality and a wide range of colours.
SPECIAL GLASS
The glass panels take on new features when undergoing satin finishing and chemical etching. The glass is available in a wide range of shades and can be further enhanced with the application of mesh and texture engravings that permit obtaining customized materials and products. A decorative solution that enhances with unique textures, reflections and colours.
MICROCEMENT
The panel with MDF base is prepared in a lowered position to accommodate the application of micro-cements (not supplied) of up to 8/10 mm thick, so as to allow precise shaving bordered by the outer frame. This makes it possible to compensate for any curving effects due to the dynamics inherent to the material. Two types of micro-cements can be applied: “thick” (with laminate linings of 9 mm) or “thin” (with MDF linings of 2.3 mm). Maximum applicable weight 40 kg.
MIRROR
Mirrors are obtained from a glass manufacturing process which yields the traditional reflective characteristic. Mirrors are valuable elements that dded to interiors give the optical illusion of larger and more radiant spaces.
