ZEFIRO SYSTEM
ZEFIRO SYSTEM
Linvisibile’s Zefiro system comprises vertical side-by-side pivot leaves, which are light and easy to handle, and suitable to segregate settings that do not require absolute intimacy.
The leaves rotate on a central pivot that allows a 360° rotation, are installed in-line and can be made in floor-to-ceiling or a predefined height. The leaves are also fitted with magnets that allow them to perfectly align with each other in the rest position.
The modularity of the system allows great design freedom, both in terms of the number of leaves and the finishes applicable to them.
The number of leaves is selected on the basis of the size of the space to compartmentalize; likewise, it is possible to choose whether to apply different finishes on each panel or to create a pattern of asymmetrical leaves.
In addition to the classic configuration with fixed pivoting leaves, the Zefiro System is also available in the FLY version, which makes it possible to rotate the leaves as well as to slide each single leaf or the entire system.
In sliding mode, the leaves can be close to one another and “pack” completely on the desired side, thus allowing unencumbered transit through the spaces.
This new version of the room separation system completes its transformation process born of the idea of reinterpreting old-fashion room dividers in a contemporary key.
The Zefiro System thus becomes a real separator that divides spaces and brings them together again whenever desired.
INFORMATION
DIMENSIONS AND PERSONALIZATIONS
Both versions of the Zefiro System, whether fixed pivoting or movable with track, are available in the multi-leaf composition with the following dimensions :
- Width : 300, 400 and 500 mm
– Heigh : from 1900 mm to 3500 mm
PECULIAR TECHNICAL DETAILS
- Possibility of fretwork finishes with pass-through motifs (subject to evaluation by the Technical Office)
- Available in masonry or plasterboard version
- Grazing: 10 mm upper, 9 mm lower, 10 mm between leaves, 5 mm with respect to the wall (if any)
- Maximum composition: not foreseen (subject to inspection of the worksite conditions)
- Possible to combine leaves of different widths in the same system (version without track)

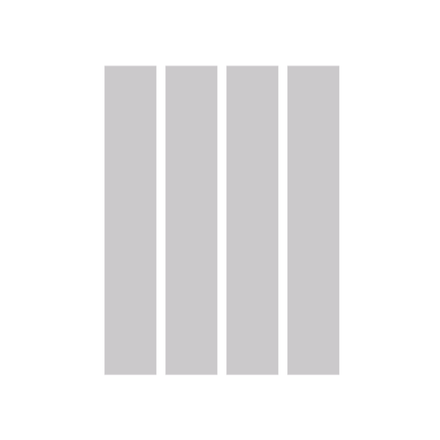

SHAPES AND OPENINGS
TEM CONSISTS OF
A reduced frame that also offers the possibility of creating systems comprising a high number of leaves, and can be assembled in the following configurations :
- The version of the traditional Zefiro System is provided with CROSSBAR or with TEMPLATE. In the first case, the system guarantees perfect anchoring of the aluminum to the ceiling (masonry and plasterboard), is supplied in several parts to make transport easy, assembled by means of joints before installation on the ceiling and can be painted with good quality water-based paints, enamels, etc.; in the case of the TEMPLATE, the pins are positioned directly on the finished ceiling;
- The version of the Zefiro FLY system with sliding track includes an extruded aluminum GUIDE SUPPORT, which prevents even the slightest bending, the risk of unsightly cracking and the peeling off of the plaster and/or the finish of the faux ceiling, as well as a TEMPLATE for positioning the tracks to be built in.
LEAVES AVAILABLE IN DIFFERENT VERSIONS WITH
- 50 mm thick hammered wood panel with a hardwood frame on 4 sides and smooth MDF faces. Panel is without door stop to allow unencumbered leaf rotation and pre-fitted for the installation of upper and lower pivots. Available in base layer coat, veneered, natural wood and lacquered finishes, as well as moulded panel. Class E1, low formaldehyde emission level;
- Panel with 50 mm thick extruded aluminum perimeter frame that can be anodized or painted in a variety of colors, and which supports different finishes, such as rear-lacquered glass, special glass, mirrors, leather, metal, ceramic, fabric and many others, all of which can also be combined with each other. On request, it is possible to supply only the frame disassembled and primed to accommodate finishes (made on the basis of the specifications provided by the Technical Office) other than those selected by Linvisibile.
INSTALLATION
Sliding track (optional) to be installed on unfinished floor and ceiling, exclusively in the case of the FLY version of the Zefiro system.
Finishes
GLASS - FRAMED
Exciting and dynamic effects, glass – whether in translucent or lacquered variations – is one of the most versatile materials for playing with reflections and colours. A noble material for creating refined and contemporary architecture.
MIRROR - FRAMED
Mirrors are obtained from a glass manufacturing process which yields the traditional reflective characteristic. Mirrors are valuable elements that dded to interiors give the optical illusion of larger and more radiant spaces.
ONYX - WOOD-BASED PANEL
Onyx stands out among the most precious coatings that can be applied to the Zefiro System, being a stone with a thousand shades that can play with light to engender unique ambiances. It is a stone that recalls luxury and gives furnishings a note of old-fashioned royalty.
WOOD ESSENCE - WOOD-BASED PANEL
Quality surfaces, exclusive of refinement. Traditional and modern blend in higher quality woods, durable and prestigious. No material is able to transmit the heat as the wood essence. Only the wood essence gives environments unique atmospheres, grain and different levels of density.
SPECIAL GLASS - FRAMED
The glass panels take on new features when undergoing satin finishing and chemical etching. The glass is available in a wide range of shades and can be further enhanced with the application of mesh and texture engravings that permit obtaining customized materials and products. A decorative solution that enhances with unique textures, reflections and colours.
CERAMIC - FRAMED
It is a product characterized by eclecticism and versatility, with multiple applications in traditional and out-of-the-box architecture, furnishing and design. Linvisibile has chosen the ceramics of leading companies in the production of ceramic slabs, whose creations can combine large sizes and lightness with great sturdiness. Sophisticated processing technologies guarantee the inalterability of the characteristics and chromatic properties of the slabs, which remain unchanged over time, even if exposed to the elements.
ANODISATION - FRAMED
The anodized aluminum frame is available in four standard fine-grained brushed colors, with a choice of warm and cool shades. Other coarse brushed or matt polished colors are available upon request. This treatment, by which the metal surface is coated with a protective oxide layer, protects the frame from corrosion, also giving it unique aesthetic properties.
PERFORATED SLAB - FRAMED
Thanks to a specific and highly engineered process, the perforated slab can come in different patterns and geometric motifs adapting to the most various needs and aesthetical demands. The slab shades follow the palettes of RAL lacquering and anodisation in fine-grained brushed, coarse-grained, and matt polished colours. With the perforated slab, the elegant "see-through" effect reaches the maximum level of customization.

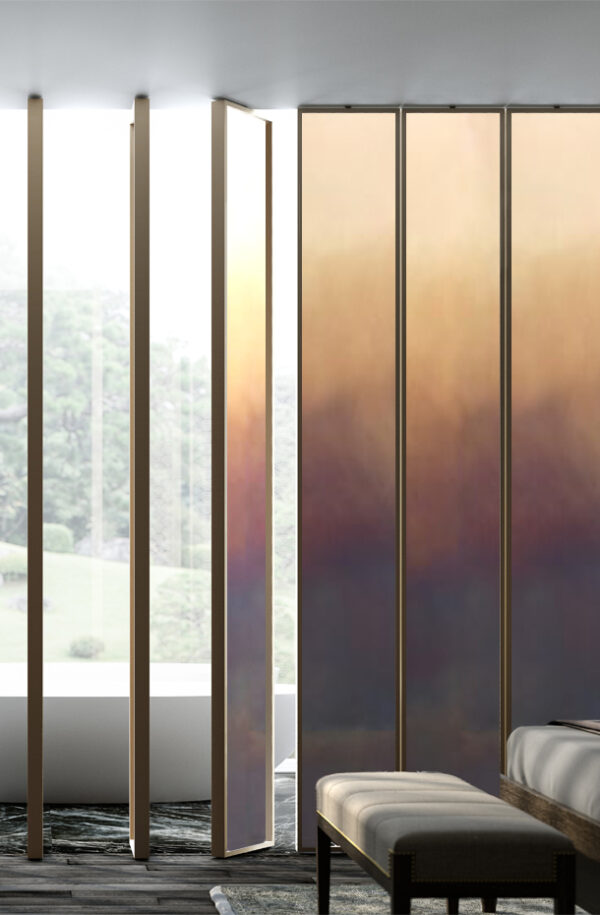

METAL - FRAMED
Surface shine, of metal. Amazing finishes that can be applied on all doors, available for the designer to give form to a space that reflects his/her imagination. Metal plates to choose between copper, brass and aluminium, of a variable thickness in function of the required finishing, applied to the facades oh the honeycombe panel by glueing.
FABRIC - FRAMED
An inimitable material that enhances the beauty of the panels, yielding an extraordinary tactile experience. Manufactured with cutting-edge technological processes, the fabric guarantees unique aesthetic, technical and sensorial performances. Fabric offers at once elegant and refined yet light, sturdy and durable solutions. For this finish, we have entrusted Alcantara®, which embodies the new paradigm of contemporary lifestyle sought after by those who look for functionality and the emotion of beauty, while also respecting ethics and the environment.
LEATHER - FRAMED
Natural product with high durability and precious aesthetic characteristics. A prestigious choice to cover surfaces with original textures that yield tactile sensations, strength and elegance. A material synonymous with Made-in-Italy excellence in a product that guarantees maximum customisation and meticulous attention to every detail.
WOOD VENEER - WOOD-BASED PANEL
A traditional material adapted to the most modern processes. The characteristics of veneered wood are manifold: resistance to scratches, heat and light; hassle-free maintenance and cleaning; rich range of wood types, colours and grains, and high standards of eco-sustainability. For this finish, we relied on a leading Italian company in the world of Engineered wood, which offers maximum quality, a commitment to preserving the environment and attention to design. For those who want to make a conscious and responsible choice in total respect for the planet.
LAMINATE - WOOD-BASED PANEL
A new generation of smart materials for the typical vertical and horizontal applications found in interior design. The laminates we have chosen for our products have unique features. Thanks to the innovative processing they undergo, they are moulded with fingerprint-proof surfaces, soft to the touch, matt and extremely resistant, so as to withstand bumps and scratches, as well as any possible damage from solvents and reagents typically used in household cleaning products. For the laminated finish, we relied on the collections by three cutting-edge brands, such as Fenix®, Homapal® and Formica®, which offer maximum quality and a wide range of colours.
LACQUERING - WOOD-BASED PANEL
The lacquer is one of the most elegant forms of panel finishes. Precious surfaces, shining in every possible color to give the inhabited a tone of exclusive elegance. Lacquers by Linvisibile refer exclusively to RAL classic K5 sample book. Lacquered colours are compliant to matt/glossy effect requirements: matt lacquered finish: 10 gloss; glossy lacquered finish: “100” gloss.
