SYNC KITCHEN FITTINGS
SYNC KITCHEN FITTINGS

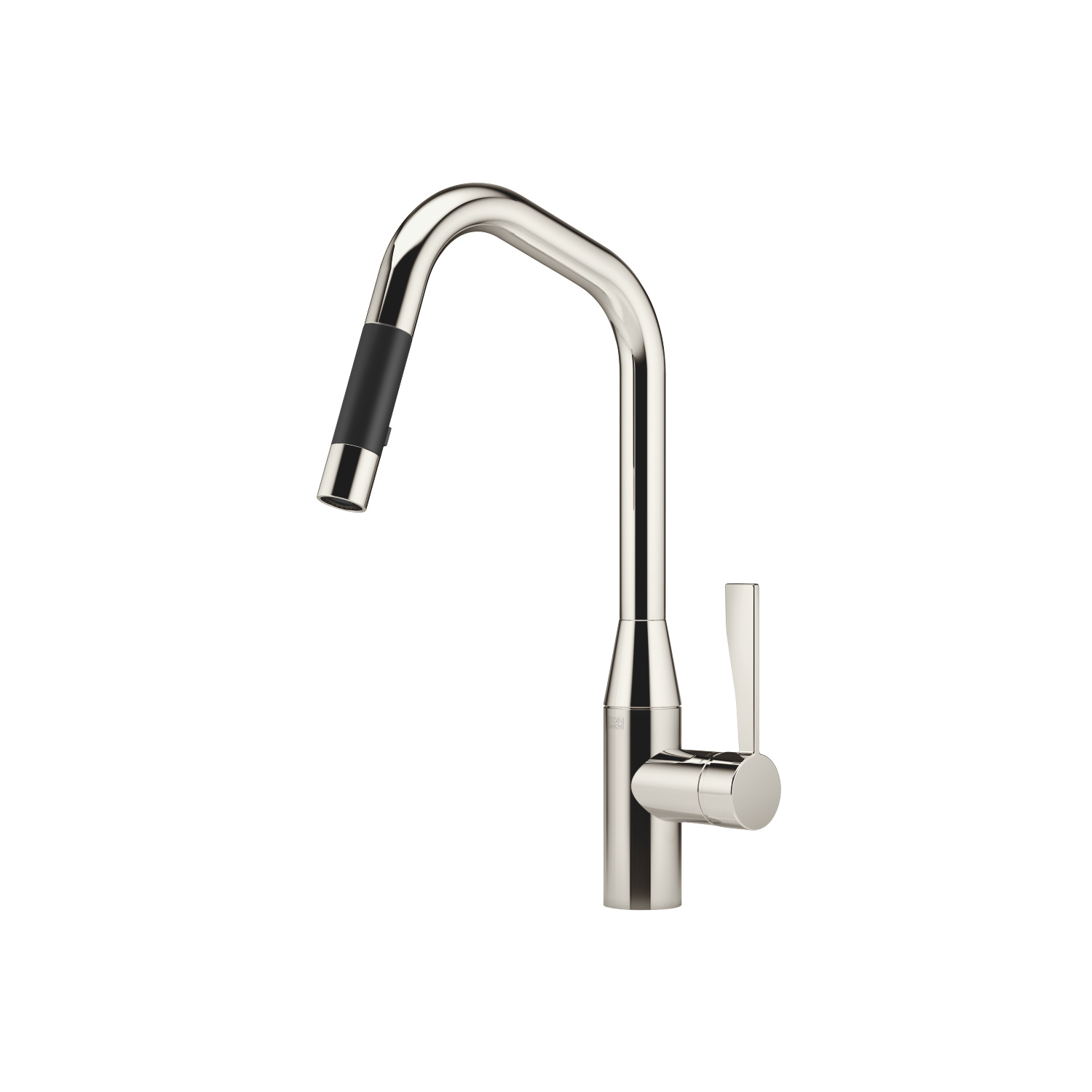

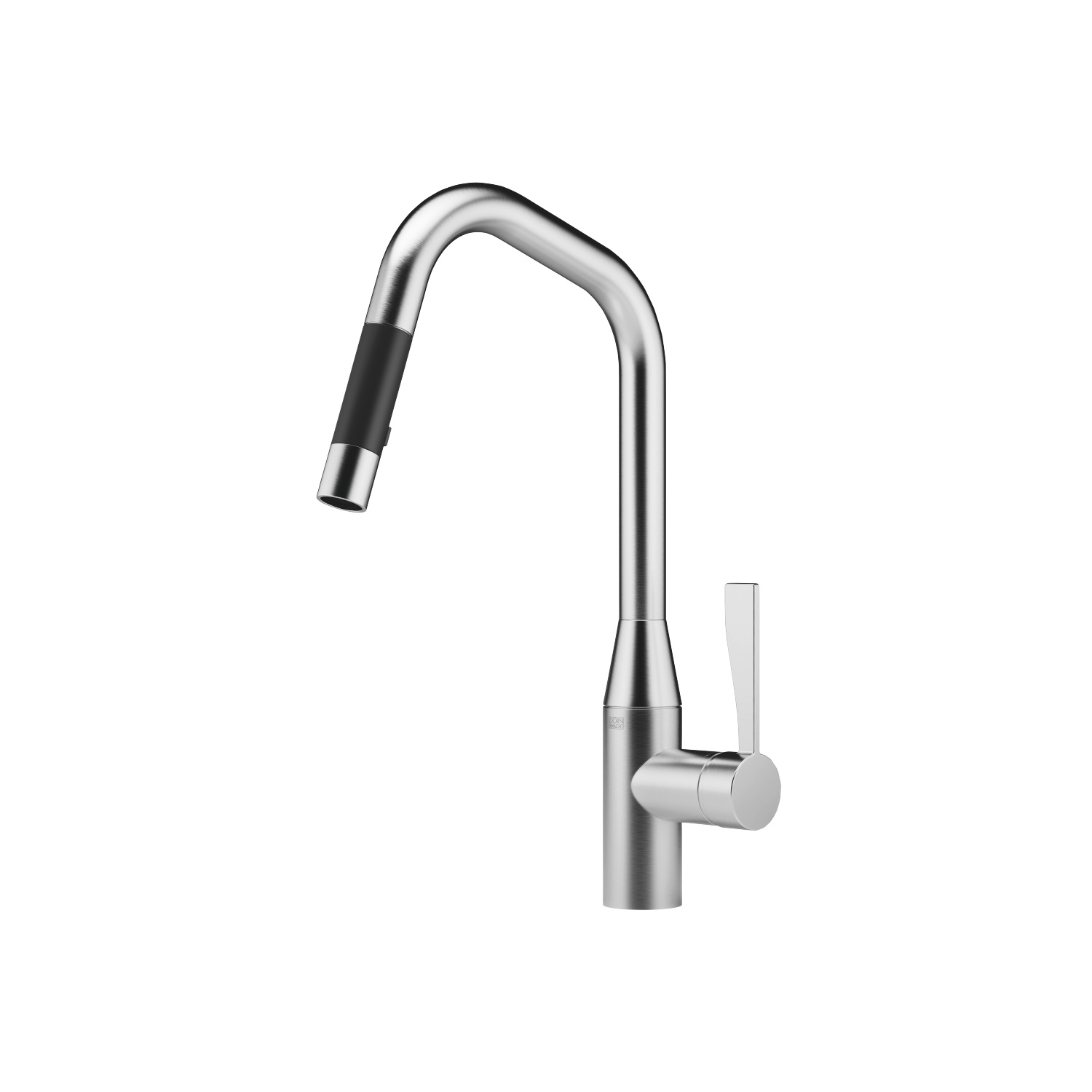

Single-lever mixer pull-down with spray function - Chrome
INFORMATION
HEIGHT TO AERATOR & SPOUT OUTLET
9-1/2"
APPLICATIONS
- Residential
- Professional
HOLE DIAMETER
1-3/8"
SWIVELING SPOUT
360°
USE
Kitchen fittings
ASME
A112.18.1
CSA
B125.1
PROJECTION
9-1/2"
CHARACTERISTICS
- Various finishes available
- Customizable
- Different function options
- Compatible with other Dornbracht kitchen products
CODES & STANDARDS
- NSF/ANSI 372
- ASME A112.18.1/CSA B125.1
- NSF/ANSI/CAN 61
- ADA
- California Energy Commission (CEC)
DOWNLOADS
↓ Technical Information
↓ Installation Instruction
↓ Care Instructions
↓ Finish Matrix
↓ Spare Parts List

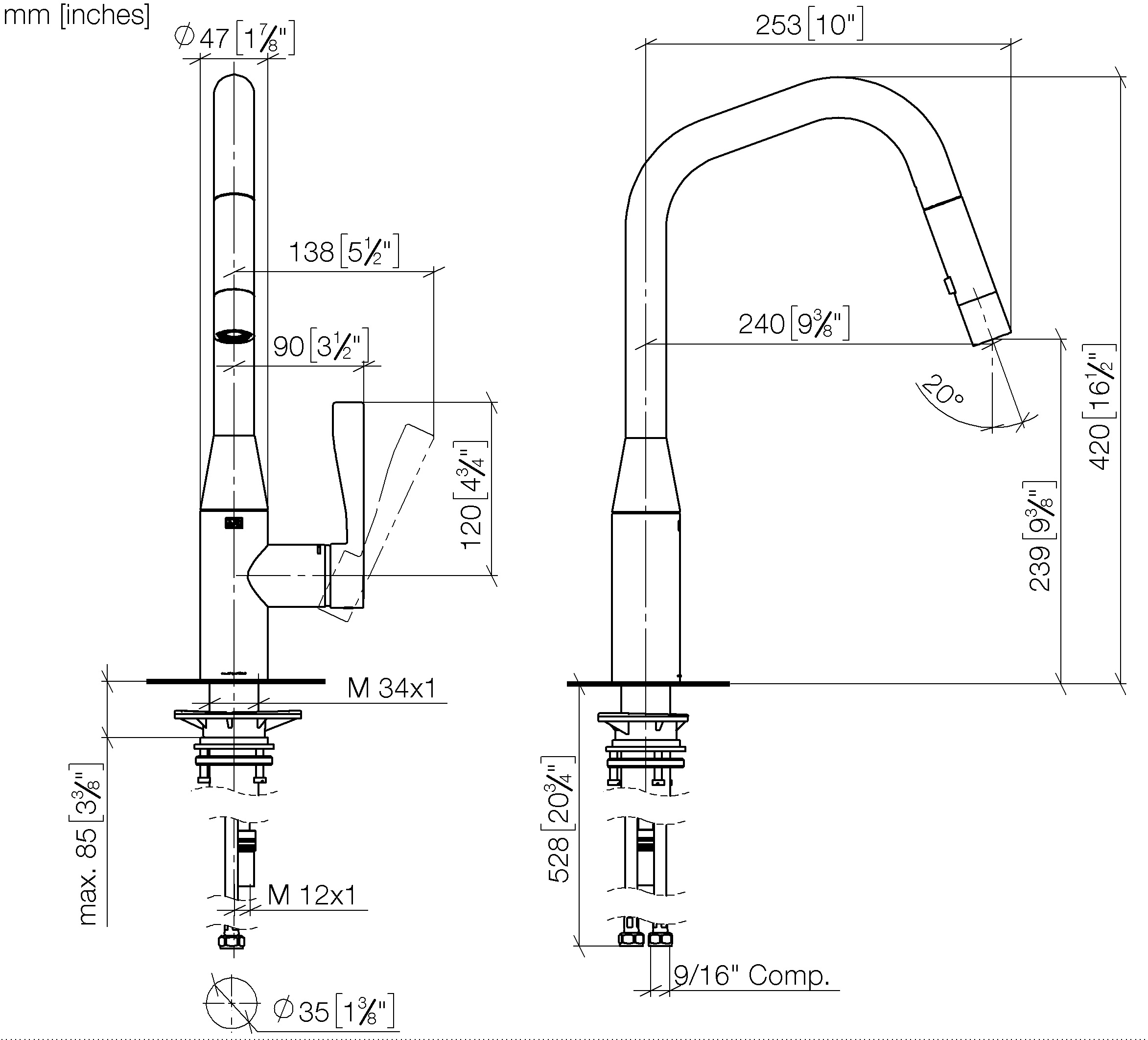

TECHNICAL SPECIFICATIONS
TOTAL HEIGHT
16-1/2"
FINISH TYPE
Chrome
FLOW RATE
Max. 1.5 Gpm
METAL SHOWER HOSE
59"
CONSTRUCTION TYPE
Deck-mounted
FEATURES
- Lead-free
- Internal backflow preventer
- Laminar and spray function
- Sprayface with descaling system
- Water flow rate limited to max. 1.5 gpm
- 2 x pressure hose with 3/8” compression fitting
- Push button locks into spray mode when pressed. To switch back to laminar flow the water must be turned off.
APPLICATION AREA
Kitchen
PRODUCT CONCEPT
SYNC
BRAND
Dornbracht
FINISHES

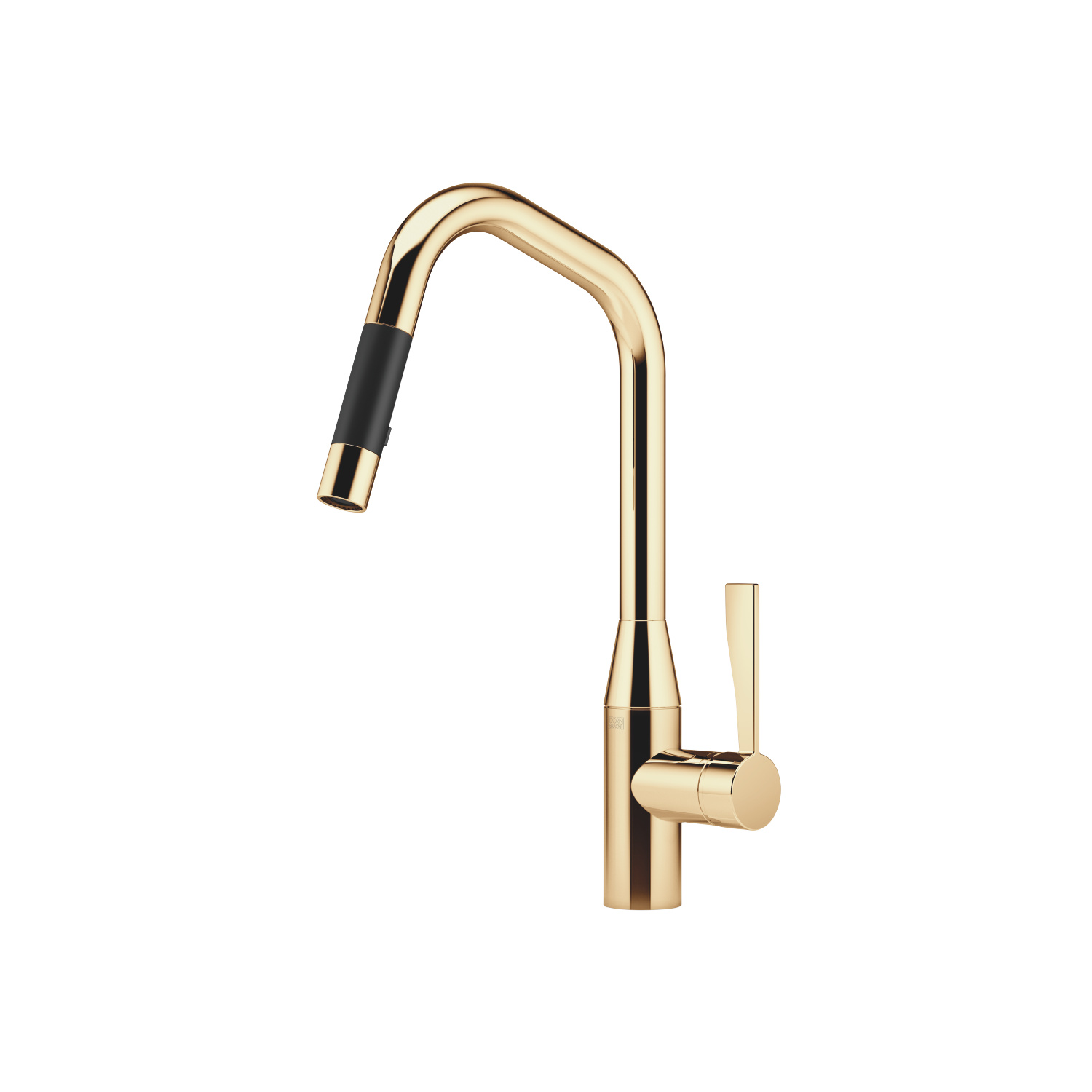

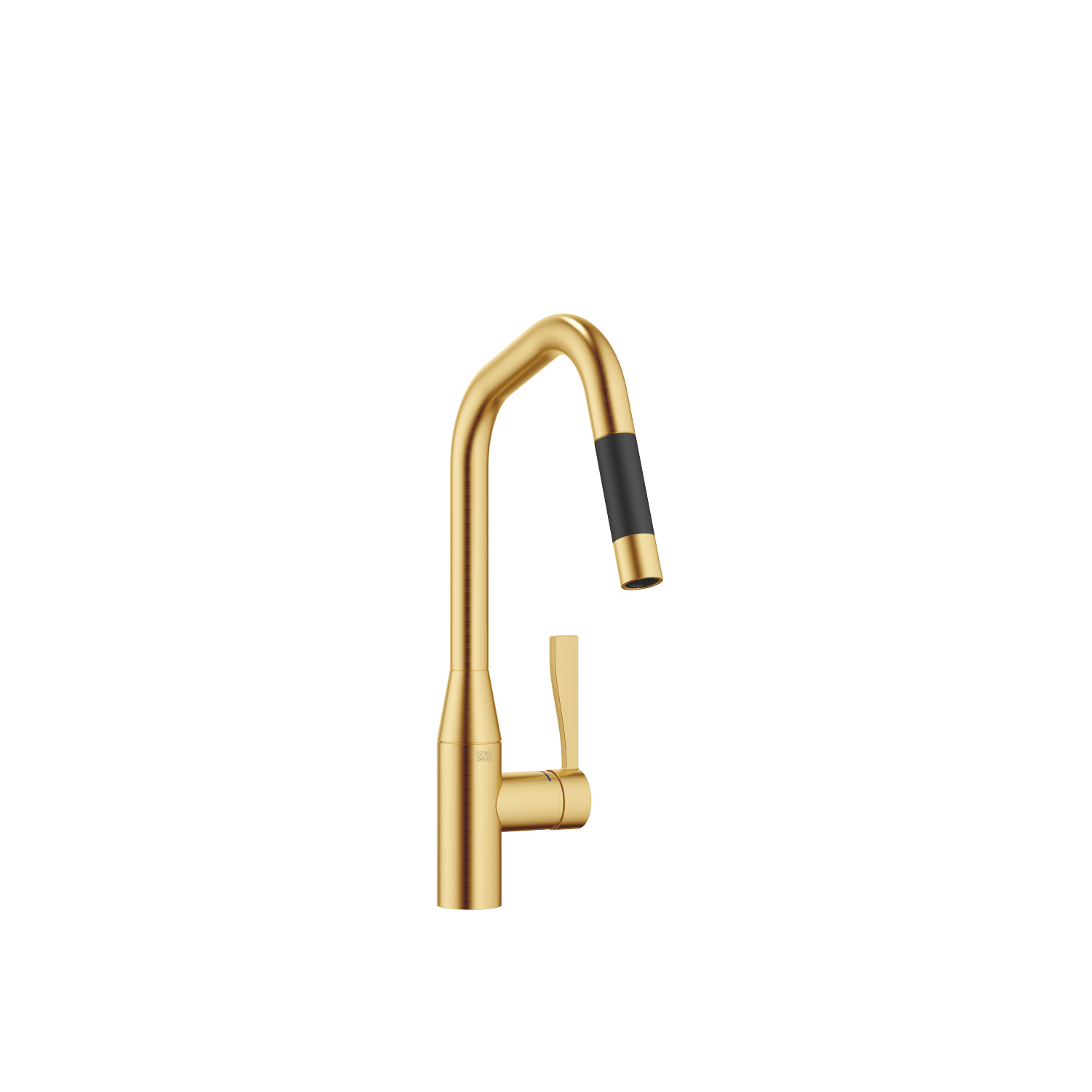

Brushed Brass (23kt Gold)

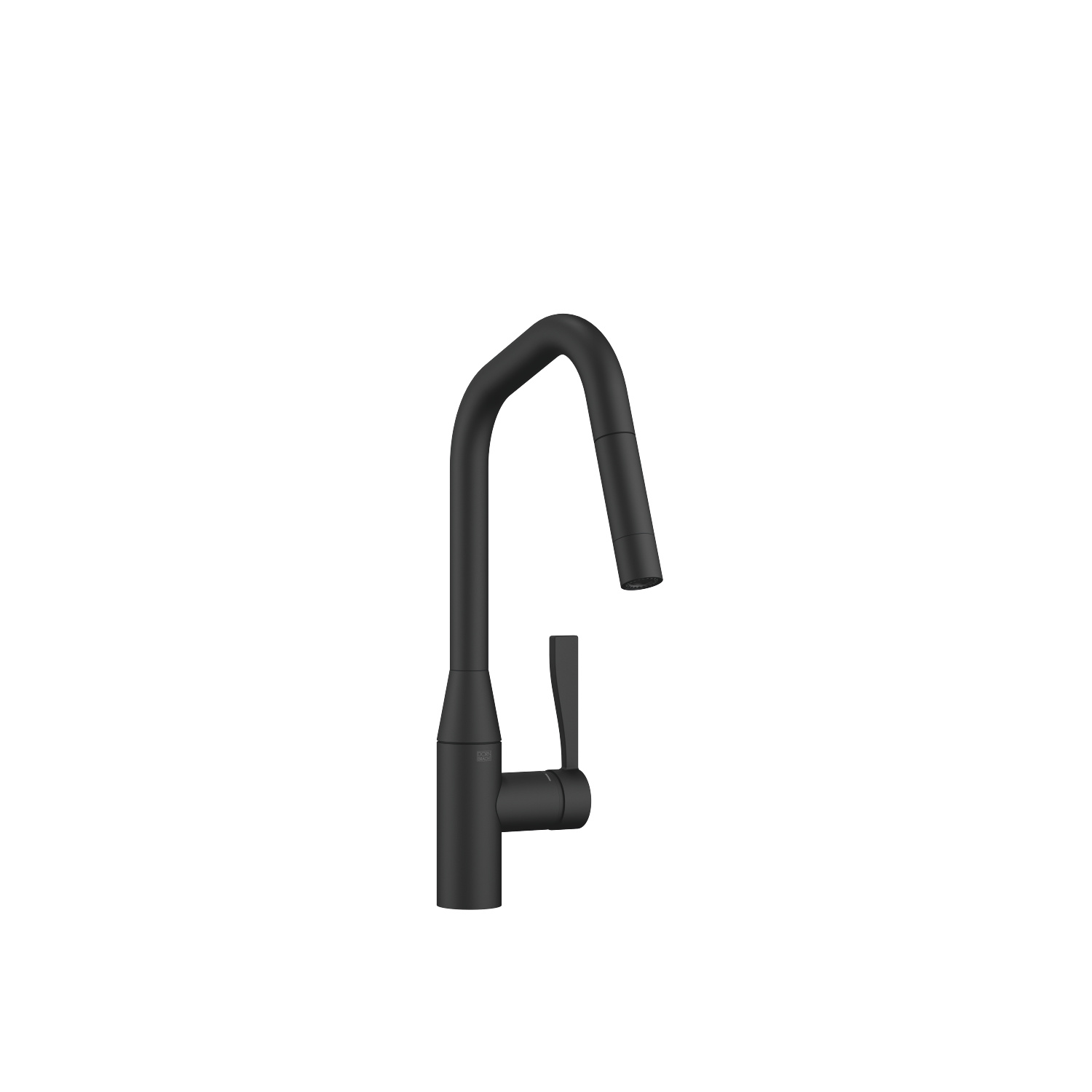

Black Matt

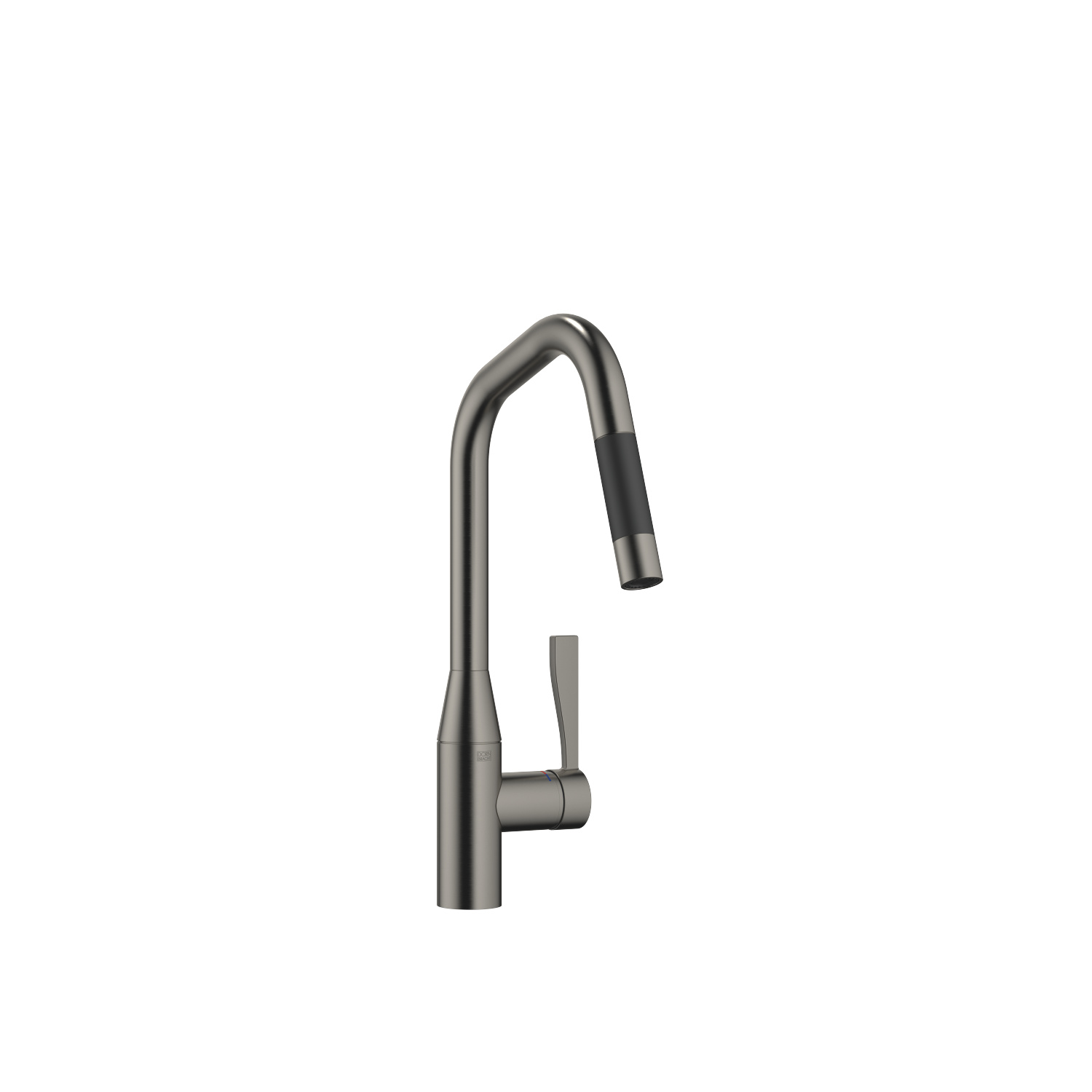

Brushed Dark Platinum
