Rolling Service Doors
Rugged DuraCoil rolling service doors, with aluminum, steel, or stainless steel slats, in a variety of gauges, are built to last.
FEATURES

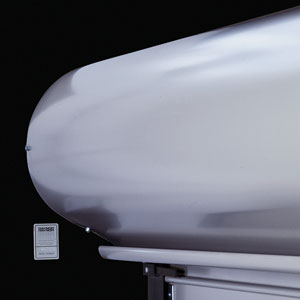

CURTAIN HOOD
DuraCoil rolling service doors feature a full-width, 24-gauge steel hood to protect your investment. Optional on DuraCoil model LFF.

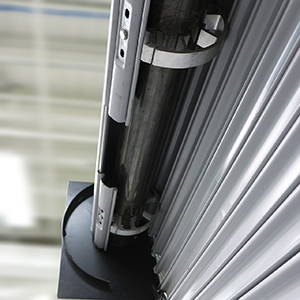

PRE-ASSEMBLED ROLLING STEEL DOOR
Our Raynor garage doors pre-assembled rolling steel door option allows for faster and easier installation by having the curtain, barrel, and head plates shipped pre-assembled and in one crate. Ask your Raynor Authorized Dealer how to take advantage of our pre-assembled option.

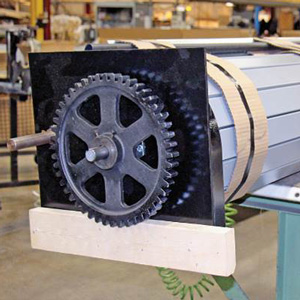

COUNTERBALANCE SYSTEM
A smooth-running, torsion-spring operated system is packed into each barrel assembly. Industrial head plates and bearings provide long cycle life.

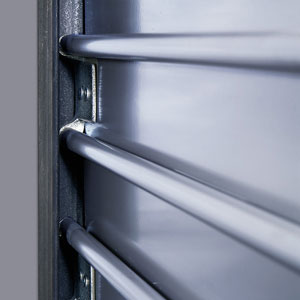

GUIDES AND END LOCKS
Rugged steel angle guides provide maximum support for curtain slats. Zinc-plated, malleable cast-iron end locks prevent lateral movement of the curtain slats.
CURTAIN
Each DuraCoil curtain is assembled with durable, heavy-gauge slats in a variety of materials and gauges.
BOTTOM BAR
Curtain bottoms are structurally reinforced with a minimum of two steel angles for maximum durability. A bottom astragal is included on all doors.
HEAD PLATE COVER
Head plate covers are available for an attractive, finished appearance and help to protect your investment by keeping out dust and grime.
SECURITY LOCKS
To keep your building secure, manually-operated Raynor DuraCoil rolling service doors are equipped with slide locks.
HIGH-CYCLE APPLICATIONS
For years of reliable operation in heavy-use applications such as multi-tenant parking facilities, choose high-cycle torsion springs.
VISION PANELS
For light transmission and visibility, choose 4″ x 1″ acrylic vision slots for flat and insulated flat curtain slats. Fenestrated curtains with open 4″ x 1″ slots are also available for flat slat curtains only.
SOUND TRANSMISSION CLASS RATING
Sound Transmission Class rating applies to IF (Insulated Flat Slat) model only.
- STC 22 without header seal
- STC 23 with header seal
PEDESTRIAN DOORS
Pedestrian doors are designed for convenient entry and to help minimize energy loss.
DURACOIL ENERGY-SAVING OPTIONS
RUBBER HOOD BAFFLE
Our optional rubber hood baffle consists of a reinforced neoprene sheet resting on the curtain to help minimize air infiltration. We also offer a rubber head seal for increased energy savings.
ENERGY EFFICIENT IECC COMPLIANCE OPTION
DuraCoil insulated (IF) doors have an air infiltration rate of .47 CFM/FT2, validated by an independent testing agency. This IECC compliance option includes a vinyl guide seal, rubber hood baffle, and a rubber header seal.
VINYL GUIDE SEAL
A vinyl extrusion decreases energy costs and reduces air infiltration by sealing the side of the door when closed. A brushed seal and rubber guide seal are also available.
SLAT STYLE OPTIONS
FLAT SLATS (FF)
The most architecturally pleasing slat profile, flat slats are ideal when weatherseal is used. Flat slats offer full visual access, multiple glazing options, and wind load resistance in a rolling steel door designed to fit in a variety of opening sizes.
LARGE CONTOUR SLATS (LC)
Available in virtually unlimited widths, large contour slats are typically specified for larger-sized openings. Designed to withstand heavy use, DuraCoil Large Contour Slat doors provide optimum security and wind load resistance.
NTOUR SLATS (SC)
An excellent choice for smaller opening widths, small contour slats are the best value for opening sizes up to 14’ x 14’. DuraCoil Small Contour Slat doors also offer optimum security and wind load resistance in a rolling steel door built to withstand the demands of high-traffic entryways.
INSULATED FLAT SLATS (IF)
Available in several sizes, DuraCoil Insulated Flat Slat doors offer thermal efficiency, combined with superior visual access, glazing options, and wind load resistance. Flat Insulated Slats have a U-Factor of 0.901.
LIGHT-DUTY FLAT SLAT (LFF)
The DuraCoil Light-Duty Flat Slat door is ideal for projects with a limited budget, while still providing the security of a rolling steel door.
FLAT PERFORATED SLATS (FP)
DuraCoil Perforated Flat Slat doors are engineered for applications where airflow, visibility, and security are desired while providing maximum ventilation and visibility.
INFORMATION
SLAT FINISHES
-Stainless Steel -Aluminum
APPLICATIONS
-Commercial -Industrial
-External -Internal
ARMORBRITE™ POWDER COAT SYSTEM
Many of your DuraCoil door’s metal components can be powder coated in any of 188 ArmorBrite colors to match any design scheme. Powder coating is available on the curtain slats, hood, door guides, head plates, and bottom bar.
CHARACTERISTICS
-Durable -Versatile -Secure -Slat-style Options
DETAIL

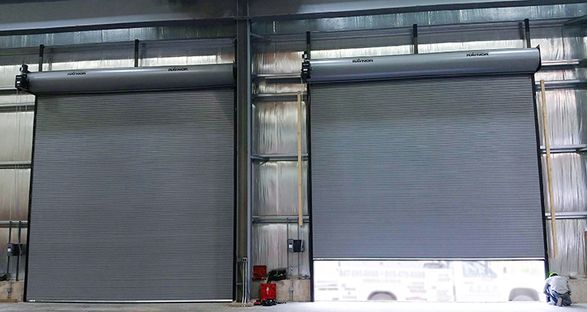

Raynor DuraCoil rolling service doors are an ideal choice for commercial and industrial applications. And with five available slat types – flat, insulated flat, small contour, large contour, or perforated – DuraCoil commercial rolling doors offer a style to fit any application.
