CLOUD CEILINGS – FLAT, CONVEX, & CONCAVE, IN PERF & NON-PERF
CLOUD CEILINGS – FLAT, CONVEX, & CONCAVE, IN PERF & NON-PERF
Cloud panels are easy to install, and may be used individually or linked together (with mending plates) in various sizes and shapes to form larger clouds.
Mounted on 1″ steel tube frames, Clouds are available in concave, convex, and flat styles. Curved Clouds have a standard 12′ radius. Custom radius and size options are available.
Finishes include wood veneer or a high-pressure laminate. For projects requiring sound absorption, Clouds may be perforated and backed with an acoustical backer.
INFORMATION
BRAND
Asi Architectural
PRODUCTION
Made In USA
CONVEX
12' typical radius
CONCAVE
12' typical radius
APPEARANCE
Suspended from 1″ tubular steel frames with “D” rings
CHARACTERISTICS
- Various Designs
- Acoustical Absorption
- Sizes And Wood Types
SIZES
- Maximum 60″ x 120″
- Curved clouds radius 12′
- Custom radius may not be less than 48″
USE
Interior, cloud panel
DOWNLOAD
↓ Data Sheet
MOUNTING OPTIONS
Suspended from 1″ tubular steel frames with “D” rings
AVAILABLE
Available in wood veneer in the species shown below*
CORE
Available core materials are : Class A Fire Rated Particle Board, Class A Fire Rated MDF
FEATURES
- Flat panels
- Perforated or slotted
- May contribute to LEED® projects
- High-pressure laminate face optional Perimeter trim available (MDF core only) FSC available
APPLICATIONS
- Cultural
- Industrial
- Corporate
- Educational
- Commercial
ACOUSTICAL ABSORPTION
-Naturally reflects & scatters sound -Acoustically absorptive when perforated-NRC varies based on the hole pattern -Optional features for sound control : Acoustical backer available in 1″ and 2″ thicknesses
FINISHES
Clear lacquer top coat or stained to match
CLOUD CONCAVE
- Radius Can Vary From Cloud To Cloud In The Same Installation
- Custom Sizes Available To Fit Irregular Installations
- Can Be Used In Conjunction With Concave And Flat Clouds
CLOUD CONVEX
- Custom Sizes Available To Fit Irregular Installations
- Can Be Used In Conjunction With Concave And Flat Clouds
- Radius Can Vary From Cloud To Cloud In The Same Installation
CLOUD FLAT
- Custom Sizes Available To Fit Irregular Installations
- Can Be Used In Conjunction With Convex And Concave Clouds
FINISHES
-Ash -Walnut -Maple -Beech -Red Oak -White Oak -Hickory -Cherry -Natural Bamboo -Caramelized Bamboo

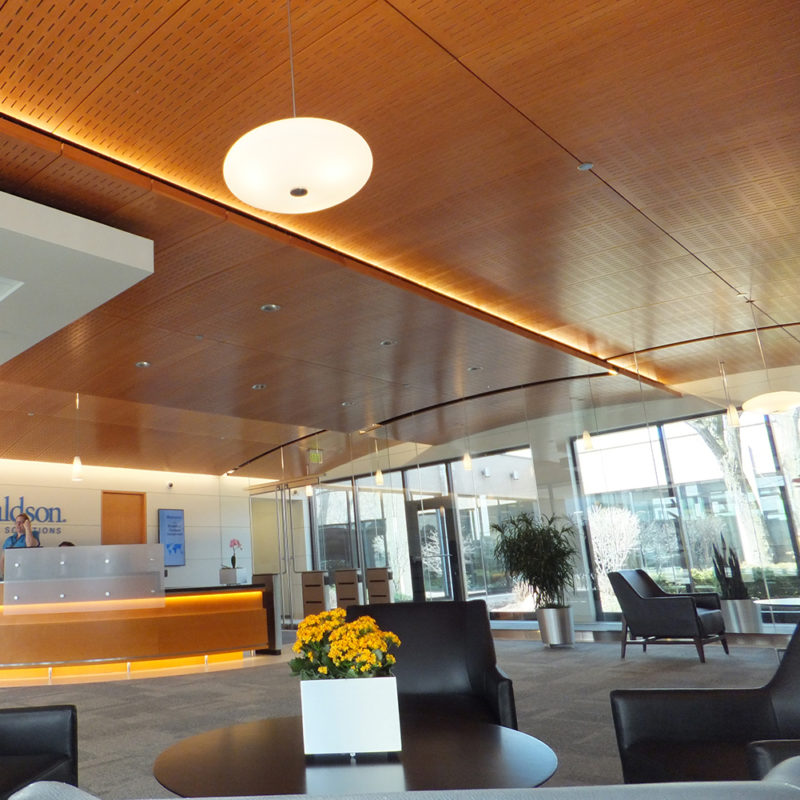

GALLERY
