Asi Architectural Microperf Ceilings & Walls
MICROPERF CEILINGS & WALLS
MICROPERF CEILINGS & WALLS
Microperf ceiling and wall panels use cutting-edge acoustical technology, enabling sound mitigation without the look or feel of typical absorber panels.
Engineered to appear like a standard millwork panel, they have excellent sound absorption properties. Their lightweight design allows panels to be mounted in a variety of methods.
Built with a fiberglass core, Microperf panels are available in wood veneer, vinyl, and can be painted or stained to match.
INFORMATION
BRAND
Asi Architectural
PRODUCTION
Made In USA
CORE/FIRE RATING
Class A Fire Rating
CERTIFICATION
Fire Rating: Class A (ASTM-E84)
APPLICATIONS
- Cultura
- Corporate
- Residential
- Commercial
FORMAT
- Slabs
- Plates
- Panels
USE
- Walls
- Interior
- Ceilings
- Decoration
DIMENSIONS
- Panel thickness : 3/4″, 1″
- Maximum width/length : 5′ x 12
ACOUSTICAL ABSORPTION
- Microperf 3/4″ : NRC Rating .70
- Microperf 1″ : NRC Rating .90
PERFORATION
- Pattern : Offset
- Surface Diameter : 0.5mm
WEIGHT
- ¾” : 1.2 lbs. / sq. ft.
- 1″ : 1.3 lbs. / sq. ft.
MOUNTING OPTIONS
- Wall s: Z-clip / Z-Bar
- Ceilings : Lay-in or tegular lay-in; torsion spring
CHARACTERISTICS
- Rigid
- Lightweight
- Impact Resistant
- Various Finish Options
APPEARANCE & COLOR
- Available in wood veneer in the species shown below*
- Uncompromised aesthetics
- Lightweight, impact resistant, and rigid
- Low reactivity to seasonal changes in temperature and humidity
- Can be hung like traditional wall panels using z-clips or installed on HD T-Bar grid
- Face options: real wood veneer or vinyl
- FINISHES: Clear lacquer top coat, Class-A varnish, or stained to match
- Touch-up finish available for field application
MICROPERF LAY IN
- Standard Panel Sizes Can Be Field Cut To Fit Irregular Shaped Installations
- Lays In To Hd 15/16” T-bar Grid For 100% Accessibility
MICROPERF METAL
- Standard Panel Sizes Can Be Field Cut To Fit Irregular Shaped Installations
- Lays In To Hd 15/16” T-bar Grid For 100% Accessibility
- Tegular Panels Have A 1” Reveal
- Black, White And Anodized Finishes Are Available
- Does Not Require And Acoustical Backer To Achieve An Nrc Rating

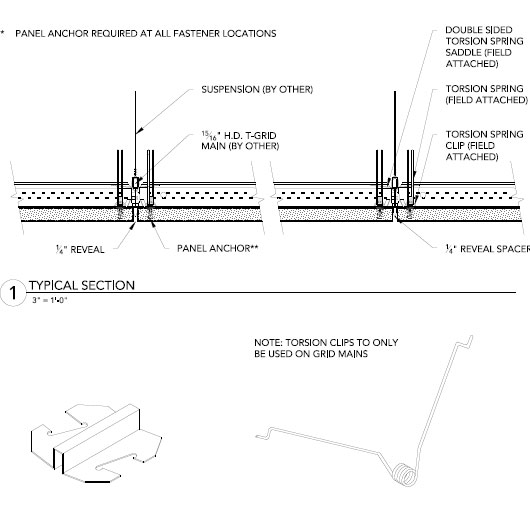

MICROPERF PANELS
For Ceilings And Walls
- Attaches To Hd 15/16” T-bar Grid With Clips For 100% Accessibility
- Standard Panels Can Be Field Cut To Fit Installation
- Custom Sizes Available To Fit Irregular Installations

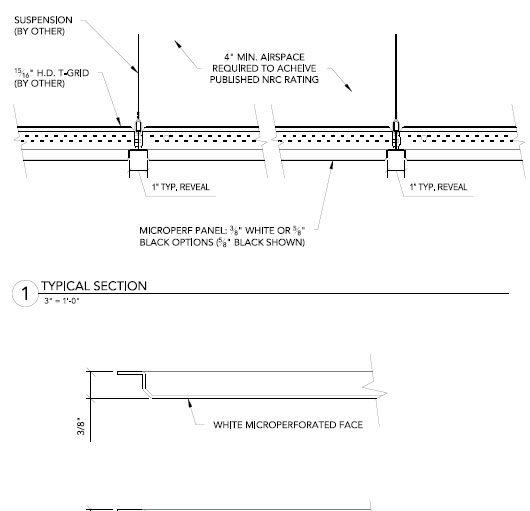

MICROPERF TEGULAR
- Standard Panel Sizes Can Be Field Cut To Fit Irregular Shaped Installations
- Lays In To Hd 15/16” T-bar Grid For 100% Accessibility
- Tegular Panels Have A 1” Reveal
FINISHES
-Ash -Walnut -Maple -Beech -Red Oak -White Oak -Hickory -Cherry -Natural Bamboo -Caramelized Bamboo

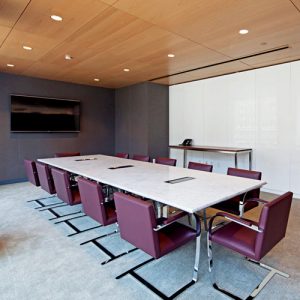

GALLERY
