Axor Overhead Shower
OVERHEAD SHOWER
OVERHEAD SHOWER
ShowerHeaven 720/720 3jet with lighting
INFORMATION
BRAND
Axor
POWER SUPPLY
12 V
FRAME
Brushed Stainless Steel
MATERIAL SPRAY DISC
Metal
ENERGY EFFICIENCY CLASS
Contains light sources of energy efficiency class G
SPRAY DISC SURFACE
Polished stainless steel
MINIMUM FLOW PRESSURE
2.5 bar
LIGHT COLOR
Warm white
INSTALLATION
Ceiling
LIGHTING
With integrated lighting
SHOWEHEAD SIZE
720 x 720 mm
COLOUR TEMPERATURE
2700 K
CONNECTION DIMENSION
DN20
SPRAY TYPE
- Rain
- Mono
- RainAir
SPRAY ZONES
- Mono spray at Ø 17 mm
- Bodyzone : Outer overhead shower zone
- Rainzone : Inner overhead shower zone with AirPower function
ILLUMINANT
LED
WARRANTY
5 Years
VOLTAGE
- Output voltage: 12 V - DC
- Input voltage: 100 - 240 V AC / 50 / 60 Hz
SCOPE OF DELIVERY
- Overhead shower
- Connection hoses
- Mounting material
- Assembly instruction
FLOW RATE
- maximum flow rate at 3 bar: 36,8 l/min
- flow rate Rain spray (at 3 bar): 36,8 l/min
- flow rate RainAir spray (at 3 bar): 20,5 l/min
- flow rate Mono spray (at 3 bar): 15,9 l/min
- flow rate normal spray (at 3 bar): 36,8 l/min
FEATURES
- TÜV certified
- not suitable for continuous flow water heaters
- transformer power supply for concealed installation 12 V, 18 W
- spray types can be activated individually or in combination, the 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets

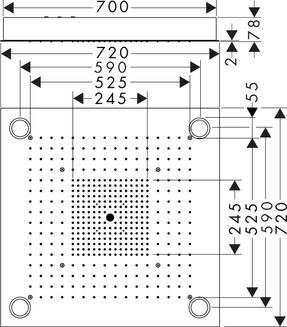

INSTALLATION DRAWINGS
TECHNOLOGIES
QUICKCLEAN: LESS LIMESCALE, MORE JOY
Is there anyone who likes cleaning? With QuickClean, limescale deposits and dirt on hansgrohe faucets and showers disappear in an instant. Just rub off the flexible nubs made of silicone.
AIR POWER - MORE PLEASURE, MORE EFFICIENCY
Products with this shower technology combined water with air to pamper you with more voluminous, lighter and softer water droplets on your skin. For greater showering pleasure with water efficiency.
