Jansen VISS RC Facade System
VISS RC FACADE SYSTEM
VISS RC FACADE SYSTEM
Burglar-resistant façade: tried-and-tested system solution for increased property protection
For higher levels of building protection, Jansen presents the new VISS RC4, a further development of its RC3 burglar resistant system.
With VISS RC4, Jansen is meeting the growing need for solutions that offer increased security alongside simple production and assembly. With an identical appearance to the standard VISS façade, the VISS RC4 structure shows no visible signs of burglar resistance. This allows different building requirements to be realised with a uniform appearance.
New VISS RC4 façade also provides protection from even the most well-equipped burglars. The VISS RC4 façade can withstand the standardised break-in attempt in accordance with EN 1630 for at least ten minutes. The VISS façade can be upgraded to a burglar-resistant structure up to RC4 with just a few additional components.
Other requirements can also be implemented while maintaining an unchanged, uniform appearance. For example, the VISS RC4 façade can be easily expanded with insulating cores to create a highly insulated façade. This not only provides a reliable solution, but also meets the growing demand for energy-efficient systems.
The VISS RC system solution can be designed with the standard VISS system in face widths of 50 and 60 mm. In addition, thanks to VISS Basic, any type of support profile can be used. Insert elements from Janisol, Janisol Arte and Jansen Economy 50/60 with corresponding RC approval can be integrated.
INFORMATION
AREA OF APPLICATION
- Residential
- Commercial
CHARACTERISTICS
-Burglar-resistant -Fast installation -Can be combined with other VISS systems
BRAND
Jansen
PRODUCT TYPE
Window System
MATERIAL
Metal
APPLICATION
Insert windows and insert doors
SURFACE FINISH
Uncoated steel or hot-dipped galvanised strip steel, suitable for powder coating or stove-enamelling
TEST CERTIFICATES
- CE marking in accordance with product standard EN1627
- Coefficient of thermal transmittance Uf > 0.84 W/m2K
- Tightness against heavy rain class RE 1200
- Air permeability class AE
- Resistance to wind load class 2 kN/m2
- Impact resistance class E5/I5
- Burglar resistance RC2/3/4
CONSTRUCTION TYPES
- Mullion-mullion-transom construction
- Mullion-transom-mullion construction
- Welded and/or push-fit construction
- Corner design
USE
Facade glazing
PROPERTIES
Thermal Insulation
SUPPORT STRUCTURES
-VISS system profiles and VISS Basic -Design profile (Linea, Delta, non-standard profiles)
SPECIAL TECHNICAL FEATURES
- VISS RC can be combined with the existing VISS systems in face widths of 50 and 60 mm
- Resistant to burglary and breakout according to EN 1627
- Coefficient of thermal transmittance Uf > 0.84 W/m2K
- Tightness against heavy rain class RE 1200
- Air permeability class AE
- Resistance to wind load class 2 kN/m2
- Impact resistance class E5/I5
- VISS RC versions can be combined with the burglar resistant profile solutions of the Janisol door and window systems
- Installed with double or triple glazing units

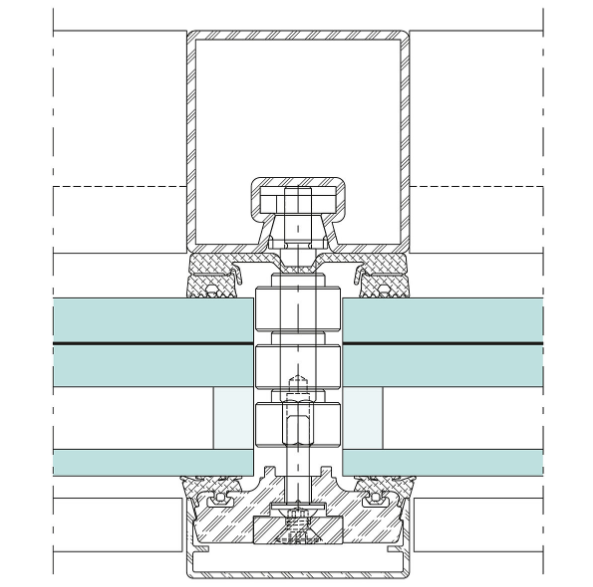

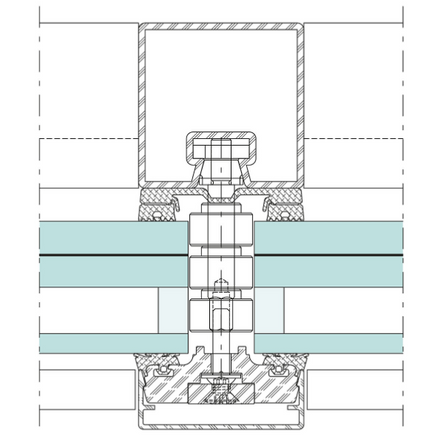

SECTION DETAILS
