LUMISPLASH PAPER CATALOG WALL PANEL
ALUMINUM BACKSPLASH PANEL

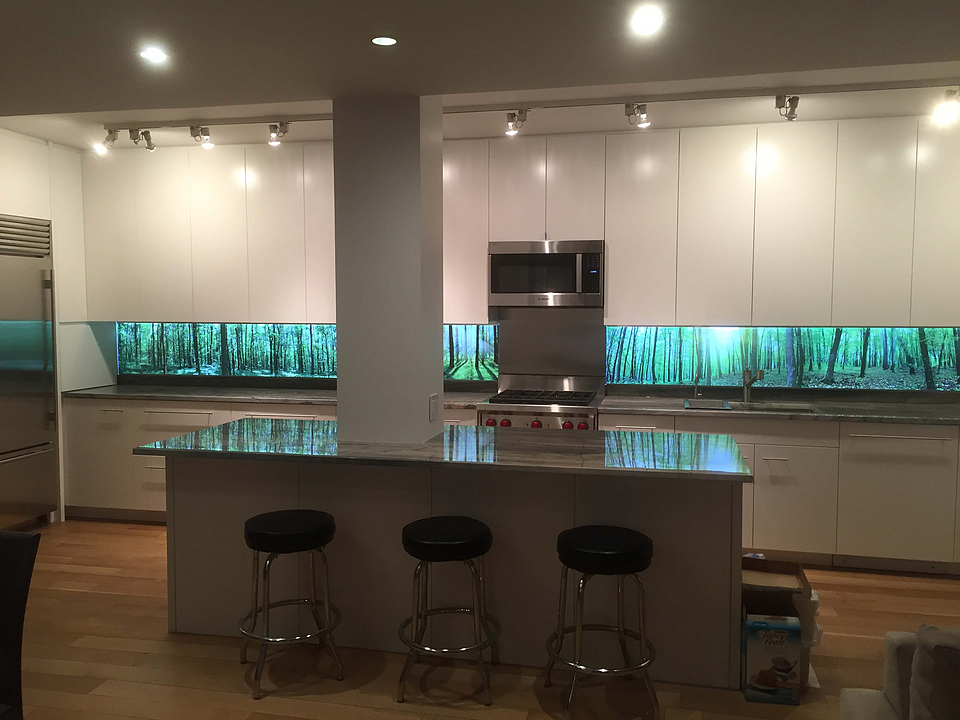

LumiSplash Backlit Walls, Counters and Backsplash Paper Catalog
LumiSplash tabletop laminates can transform an ordinary piece of furniture into a functional, illuminated work of art.
Unique as they are beautiful, these laminates provide soft light that may be dimmed to serve as either task or ambient light. LumiSplash tabletops utilize our multilayered panel system + graphics + edging system.
Our welded and powder-coated edging systems create a flawless, complete look. Bar tops and counters can utilize custom mouldings to create various effects.
When running electricity is not feasible, use our rechargeable battery system to supply light for 8-10 hours.
INFORMATION
BRAND
Decorativeceilingtiles
MODEL NO.
LS-Cat
TYPE
Wall Panel
LUMENS
225 per Ft
APPLICATIONS
- Residential
- Commercial
OPERATING TEMPERATURE
-30°c (- 22 °F) ~ + 40 °c (+104°F)
ENVIRONMENT
Dry location only (Standard)
INPUT VOLTAGE
12 volt DC
COLOR TEMPERATURE
60000k – 65000k
RATED AVG. LIFE
50.000 hours
MINIMUM SIZE
12" x 15"
COLOR RENDERING INDEX
75
MAXIMUM SIZE
4' x 8'
USE
- Artwork
- Furniture
- Countertops
- Accent Lighting
MOUNTING
- U-channel or mirror clips
- Wall mounted with screws, Z-clips
WEIGHT
0.95 lbs. /sq. ft. 9.54 kg/sq. ft.
TABLETOP
LumiSplash
FEATURES
- Ultra-thin and lightweight
- Customizable with Interchangeable Graphics System
- Value engineered for maximum functionality and design
- A variety of edging, framing, and mounting systems available
- Can withstand 9,150 abrasion cycles meeting NEMA Standard LD3-2005
- Chemical, stain, impact, scratch, and abrasion resistant FRP surface
- Easy on-site fabrication allows for accurate outlet and sink cutouts as well as the ability to cut to size.
ACCESSORIES
-Dimmers -RGB LED Light Changing System -Battery powered system -Transformers
-Various framing and molding options
ATI LUMISPLASH PRODUCTS CAN BE SPECIIED UNDER THE FOLLOWING CSI DIVISIONS:
- 101400 : LumiSplash Signage and Art
- 101433 : LumiSplash Interchangeable Graphics and Signage
- 123600 : LumiSplash Countertops
- 123623.13 : LumiSplash Islands, Bartops, and Tabletops
- 265100 : LumiSplash Double-Sided Panels and Ceilings
- 064116 : LumiSplash Casework
CERTIFICATION
Can withstand 9,150 abrasion cycles meeting NEMA standard LD3-2005
SIZES
- Double-sided available in standard sizes of 24" x 48" and 24" x 96"
- Custom sizes can be made to order for both single and double-sided panels
- Single-sided available in standard heights of 16", 24" and 48" and in lengths of 48" and 96"
- Single-sided custom lengths can be made to order or may be cut to smaller dimensions from stock panels
HANDLING AND MOUNTING INSTRUCTIONS
-Do not bend or twist light panel. Bending and twisting can damage LED light source. -Do not glue graphics, laminate, light diffuser or any material to the light panel surface as adhesives will change light diffusion properties and damage the materials. -Do not remove the heat sink(aluminum sheet on back) from the light guide panel. -Ensure the heat sink is installed in free air or in contact with a metal or thermally conductive surface for heat dissipation and to extend the LED’s lifespan. -Unless otherwise specified, this product is designed for indoor use only. -Use only DLC approved 12VDC power supply with this light panel. All other power supplies may
damage LED’s and void warranty
CHARACTERISTICS
-Ultra-thin And Lightweight; Chemical, Stain, Impact, Scratch + Abrasion Resistant Frp Surface -Customizable, Interchangeable Graphics, Variety Of Edging, Frames + Mounting Systems Available -On-site Fabrication
