Egger Laminates With Coloured Core
LAMINATES WITH COLOURED CORE
LAMINATES WITH COLOURED CORE

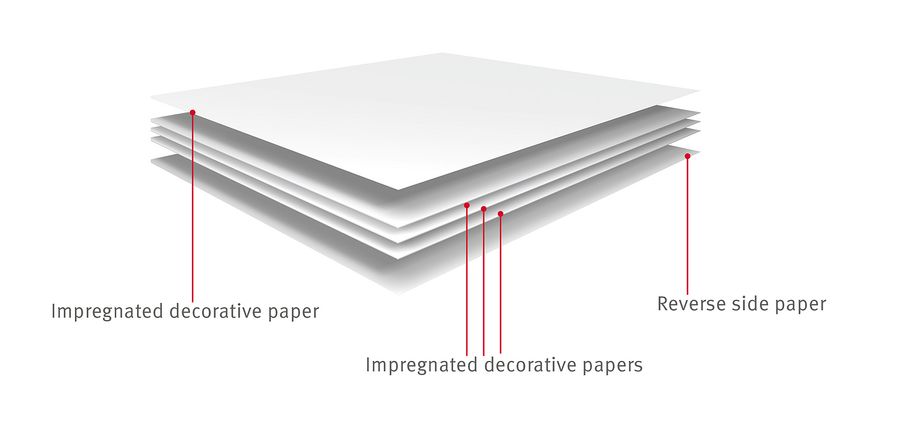

Laminates with a coloured core consist of several layers of the same decor impregnate. Joints and butt edges processed on mitre are thus almost invisible. In combination with a solid wood edge band, the coloured core enhances the design of the board's narrow side. In accordance with the standard, laminates with coloured core are classified are not postformable. MED-certified laminates with coloured core are available for use in shipbuilding.
information
BRAND
Egger
EDGE
Solid wood edge band
STRUCTURE
Multi-layered Structure
USE
-Furniture -Interior design
RAW MATERILAS
- Decor paper
- Kraft paper
- Overlay
- Underlay
- Resins
BENEFIT
EGGER Laminate Coloured Core in the nominal thicknesses 0.80 mm is MED (Marine Equipment Directive) certified. The MED quality, which is confirmed by Lloyd's certificates, enables the use of laminates in shipbuilding.
DIMENSIONS
- Width : 1.310 mm
- Maximum length : 5.600 mm
- Minimum length : 800 mm
CHARACTERISTICS
- Homogeneous look
- Resistant to abrasion
- Impact and scratches
APPLICATIONS
-Furniture fronts -Tabletops and worktop -Door cladding -Shelves and side walls -Interior design for shops, trade fairs and ships
STORAGE / FABRICATION
Information concerning storage and processing is available in the processing instructions "EGGER Laminates".
NOMINAL THICKNESS
0.80 mm
MINIMUM QUANTITY
260 m²
AREA oF APPLICATION

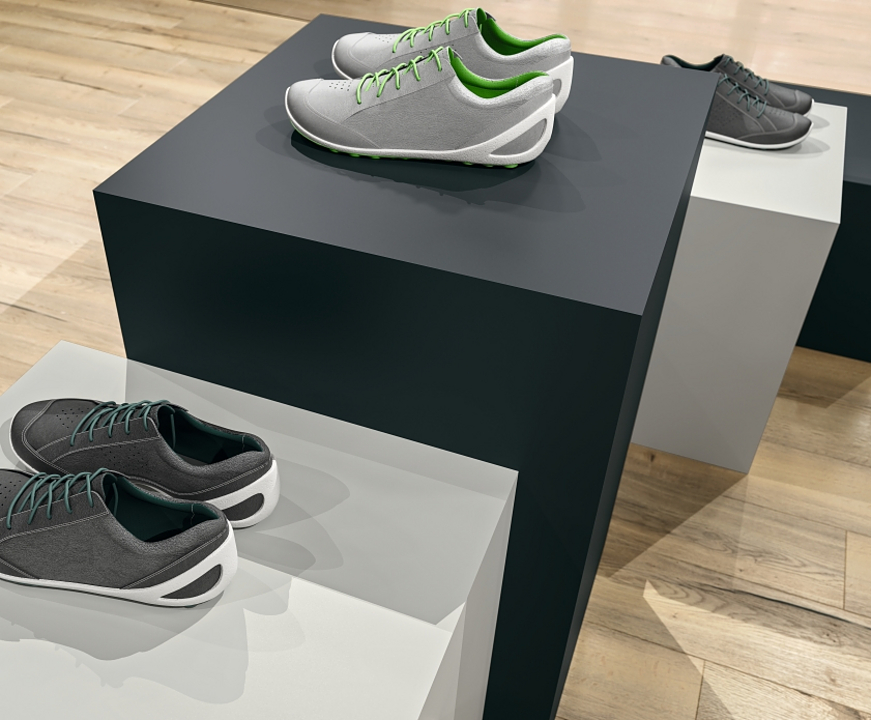

Interior applications in medium to high traffic areas. Laminate with coloured core allows applications without visible or interfering edges
and joints. For high-grade solutions in interior, shop and exhibition construction, such as furniture and design elements, worktops and
table surfaces, door panelling, exhibition and sales modules.
ADVANTAGES
-Consistent, Homogeneous look -Enables virtually invisible grooves and joints -Resistant to wear, impact and scratches -Highlights the design of the furniture on narrow sides without edging -Antibacterial surface property in accordance with ISO 22196 (=JIS Z 2801)
VERSIONS / AVAILABILITY
EGGER Laminate Coloured Core is part of the EGGER Decorative Collection. Selected decors and sizes are available ex stock and from just one sheet upwards, according to the country-specific availability guides. Laminate with a coloured core is supplied exclusively as a
format product.
CARE AND CLEANING
Due to its resistant, hygienic and dense surface, EGGER Laminate Coloured Core does not require any special form of care. The surface is generally easy to clean; this also applies to textured surfaces. Do not use sanitary cleaners or detergents with abrasive components; as such cleaners may lead to changes in the gloss level and/or scratching of the material
