Kartell Laufen Wall-hung Washbasins
LAUFEN WALL-HUNG WASHBASINS
LAUFEN WALL-HUNG WASHBASINS

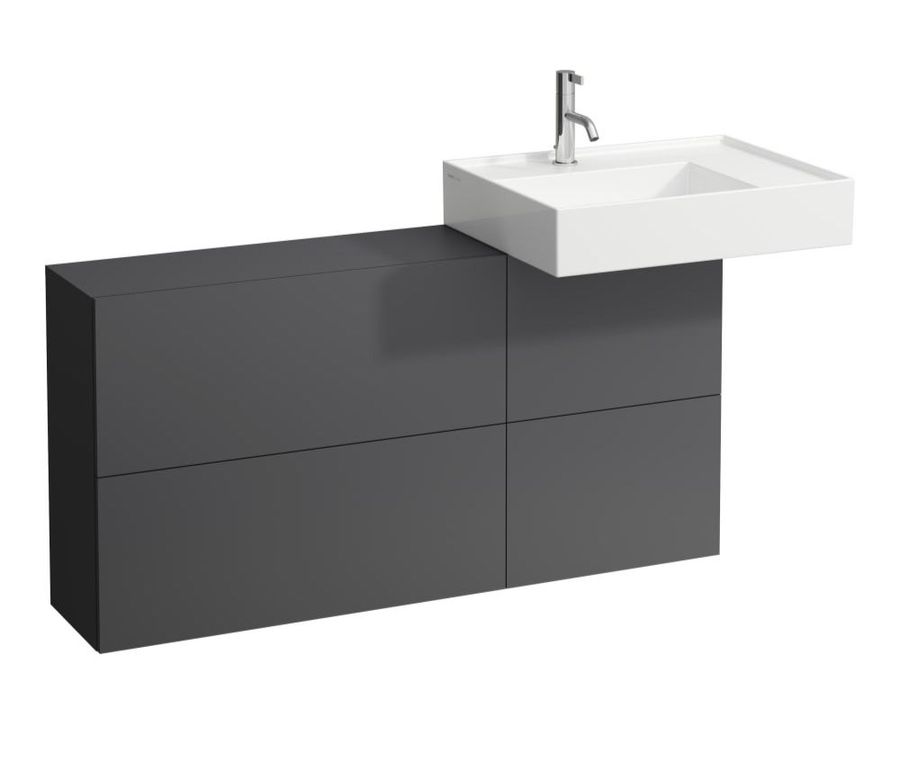

Article-no.: H8103340001111/ Washbasin, Shelf Right, With Concealed Outlet
INFORMATION
TYPE
Washbasin
ARTICLE-NO.
H8328010003041
BOWL DEPTH
95 mm
NET WEIGHT
24 kg
USE
Interior
APPLICATIONS
Bathroom
BOWL POSITION
Left
INTERNAL SHAPE
6 - Rectangular
BOWL LENGTH
430 mm
BOWL WIDTH
315 mm
NUMBER OF FIXING POINTS
2
NET WEIGHT
16 kg
MATERIAL
SaphirKeramik
INSTALLATION TYPE
-Vanity -Wall-hung
TAPHOLE CONFIGURATION
1 Taphole in the middle
MATERIAL
SaphirKeramik
OPTION
-One Tap Hole
- Without Overflow Hole
BASIN CAPACITY
9.7 L
SHELF
- Shelf Position : Right
- Integreted
DIMENSION
MOUNTING ACCESORIES INCLUDED
Valve pre-assembled Charge 111, 112, 158, 815 – valve without overflow always open, order no. 89830.1 Charge 814 – pop up valve, order no. 89830.2
TECHNICAL DESCRIPTION
With Special Hidden Drain Charge 111 – 1 Centre Tap Hole, Without Overflow
MOUNTING ACCESORIES EXCLUDED
Siphon Dn 32 Chrome, Order No. 89394.7 Mounting Set M10 X 140 mm, Order No. 89988.2
SHAPE
Rectangular
CHARACTERISTICS
- Swiss Design
- Sustainable Design And Manufacture
- Complete Design Collections And Installation Systems Available From A Single Source

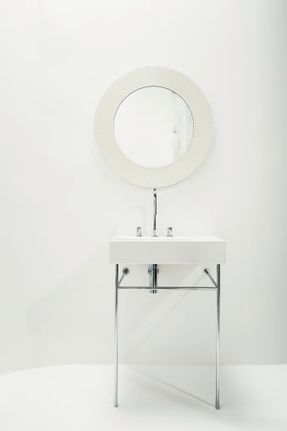

GALLERY
