FORMPARTS22
FORMPARTS22
The delicate-looking yet robust custom-made elements are assembled according to requirements and create a smooth facade appearance.
Formparts22 are available with a sharp as well as a rounded edge. Various surfaces and textures are available, which can be individually combined with each other. .
The large unwinding width means that several different formed parts can be combined with each other. Due to their low weight and large span widths, formparts are perfect for facades with challenging geometries. Pre-assembly in the factory, independent of weather conditions, guarantees a high-quality standard and rapid assembly on site
FEATURES
PLUG & PLAY - NEW MOUNTING SYSTEM
The jointed formed parts are connected using different mounting brackets depending on size.
As a system supplier, Rieder provides coordinated components, resulting in an integrated solution from a single source.
The simple anchorage system allows on-site adjustment, high fitting accuracy and concealed mounting. The mounting options are compatible with all standard supporting structures and are a time-saving, economical and sustainable alternative. For the mounting of form parts.
Rieder offers a library of standard details with typical vertical and horizontal sections as well as details for fire barriers, connections for glass facades, shutter boxes, ceiling cladding, roof connections and column cladding.
Based on project experience, a large collection of prepared special solutions for mounting on a wide variety of building and facade types is also available.
INFORMATION
BRAND
Rieder
PRODUCTION
Made in Austria
WIDTH
Max. 1350
LENGTH
Max. 5000
FORMAT
- Panels
- Surface : Matt
ECONOMICAL
Due to the low weight of the formparts and their large spans, less substructure is required. They provide an economical solution for the building envelope.
THICKNESS
13 mm
SURFACE
Matt
USE
-Facades -Ventilated Walls -Roofs -Interiors
APPLICATIONS
-Educational -Residential -Hotel -Culture -Corporate
FIRE PROTECTION
Fire resistance with fire protection class A1 "non-combustible" according to DIN 4102.
SHAPES

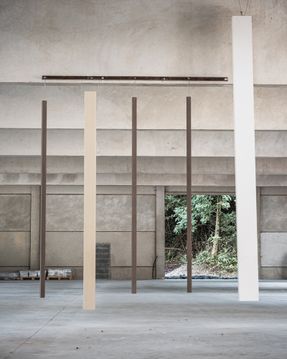

The folded elements are tailor-made as a single piece and are available with L- or U-cross section, as a round arch, and as special shapes with a length of up to 5 meters.
CONCRETE IS ALIVE
Glassfibre reinforced concrete is a natural material. Its raw materials that originate from nature create a special, concrete-like surface.
PRE-ASSEMBLY
The pre-assembly in the factory, independent of weather conditions, ensures a high quality standard and quick assembly on site. The elements are simply mounted and then finetuned.
CERTIFICATION
-ISO 9001 & ISO 14001 certifications -A1 “non-combustible” as per DIN 4102
CHARACTERISTICS
-Facade Panels Made Of Fibrec -Glass-fiber Reinforced Concrete -100% Non-combustible -Sustainable -Durable -Can Be Fastened Visibly Or Concealed On A Metal Substructure -Dyed Throughout With Natural Color Pigments
SUSTAINABLE
With its ISO 9001 and ISO 14001 certifications, Rieder sets itself high standards for environmental protection. The environmental product declaration, EPD, gives precise indicators for the life cycle assessment.
COLORS
FINISHES
The authentic colours blend well into landscapes and correspond with nature and the environment. Colour variations within a colour tone are intended and enhance the liveliness of the building material, concrete. formparts.mono are available in the surfaces ferro and ferro light; the formparts.fab are also available with a matt surface. They can be easily combined with concrete skin.
COLOR COLLECTION
TIMBER
-Larch Ferro -Larch Ferro Light -Larch Matt -Oak Ferro -Oak Ferro Light -Oak Matt -Walnut Ferro -Walnut Ferro Light -Walnut Matt -Ebony Ferro -Ebony Ferro Light -Ebony Matt -Terra Ferro -Terra Ferro Light -Terra Matt
BRICKY
-Coralline Ferro -Coralline Ferro Light -Coralline Matt -Terracotta Ferro -Terracotta Ferro Light -Terracotta Matt -Oxide Red Ferro -Oxide Red Ferro Light -Oxide Red Matt -Burgundy Ferro -Burgundy Ferro Light -Burgundy Matt -Merlot Ferro -Merlot Ferro Light -Merlot Matt
PIETRA
-Cotton Ferro -Cotton Ferro Light -Cotton Matt -Vanilla Ferro -Vanilla Ferro Light -Vanilla Matt -Sahara Ferro -Sahara Ferro Light -Sahara Matt -Sandstone Ferro -Sandstone Ferro Light -Sandstone Matt -Almond Ferro -Almond Ferro Light -Almond Matt
GREYSCALE
-Polar White Ferro -Polar White Ferro Light -Polar White Matt -Off-white Ferro -Off-white Ferro Light -Off-white Matt -Ivory Ferro -Ivory Ferro Light -Ivory Matt -Silvergrey Ferro -Silvergrey Ferro Light -Silvergrey Matt -Chrome Ferro -Chrome Ferro Light -Chrome Matt -Anthracite Ferro -Anthracite Ferro Light -Anthracite Matt -Liquid Black Ferro -Liquid Black Ferro Light -Liquid Black Matt
