Laufen Bowl Washbasin - Sonar
Bowl Washbasin - Sonar

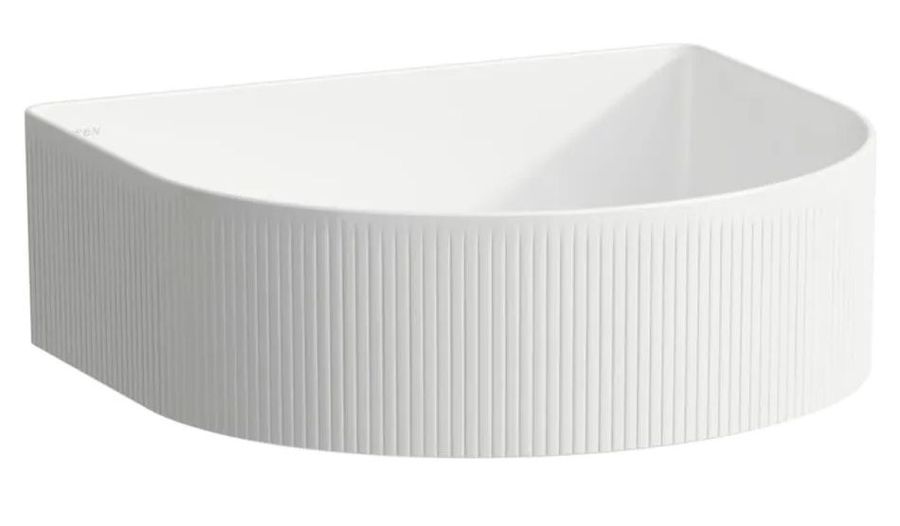

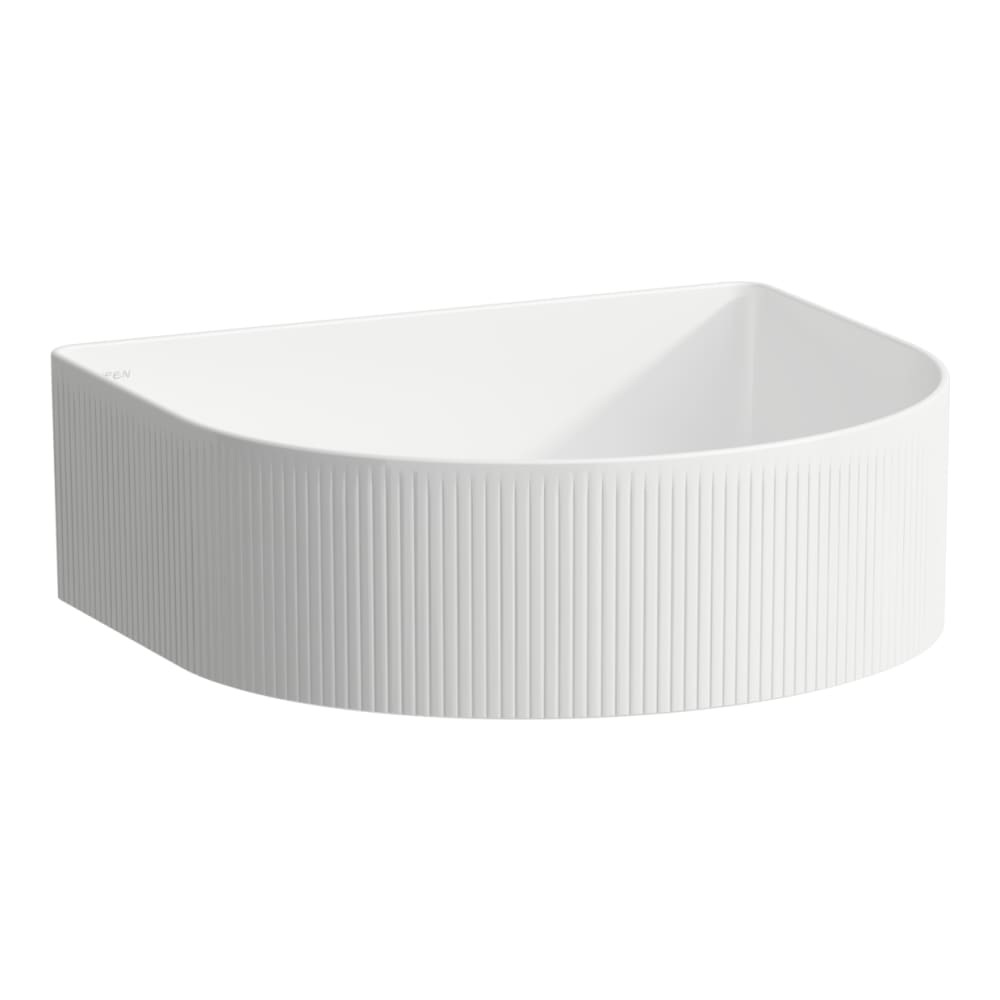

BOWL WASHBASIN WITH SURFACE STRUCTURE, INCL. CERAMIC WASTE COVER
information
BRAND
Laufen
ARTICLE-NO
H8123430001121
APPLICATIONS
Bathroom
USE
Interior
OPTION
Without tap hole, without overflow hole
MOUNTING ACCESORIES EXCLUDED
Siphon DN 32 chrome, order no. 374980
UNDERSURFACE GROUND
WASTE
Included
MATERIAL
SaphirKeramik
FIXING KIT
Included
DIMENSIONS
- Length : 410 mm
- Width : 365 mm
- Height : 140 mm
INSTALLATION TYPE
Bowl / On countertop
MOUNTING ACCESSORIES INCLUDED
- Template, order no. 893345
- Fastening kit, order no. 894961
- Charge 112 – valve without overflow always open, order no. 893344
SHAPE
Soft
NET WEIGHT (KG)
6.6
INTERNAL SHAPE
5 - Soft
TAPHOLE CONFIGURATION
No tapholes
BOWL DIMENSIONS
- Bowl position: Central
- Bowl width (mm): 365
- Bowl length (mm): 410
- Basin capacity (l): 9.6

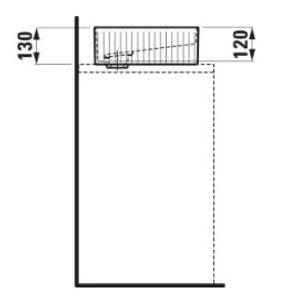

TECHNICAL DRAWINGS
TECHNICAL DESCRIPTION
- Dimensions 410 x 365 mm
- Special feature: with outside texture
- Washbasin bowl with texture Laufen-SONAR, SaphirKeramik EN 31
- Further options / accessories: Surface refinement LCC (only white), bathtubs
- Without tap holes, without overflow, valve without overflow always open, SaphirKeramik valve cover plate
