Sanifos 610 GR Pumping Station
SANIFOS 610 GR PUMPING STATION
SANIFOS 610 GR PUMPING STATION
The Sanifos 610 GR is a packaged pumping station suitable for single dwelling residential or commercial use. It is an efficient solution where gravity reliant sewerage are not possible due to limited site access and site constraints such as property sloping away from the sewer infrastructure
Sanifos 610 GR is an automatic lifting station for residential or industrial waste. It can take waste from a toilet, basin, bath, shower, bidet, washing machine, dishwasher and sink.

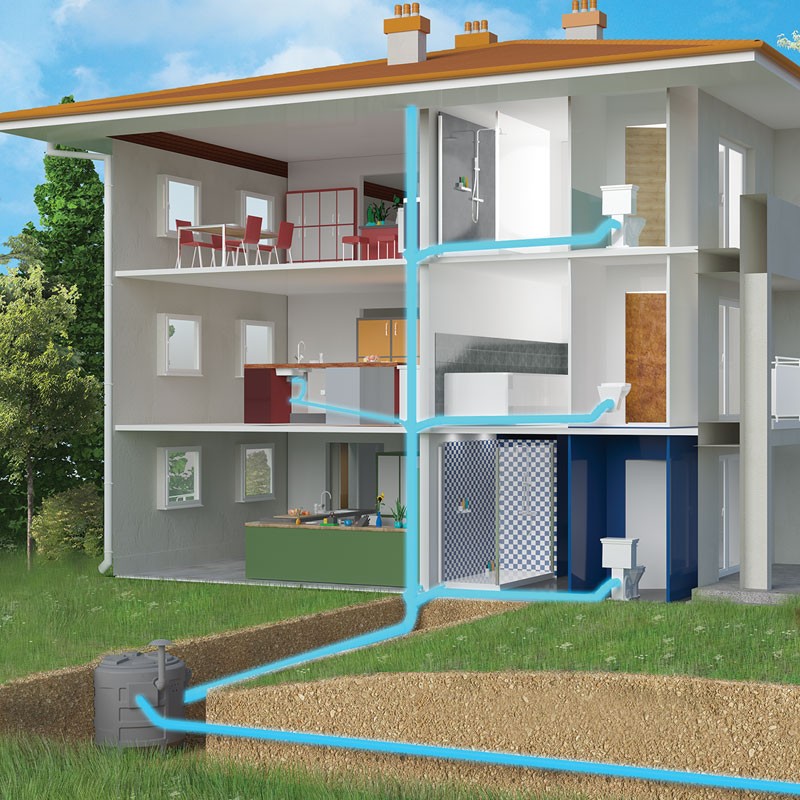

It is designed to take waste from a single residential dwelling with multiple storeys including bathroom, kitchen, utility room etc. It comes with a load balanced cutter with high performance characteristics to prevent clogging. It boasts a powerful automatic motor with quiet operation.
The Sanifos 610 GR has a 610 litre storage tank which is high-density polyethylene and offers high mechanical resistance and is resistant to chemical attack. It offers easy handling for installation below ground level. The Sanifos 610 GR has six inlets that can take up to 125 mm, and it discharges through 40 or 50 mm pipework. The Sanifos comes with a 2 year warranty.

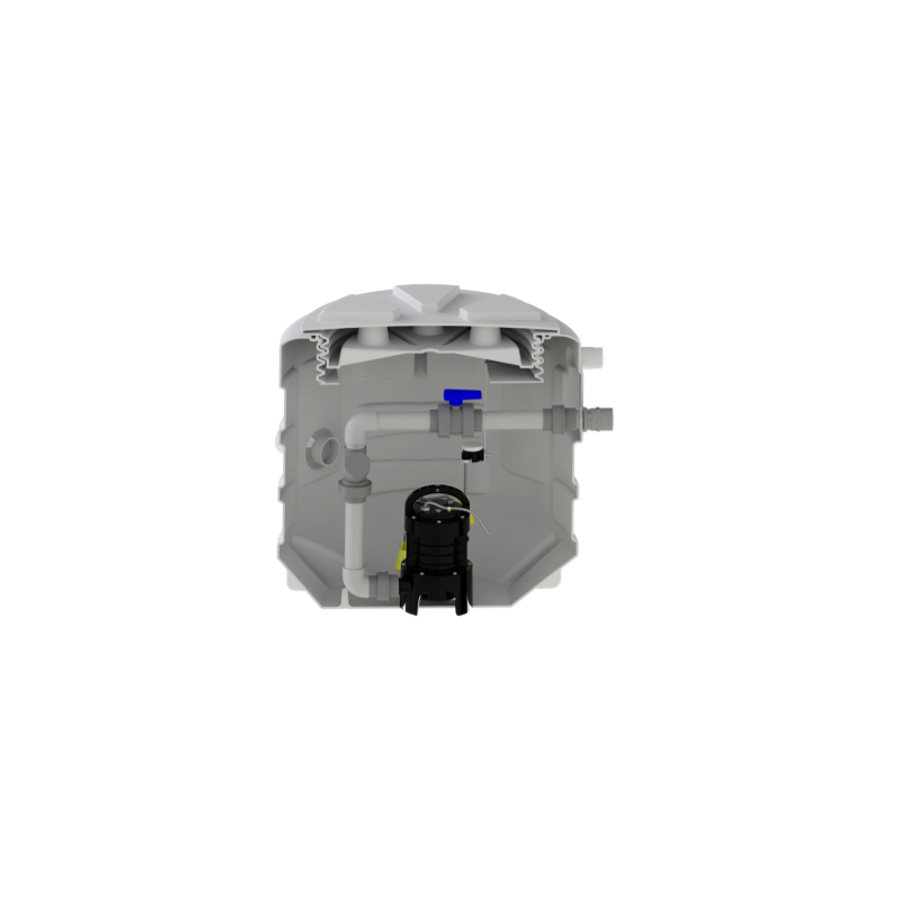

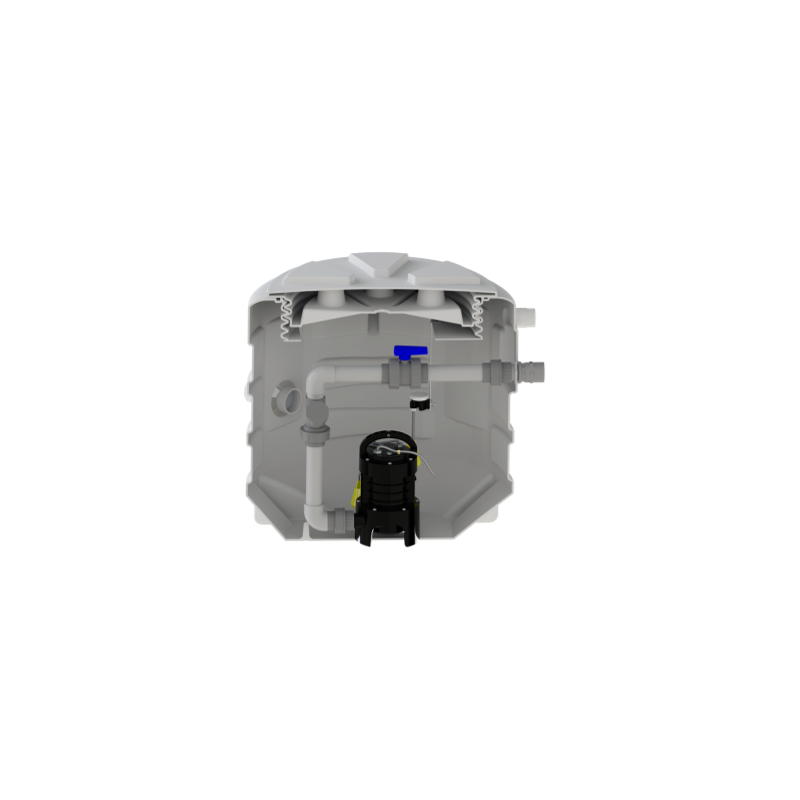

Sanifos 610 GR comes with a smart control box, tank with pre mounted hydraulics s, 2 isolation valves, 2 non-return valves and 3 floats installed in the tank. It also comes with an external wired alarm for added peace of mind. It offers 4 drilling zones to allow access into the tank where needed for your project and extensions are available for the Sanifos should they be needed.
INFORMATION
BARCODE
3308815081687
VOLTAGE
230 V
FREQUENCY
50-60 Hz
TYPE OF CONTROL BOX
Smart
MATERIALS
- Tank : PE
- Pipework : PVC
MIN. INCOMING WATER CONNECTION WITHOUT EXTENSION
325 mm
MAX. INCOMING WATER CONNECTION WITH EXTENSION
1070 mm
POWER OUTPUT P2
1050 W
POWER CONSUMPTION P1
1500 W
NUMBER OF PUMPS
1
ELECTRICAL CLASS
I
MAXIMUM IMMERSION DEPTH
5 m
POWER CABLE: LENGTH
10 m
POWER CABLE: TYPE, SECTION
H07 RN-F 3G, 1.5 mm²
FACTORY CODE
SANIFOS6101GRSPS
MAXIMUM FLOW RATE
16 m³/h
RPM (REVOLUTION PER MINUTE)
2800
MOTOR INSULATION CLASS
F
GROSS WEIGHT
100 kg
MAX. HEAD (Q0)
14 m
ALARM LEVEL
570 mm
USEABLE VOLUME
206 L
EXTERNAL INLET DIAMETER
50, 100 mm
TOTAL VOLUME
610 L
POWER CABLE: LENGTH
10 m
DISCHARGE PIPEWORK
50 mm
EXT. VENTILATION DIAMETER
75 mm
TYPE OF IMPELLER
Grinder
TYPE OF ACTIVATION
Float
DESIGN
-Designed, made and tested in our factory in France and with 60 years of expertise and innovation, the Sanifos offers you peace of mind and with the back up from our service team there’s never been a better time to install a Saniflo -Designed for drainage of single dwellings or multiple storeys, incorporating WC, bathroom, kitchen, utility room -Single phase pump with cutter macerating technology -Pumps up to 11 metres vertical with a maximum of 48 cubic metres per hour flow rate
- Fully packaged including alarm
FLOW RATE PERFORMANCE CHART

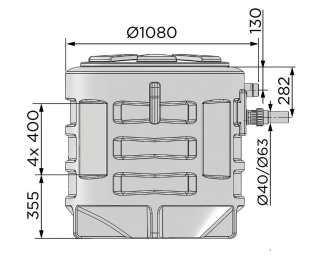

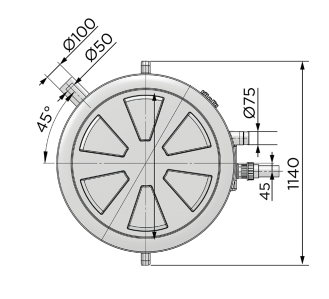

TECHNICAL DRAWINGS
