JANISOL ARTE 2.0 DOOR, WINDOWS
JANISOL ARTE 2.0 DOOR, WINDOWS
Extremely slim face widths and outstanding performance values are the hallmarks of the Janisol Arte 2.0 thermally separated steel system, which has previously been used to manufacture windows and fixed glazing.
Now, the Arte family has been expanded: you can now plan with CE-certified doors for the exterior and interior or use french windows.
INFORMATION
MAXIMUM FLEXIBILITY – MAXIMUM DESIGN FREEDOM
- Single- and double-leaf doors that open inwards and outwards
- Very slim 3D screw-on hinges made from stainless steel
- Various materials
- Designer glazing beads in wet and dry glazing
- Various lock designs including electric strike
- Compatible with the Arte 2.0 and Arte 66 window systems
- Barrier-free threshold designs
- Excellent heat and sound insulation
SLIM. SLIMMER.
With a construction depth of 60 mm, the face width of the leaf and frame is just 45 mm, adding up to a slim 60 mm in the face plate.
MAXIMUM DIMENSIONS
Outside and inside doors in element sizes of up to 1250 mm width x 2500 mm height per leaf (max. 150 kg leaf weight)
WIDE RANGE OF PRODUCTS – WIDE RANGE OF APPLICATIONS
-Janisol Arte 2.0 enables the manufacture of inward or outward-opening doors with and without a fixed side section and/or skylight. -Structures with segmented or round arches or curved fixed glazing are also feasible, as are sheet metal clad doors and fixed glazing. There is a choice of a mortise lock with or without top locking or multipoint lock options.
THE ARTE SYSTEM FAMILY – FOR A CONSISTENT RANGE
With the Arte 2.0 door, Jansen completes the Arte family. There you will find innovations that allow you to achieve an appealing look throughout with one series: for example, the Arte 2.0 window series has been expanded to include the window door and the fixed window. Also available are the Jansen Art'15 door system and the Jansen Art'System window system.
JANISOL ARTE 2.0 CORTEN
Corten steel is weatherproof and, with its special colouring, gives a distinct colour effect to buildings; the material is also easy to process.
PROCESSING – ADJUSTABILITY CONTACT PRESSURE
One striking plate – four adjustment options
Due to its material properties, steel has physical production tolerances. These production tolerances require that processers must have a high level of technical skills if they produce doors, windows or facades, as some of these production tolerances need to be adapted to ensure a visually perfect appearance.

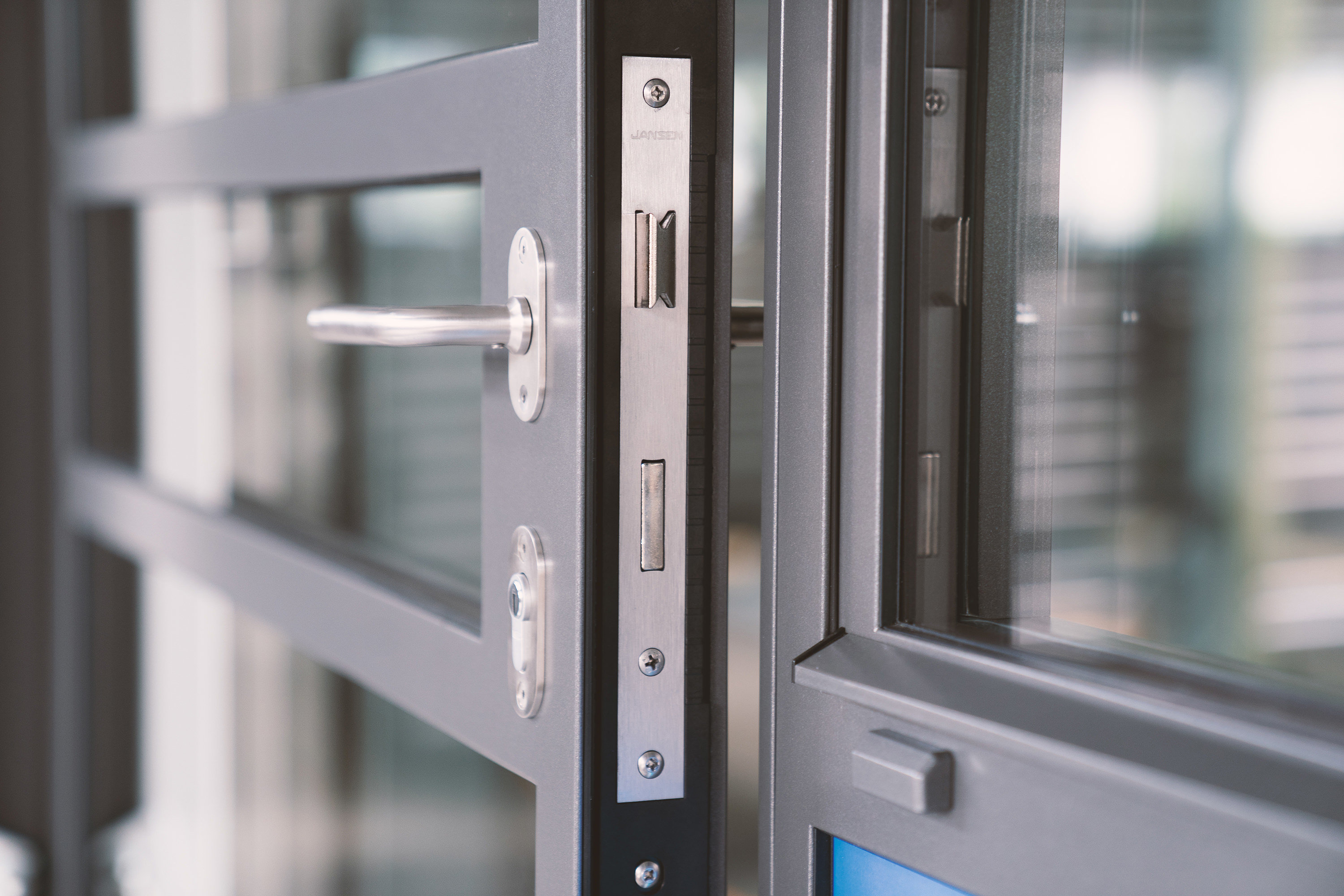

In the case of doors, the production tolerances can result in the mortise lock in the leaf sometimes not engaging with the strike plate in the frame optimally, despite precise workmanship. This means that laborious and costly reworking needs to be carried out.
With the new striking plate 556.411, Jansen has succeeded in saving the processor in having to carry out regrinding work in this instance – the striking plate and the internal fastening bolt can each be turned 180° with only a few handles. By eccentrically arranging the openings, this can compensate for an offset of up to 3 mm.
This also ensure that readjusting doors is easier: the same striking plate can be turned 180° and reinstalled. As a result, there is no need for any manual reworking or to use a new strike plate.
Contact pressure values:
- 17.25 : A 1
- 18.25 : A 2*
- 19.25 : B 1
- 20.25 : B 2
THREE MATERIALS – MORE VARIETY
The further development of the tried-and-tested Janisol Arte system boasts additional versions in stainless steel and Corten steel.
