OS2 65 BREAK WINDOW

OS2 65 BREAK WINDOW

The first thermal break window in precious metals

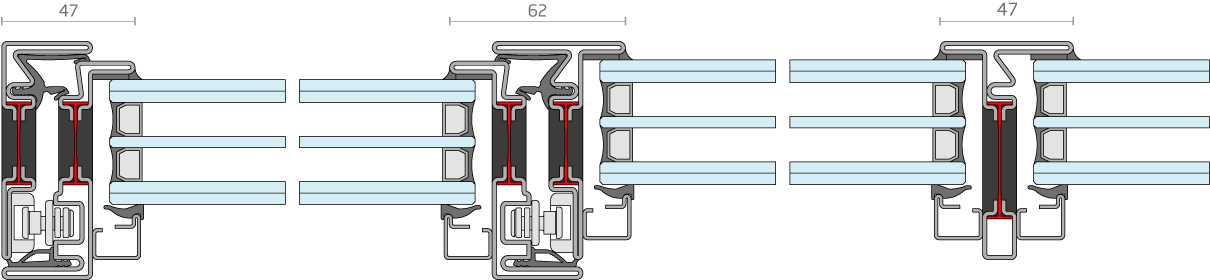

OS2 65 is the thermal break window in precious metals, with minimal profiles of 27 mm, central node between the two sashes of only 62 mm, depth of 65 mm for glass up to 40 mm. The system is the only one that has all types of openings, giving you the option to always have the same section in sight.

INFORMATION

BRAND

Secco Sistemi

USE

-Windows -Doors

APPLICATIONS

-Residential -Commercial

CERTIFICATION

ISO 9001, EN 14351-1

CHARACTERISTICS

- Sustainability
- Choice Of Materials
- Thermal Break
- Versatile System

SIZES

-Profiles : 27-47mm
-Central section : 62mm
-Depth : 65mm
-For glazing up to 40mm

PRODUCT TYPE

Break Window

COLLECTION

OS2

DESIGN

ELEVATION

There are more than 40 profiles to choose from where you can find solutions for any formal or functional project requirement. The profiles can house flush-mounted and non-flush-mounted glass panels, enhance the borders of the mono-coloured area of the windows that make up the front, or render them imperceptible to the eye, putting fixed or openable sashes correspondingly in the design of the façade. To better distinguish the various choices available, we have created two subsystems: OS2 65.1 and OS2 65.2.

65.1

sashes can be easily distinguished in the front view, glass panels which are not flush-mounted between sashes and fixed panels

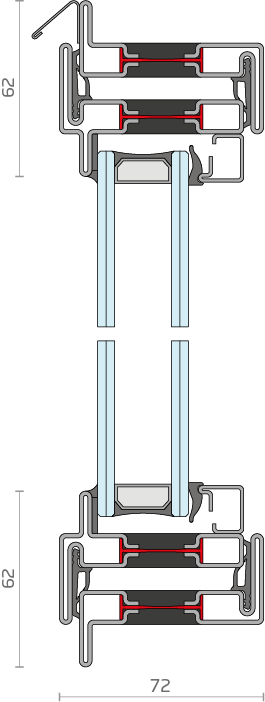

65.2

possibility of nodes which remain the same between sashes and fixed panes, and flush-mounted glazing

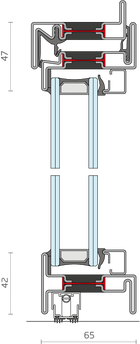

65.1

the glazing is measured by slender profiles with the two-leaved opening evident

65.2

the profiles of the perimeter of the frame have the same design as the central node

65.1

glazing characterized by thin profiles with the central subdivision in evidence

65.2

arched pivot opening, with concealed hinges, the line of the frame remains constant and clean throughout the perimeter

GLAZING BEAD

The small profiles placed in front of the glass to fix it are also design elements of the frame and are produced in the same finishes as the frame

HINGES

Provided in the same finishes as the frame.
In tilt and turn, the hinges can be concealed

-Stainless steel -Corten steel

HANDLES

Discrete, geometric, minimal and in the same finishes as the frame, the handles integrate perfectly into the frame

MATERIALS

OS2 65 is also available in 4 precious metals in the Bi-material combination, combining two different materials between the interior and the exterior

WINDOWS

WINDOW INWARD OPENINGN

EN 14351-1:2016	-	MAXIMUM CERTIFIED PERFORMANCE
EN 12207	Air Permeability	4
EN 12207	Water Tightness	8A
EN 12207	Wind Load Resistance	C4
EN 717-1	Acoustic Performance	43dB
EN 12567-1	Thermal Transmittance	1,38 W/m²K
PAS 24:2016	Burglar Resistance	PAS 24

WINDOW OUTWARD OPENINGN

EN 14351-1:2016	-	MAXIMUM CERTIFIED PERFORMANCE
EN 12207	Air Permeability	4
EN 12208	Water Tightness	8A
EN 12210	Wind Load Resistance	C4
EN 12567-1	Thermal Transmittance	1,38 W/m²K
PAS 24:2016	Burglar Resistance	PAS 24
