GKD Metal Fabrics Omega 1510
Omega 1510 Metal Fabrics
OMEGA 1510 METAL FABRICS

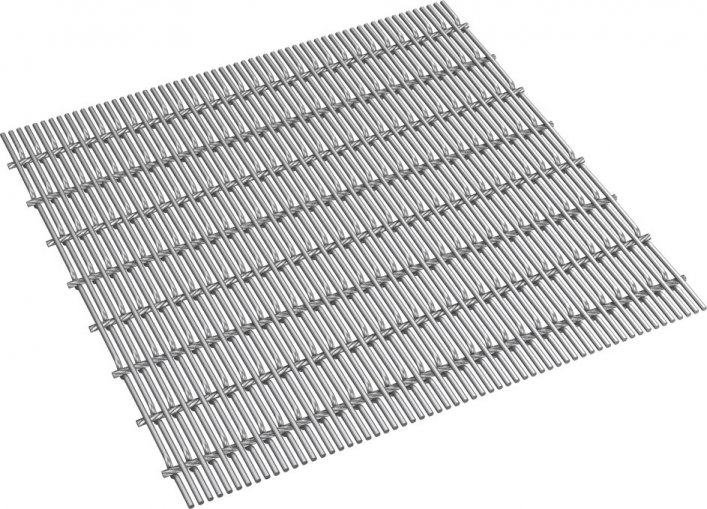

Architectural Metal Fabric
At GKD Metal Fabrics, our Omega 1510 architectural metal fabric provides a secure fit alongside an award-winning structure design.
We are committed to providing sustainable stainless steel resources for every installation and maintenance service. Our metal fabric provides you with sound-dampening, adornment, and sustainability for your next project.
Our Omega 1510 metal fabric application will create a striking result. Browse our Omega 1510 architectural metal fabric today.
information
USE
- External cladding
- Screen
MATERIAL
AISI Type 316 SS
OPEN AREA
35%
PRODUCT SPECIFICATIONS
- Flexible
- One direction
APPLICATIONS
Airport
MAX. LENGTH
Contact GKD
CHARACTERISTICS
- Secure
- Durable
- Etched Graphics
- 35% Open Area
- Vandal-resistant
- Non-climbable
DOWNLOADS
↓ Data Sheet
WEIGHT
1.37 lbs/sqft
SYSTEM COMPONENTS
-Extended loop -eyebolts -Extended loops-hook at top -Flat & angle -Flats with clevis -Frame -Outrigger tension system -Reinforced internal flat bar -Stealth Lok -Stealth Lok Sprung -U-binding frame -WIB - hooks and springs -WIB - eyebolts top and bottom -WIB - hooks and eyebolts
SOLAR CONTROL DATA
GKD-USA offers a complete sunshade technical program. Our engineering team works with you to provide an assessment and application analysis to your specific need or project. GKD Metal Fabric Sunshading Façades offer significant energy saving, comfort, and a pleasant work environment by filtering light and providing transparent views to the outside.
SOLAR CONTROL DATA
- Percentage of Visible Light Transmittance Minimum 0.12, Maximum 0.39
- Percentage of Visible Light Reflectance Minimum 0.26, Maximum 0.33
- Solar Gain Coefficient (SHGC) Minimum 0.11, Maximum 0.28
MAX. WIDTH
20' standard order, 26' special order
SS CABLES
Available also with ss cables and bronze rods up to 62" wide
VIEWS
DETAILS
- Solar Mesh
- Facades
- Etched Surfaces
- Suspended Metal Mesh Ceiling
- Panels Partitions
