FACADE CONNECTION - ECOFACADE P-FIX
FACADE CONNECTION - ECOFACADE P-FIX

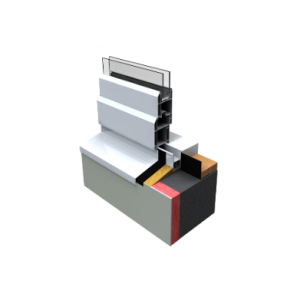

Facade connections waterproofing solution with fast-connect gaskets
Effisus Ecofacade P-Fix is the innovative productivity-boosting solution for waterproofing facade elements’ connections.

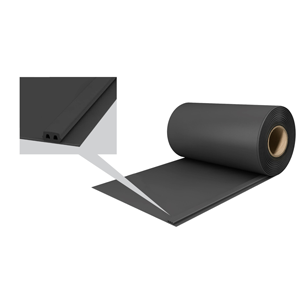

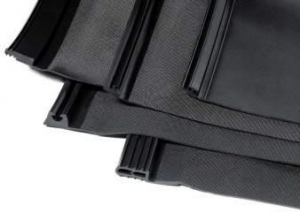

The system’s efficiency and added-value are guaranteed, not only due to its service temperatures or durability, but especially due to its fast-connect vulcanized gaskets.

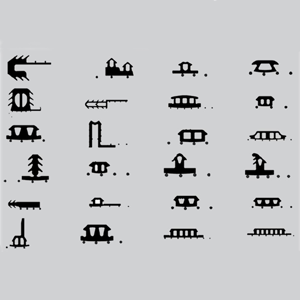

These can be customised to fit any framework, thus providing an unprecedented speed and ease of application, in junction with unrivalled protection and durability.
The system protects buildings’ facade connections from the deteriorating effects of atmospheric agents, and is practically, both waste and error free, during installation. At the same time it maximizes energy efficiency, improves acoustics, and appreciates buildings’ value. Finally, the system has an unbeatable productivity during installation and performance during its service life, since as, for example one can un-clip the membrane’s gasket for maintenance and inspection.
INFORMATION
BRAND
Effisus
COLLECTION
Facade
PRODUCTION
Made in Dubai
VERSION
V 1.2
DOWNLOADS
↓ Technical Data Sheet
↓ Brochure
CUSTOMIZATION
Certified and approved by the world’s most recognized certification offices.
DIMENSIONS
- Length : 20m
- Width : 10mm-1320mm
CHARACTERISTICS
- Customizable widths
- UV/ozone resistant
- Permanently elastic
- 300% elongation
- Waterproof

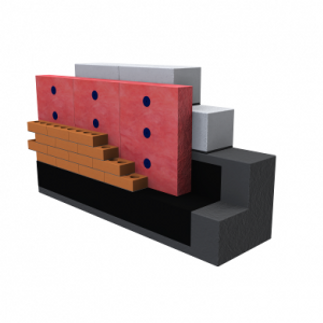

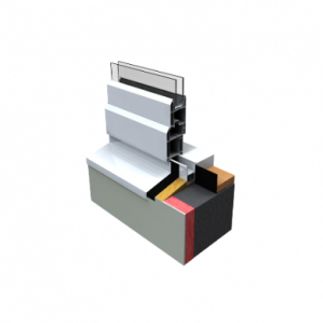

TYPICAL APPLICATIONS
MATERIAL
Ecofacade P-Fix
Ecofacade P-Fix
SUSTAINABILITY
- Expected durability of 50 years
- High impact on the longevity of the building
- Promotes indoor air quality and health of users
- Reduced maintenance requirements
- Recyclable Membranes
- Solvent less Accessories
- Quick-installation option that requires no tapes or adhesives
- Reduction of wastes due to absence of adhesives
- Inspection-friendly
USE
Facade protection
APPLICATION
Construction
PROPERTIES
Waterproof
EFFICIENCY
- Complete and integrated System
- “Cutting Edge Technology”
- 100% impermeable membranes, resistant to UV and ozone’s
- High elongation capabilities : absorbs the building movements from thermal or structural origin Enhances thermal and acoustics efficiency of the building

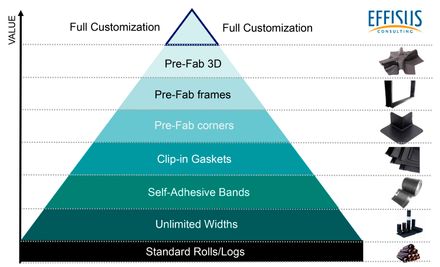

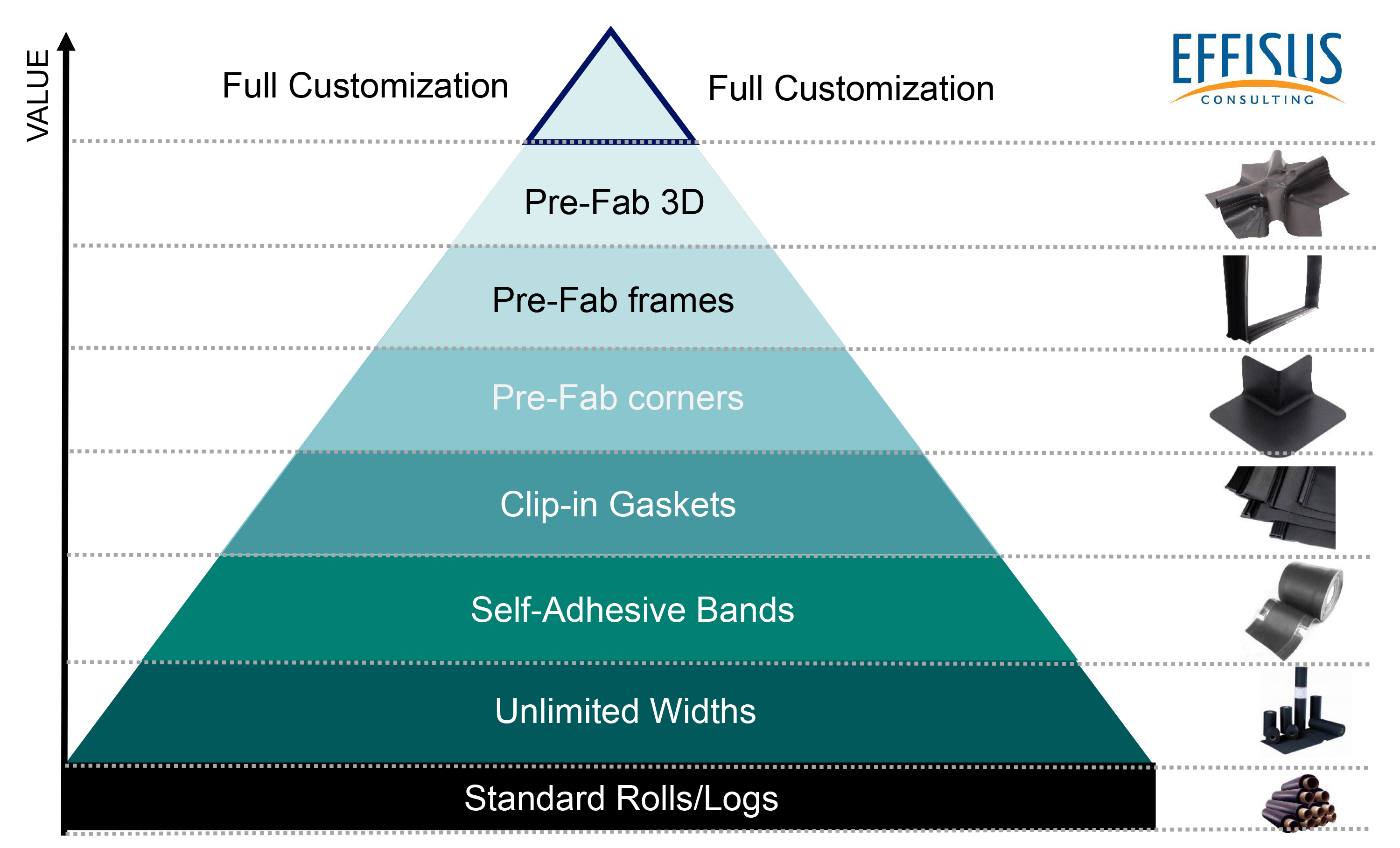

- Possible full customization of the solution to the project typology
- Very low probability of human error during application
- No waiting time between application and the solution’s peak performance
TECHNICAL DATA
| Technical data | Standard | Unit | Value | Expression of results |
|---|---|---|---|---|
| Thickness | EN 1849-2 | mm | 0.60 / 0.75 / 1.00 / 1.30 / 1.50 ± 0.15 | - |
| Length | EN 1849-2 | m | ≥ 20 | MLV |
| Width | EN 1849-2 | mm | 100 – 1300 0,02% | MDV |
| Mass per unit area | EN 1849-2 | g/m² | 1625 ± 25% | MDV |
| Reaction to fire | EN 13501-1 | - | Class E | Pass |
| Resistance to water passage | EN 1928 B | - | W1 | - |
| Water vapour propertires | EN 1931 | - | 60.000 ± 20.000 | MDV |
| Directness | EN 1849-2 | - | Pass | - |
| Resistance to air passage | EN 12114 | m³/(m²xhx50 Pa) | ≤ 0.1 | MLV |
| Tensile strength | EN 12311-1 | N/50mm | ≥ 210 / ≥ 260 / ≥ 350 / ≥ 450 / ≥ 460 | MDV |
| Elongation | EN 12311-1 | % | ≥ 500 | - |
| Tear resistance | EN 12310-1 | N | ≥ 80 / ≥ 80 / ≥ 90 / ≥ 90 / ≥ 130 | MDV |
| Dimension stability | EN 1107-2 | % | ≤ 0.5 | MLV |
| Foldability at low temperature | EN 1109 | ºC | ≤ -30 | MLV |
| Weathering by combinedcontinuos stress trough UV-exposure and hightemperature according toappendix C | Tensile strength, Elongation, Resistance to waterpassage | N/50mm, %, Class w1 | 567 90, 450 15%, W1 - Pass | MDV |
