Eclisse Delta Baseboard
DELTA - BASEBOARD
DELTA BASEBOARD
Inclined baseboard with polyhedral terminals
FEATURES
FRONT VIEW
ECLISSE Delta runs along the wall with elegance and discretion. At first glance, you barely notice its unusual facet near the door.
SIDE VIEW
From the side, the skirting board reveals its true identity and distinctive character: a slope that gives the room three-dimensionality, strength and character.
ECLISSE SYNTESIS® LINE
- Combination with a flush sliding pocket door system

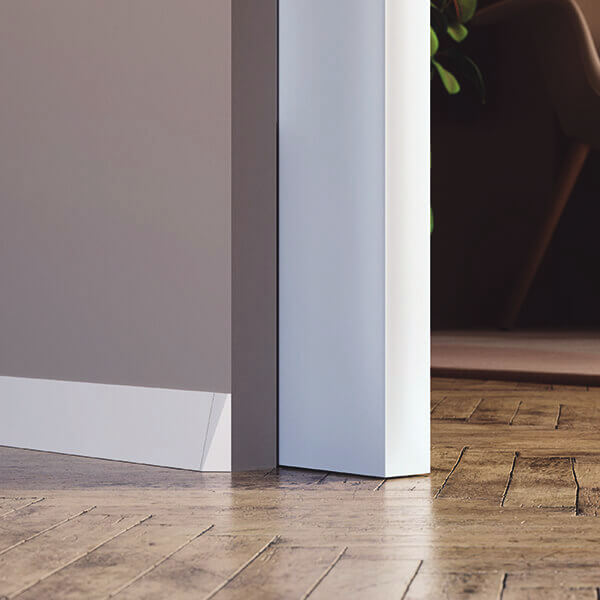

- The gentle inclination of the terminal pieces defuse the abrupt interruption in the wall and accompanies the eye through the passage.
ECLISSE SYNTESIS® LINE BATTENTE
- Combination with a flush hinged door
- Like a perfect defect, the play of volumes and the three-dimensionality of the skirting board interrupt the perfect flatness of the wall.
ECLISSE 40
- Combination with a splayed hinged door
- The sloping surfaces of the terminal elements recall and extend the distinctive splayed profiles of the ECLISSE 40 door frame.
INFORMATION
TERMINAL ELEMENTS
MATERIALS AND DIMENSIONS

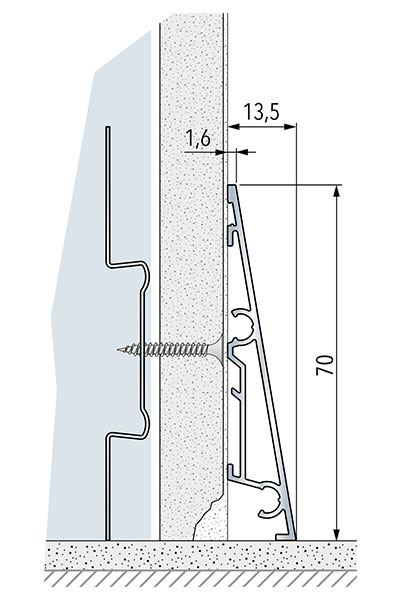

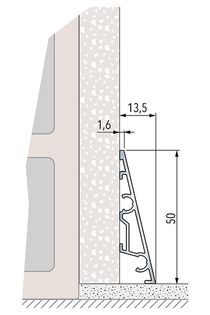

ECLISSE Delta is made of aluminium and is available in two heights, 50 and 70 mm. For both heights, the tapering starts from 13.5 mm at floor level down to 1.6 mm.
TERMINAL ELEMENTS AND JOINTS

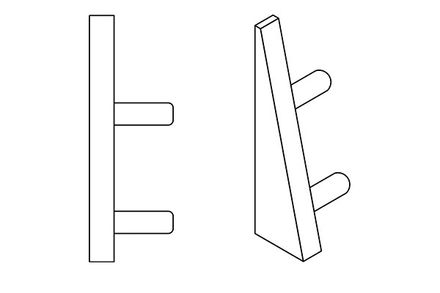

The terminal elements are placed at the end of the aluminium bars in proximity to a door hole. Depending on your taste, you can choose between a straight end profile (the skirting board will end with a perpendicular cut, with no slope) or a slanted end profile (the skirting board will also be slanted along the short side).
BRAND
Eclisse
PRODUCT TYPE
Insulation Accessories
FINISHES
-Champagne -Bronze -Tobacco -White Ral 9010 -Primer-coated
EASY TO INSTALL
The skirting board can be applied directly to the wall, without any special precautions. Simply use silicone for fixing, no other tools are required, nor are any holes drilled in the wall.
PRODUCTION
Made in Italy
USE
Interior
THE INCLINED SKIRTING BOARD
A new baseboard geometry. The new ECLISSE skirting board owes its name to its very shape, a triangle, which in the Greek alphabet stands for the letter delta, but also represents the mathematical symbol for variation, Δ. A symbolic name, since this skirting board changes in shape and, depending on how we look at it, in the play of light and perspective.
DETAIL
JOINTS
APPLICATIONS
