LIQUID THERMOSTATIC HEAD W6/W7 M28
LIQUID THERMOSTATIC HEAD W6/W7 M28
The thermostatic W6 allows an individual adjustment of the ambient temperature. They are proportional and permanent regulators.
These heads react automatic to the variation of the room temperature. If the temperature increases, for example, as an effect of the solar radiation, the liquid sensor limits the water circulation in the heater, reducing the pass of the valve. Around the 60% of the total consume of energy in a standard house of 100m2 is for the heating system. Thanks to the regulation done by the thermostatic heads, easily an energetic saving of the 10% can be achieved, that depending on the installation can reach to a 25%. STH offer thermostatic head of high quality. The W7 range is appropriate for all the installation and compatible with the thermostatic STH and Klimatech M24 valves.
The principal advantages of the W7 head are that it does not need any tool for its assembly in the valve. In addition of the energetic saving, the range of this heat is among the ones with higher efficiency. This head in comparison with the W6 range, is that it is certified according the standard EN 215 and the TELL certification. (W6 EN 125 but does not have the certificate.)
INFORMATION
APPLICATIONS
Construction
USE
Heating solutions
DOWNLOADS
↓ Thermostatic Head W6
↓ Thermostatic Head W7
CHARACTERISTICS
-Radiator Heating -Underfloor Heating -Safety And Water
DETAILS
-Maximum water temperature : +50 ºC
-Minimum water temperature : -10 ºC
GENERAL RECOMMENDATIONS
-Is recommended to locate the head in the horizontal position. -Do not use detergents to clean the head or the body. -Direct sunlight should not fall directly on the head and decorative elements or curtains should not impede the free circulation of air.
INSTALLED POSITIONS
- Upper part of the heater covers.
- Under the windows.
- Behind curtines.
- Where the sun is directly fallinf on it.
DIMENSIONS
DIMENSIONS
- Thermostatic Head Liquid W7 M28x1,5
- Thermostatic Head Liquid W6 M28x1,5
CODE
38323 / 38324
PRODUCT
W7/W6
H
80 mm/73 mm
A
42,5 mm/42 mm
ADJUSTMENTS
- Remove the cap of the valve.
- Place the head in the position 5 with the index in the upper part. Then place the head in the body.
- Thread the nut in the body of the valve with the hand. Maximum force of 10 Nm.
- Select your comfort temperature. The position 3 corresponds to a temperature between 19 ºC and 22 ºC.
HEATING THERMOSTATIC HEAD W6/W7

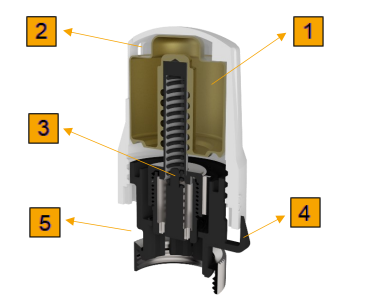

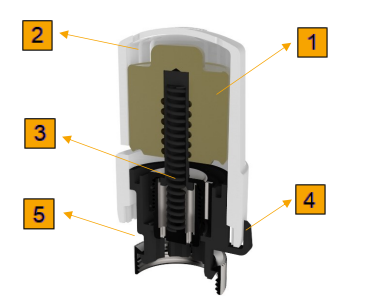

CHARACTERISTICS
- Liquid sensor
- Head
- Spindle
- Indicator
- Adjustment nut
| CODE | PRODUCT | HYSTERESIS (K) | CONDUCTION (K) | TIME OF ANSWER (MIN) | DIFFERENTIAL PRESSURE |
|---|---|---|---|---|---|
| 38323 | W7 | 0,4 k | 0,4 k | 20 min | 0,4 k |
| 38322 | W6 | ≤ 1k | ≤ 1,1k | ≤ 32min | ≤ 1k |
| PRODUCT | SENSOR | AJUSTMENT | CONNECTION | ADJUSTMENT RANGE | COLOR |
|---|---|---|---|---|---|
| W6 | Liquid | 5 – 28 ºC | M28 x 1,5 | 0 - 5 | White |
| W7 | Liquid | 5 – 28 ºC | M28 x 1,5 | 0 - 5 | Blanco |
