LINEA POCKET DOOR - MAREA
LINEA POCKET DOOR - MAREA

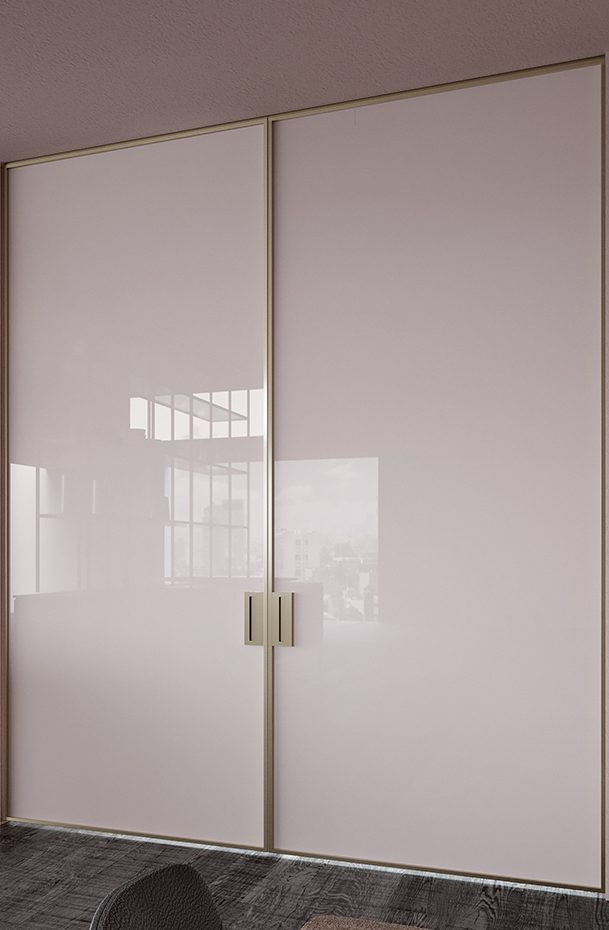

Linvisibile presents its first Pocket Door made entirely of glass. Linea is the new proposal showcasing one of the finest materials of Italy’s manufacturing tradition. Glass is the main element of this sliding door, and not just a top layer to be applied to the panel.
The Linea Pocket Door comprises an aluminium casing and a glass leaf enclosed within a 50 mm thick anodized frame. It is suitable for any environment without cluttering, and enhances spaces by illuminating them with natural light. A sliding glass door is ideal for making interiors elegant and refined.
The anodized frame can be ordered in different colours or in matt lacquering to be combined with the glass sheet, which is available in a variety of finishes, including transparent glass, with or without mesh, RAL rear-lacquered or acid etched glass, and mirror.
features
ASSEMBLE
The Linea Pocket Door is very simple to assemble. Its technology has been designed to facilitate panel assembly and maintenance. Panel installation and adjustment can be completed by means of two screws, without ever handling the leaf itself.
STRUCTURE
The product features a rigid and sturdy structure. The aluminium casing is almost as solid as the wall surrounding it. As a result, the structure is protected against the slightest bending, and the plaster and/or the finish are not subject to unsightly cracking.
DOOR
The glass Pocket Door is also equipped with square tubular spacers, used as stiffening elements to keep the entire structure squared during assembly and to ensure the perfect alignment of the casing with the closing side.
SURFACE
The flush recessed-grip handle includes a plate on the panel surface and is anodized in the same colour as the frame. It can be ordered to close by hook lock (Bonaiti) and pulling tongue on the edge.
SCREWS
This new sliding glass door features an innovative and highly performing sliding system. Thanks to the patented guide-body, any operation only requires adjusting two screws located at the upper corner between crossbar and closing side, which remain accessible even when the door is put to use.
PANEL
The carriage installed inside the guide is equipped with bumpers that brake the opening and closing of the panel with soft, precise and surprisingly silent movements. Moreover, the guide also eliminates any vibration from sliding, which could damage the plaster. The directional system keeps the centre line of the door while sliding, and, as a result, the panel remains perfectly stable and does not wobble during opening/closing. In the open position, the panel is completely flush with the wall with the containment pocket.
INFORMATION
USE
- Pocket Door
- Alba Hinged Door Brezza
- Vertical Pivot Doors
CERTIFICATION
UNI EN 1634-1:2009. BS EN1634-1:2009
PRODUCTION
Made In America
APPLICATIONS
- Retail
- Office
- Residential
CHARACTERISTICS
Concealed Hinges, 360 Degrees Rotation, Can Be Coated With Almost Any Type Of Material
DIMENSIONS
LINEA POCKET DOOR INCLUDES:
- An aluminium frame for 105, 125 and 150 mm thick walls, which serves as casing for containing the glass panel. Thanks to the special profiles of which it is composed, the casing structure is almost as firm as the walls themselves. The high solidity of the structure prevents even the slightest bending, thus avoiding unsightly cracking and any plaster and/or finish from peeling off.
A GLASS LEAF CONSISTING OF:
- 8 mm (or 4 + 4 mm) thick glass sheet complete with anodized plate matching the frame, to house the flush recessed handle and/or the lock;
- 50 mm thick anodized and/or matt lacquered aluminium perimeter frame. For widths less than 800 mm the bumper is present only for the closure, a damped stop is present when opened;
- Highly performing removable sliding guide;
- Lower directional system.
THE LINEA POCKET DOOR IS AVAILABLE AS SINGLE OR DOUBLE LEAF VERSION IN THE FOLLOWING SIZES:
*Width: 600 to 1200 mm – Height: 1900 to 2800 mm for 105 mm thickness
*Width: 600 to 1200 mm – Height: 1900 to 3000 mm for 125/150 mm thickness

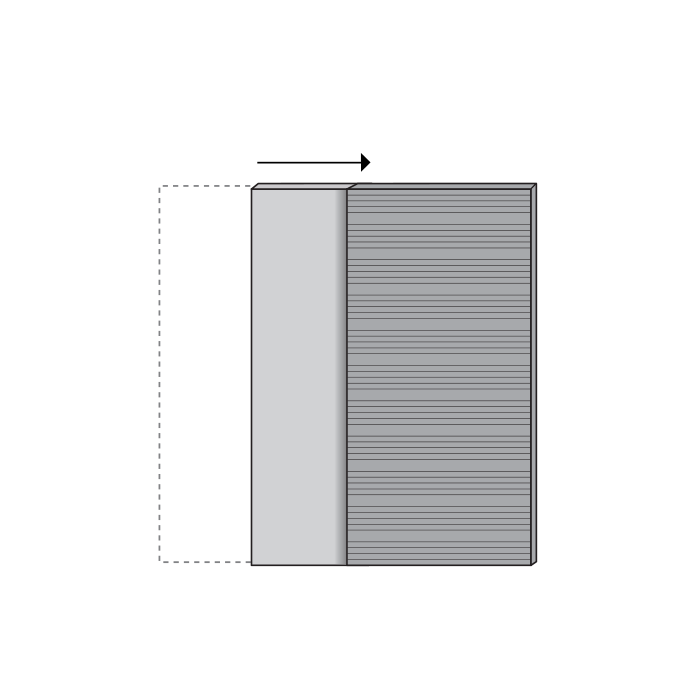

SHAPES AND OPENINGS

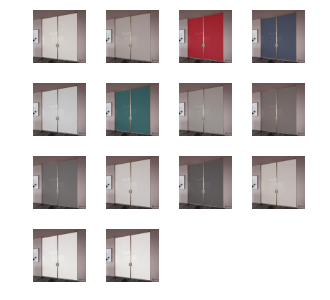

Finishes

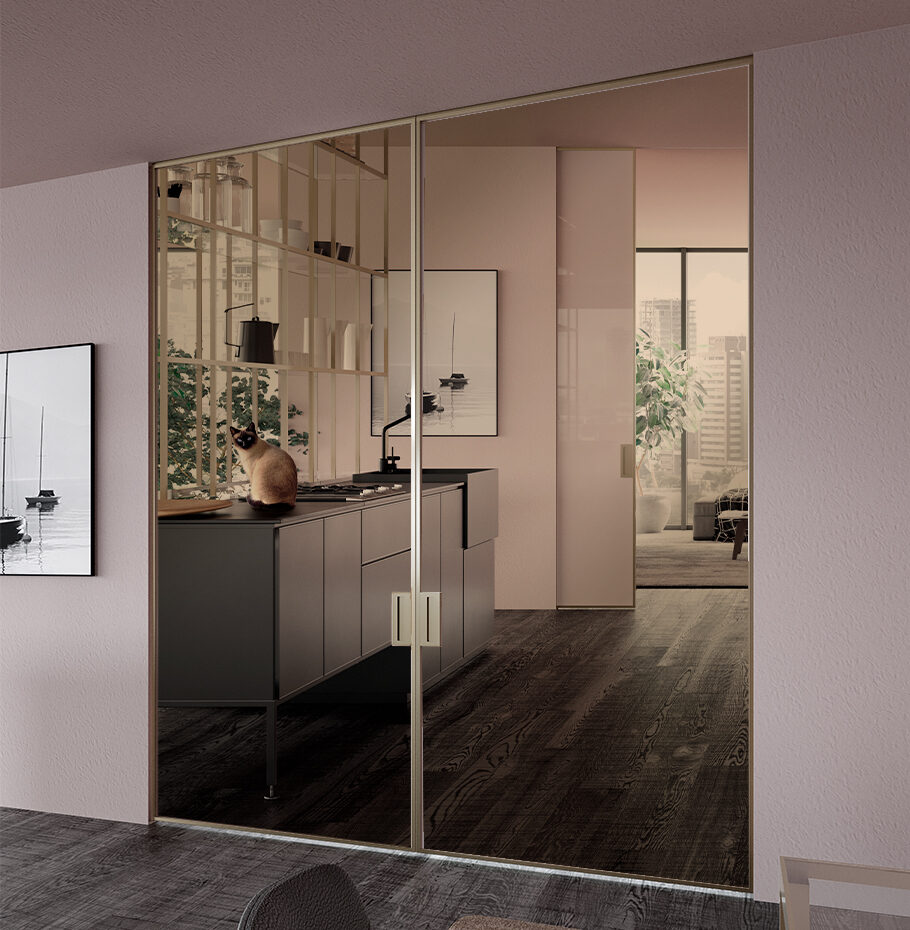

CLEAR GLASS
A noble and precious material capable of giving refinement to any environment. This type of glass has maximum transparency, which allows natural light to pass from one environment to another and a clear view of what is behind the door.
Clean and minimalist, clear glass makes spaces wider and brighter, and offering a valid alternative to classic masonry walls.
RAL RETRO-LACQUERED GLASS
Elegant and bright with a matt or glossy effect. Retro-lacquered glass allows playing with reflections and colours.
It is characterized by the overlapping of two sheets within which a lacquered layer that can be ordered in any available RAL colours is sandwiched. It is particularly suitable for partitioning spaces requiring more privacy.
PERFORATED SLAB
Thanks to a specific and highly engineered process, the perforated slab can come in different patterns and geometric motifs adapting to the most various needs and aesthetical demands.
The slab shades follow the palettes of RAL lacquering and anodisation in fine-grained brushed, coarse-grained, and matt polished colours. With the perforated slab, the elegant "see-through" effect reaches the maximum level of customization.
ANODISATION
The anodized aluminum frame is available in four standard fine-grained brushed colors, with a choice of warm and cool shades. Other coarse brushed or matt polished colors are available upon request.
This treatment, by which the metal surface is coated with a protective oxide layer, protects the frame from corrosion, also giving it unique aesthetic properties.
ACID-ETCHED GLASS
Achieved with coupling two sheets within which an acid-etched layer is sandwiched, thus producing a satin-polished texture with a “see-through” effect. The glass surface thus loses its shine, while always ensuring the passage of light.
The result is a glass which, after undergoing a particular chemical treatment, reduces transparency by blurring the view of the other side of the panel.
MIRROR
Mirrors are obtained from a glass manufacturing process which yields the traditional reflective characterist.ic
Mirrors are valuable elements that added to interiors give the optical illusion of larger and more radiant spaces.
CLEAR GLASS WITH MESH
This option features surprising combinations of glass enhanced with fabric or metal inserts. This laminated glass makes it possible to create a variety of stylistic and sensorial solutions.
Depending on the material selected inside the layering, it is possible to achieve different transparency effects, which can enhance and complement any furnishing style.
