Saniflo Sanivite Greywater Pump
SANIVITE GREYWATER PUMP
SANIVITE GREYWATER PUMP
Ideal For Kitchen, Bath, Outdoor Bbq Kitchen Or Laundry
Ideal domestic solution for installing multiple plumbing fixtures
- Sanivite+ has up to four inlet connections
- Flow rate of 110 L/min
- Handles water temperature of up to 60 degrees for short periods( 5min)
INFORMATION
SHOWER TRAY HEIGHT
150 mm
DISCHARGE PIPEWORK
32 mm
APPLICATION
- Bathroom
- Toilet
- Basin
- Shower
- Bathtub
MAXIMUM ABSORBED CURRENT
2 A
MAX. FLOW RATE
88L/min
VOLTAGE
220-240 V
MOTOR POWER
400 W
CHARACTERISTICS
- Quiet Technology
- Large Tank Capacity
- Neat And Functional Design
- Durable Motor
WEIGHT
6.4 kg
IP RATING
IP44
MAX. TEMPERATURE OF THE PUMPED LIQUID
40°C - 60°C intermittently (max 5 mins)
FREQUENCY
50 Hz
SWITCHING HEIGHT
95 mm
DETAILS
- Discharge Length : 50 m
- Max. Head (Q0) : 5 m
- Shower Tray Height : 130 mm
- Inlet Pipework : 40 mm
DIMENSION
- Length : 373 mm
- Height : 275 mm
- Width : 185 mm
ELECTRICAL CLASS
I
NOISE LEVEL
42 dB(A)
FEATURES
-Only for domestic application -Powerful, quiet pump -Low activation level (95 mm) -Compact for concealed installation -Carbon filter included to neutralise odours -Working temperature of 35°C. -Will handle up to 60°C for short periods (5 minutes)

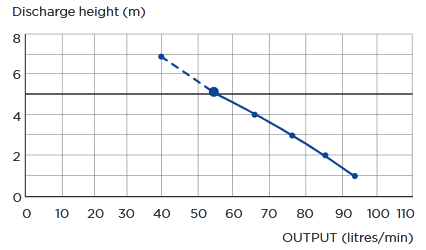

FLOW RATE PERFORMANCE CHART
VERTICAL/HORIZONTAL PERFORMANCE
Increase size of horizontal run by one pipe size after 5m. All horizontal pipework requires a minimum of 1:100 fall.
