Linvisibile Alba Filo 10 Hinged Door
ALBA FILO 10 HINGED DOOR
ALBA FILO 10 HINGED DOOR

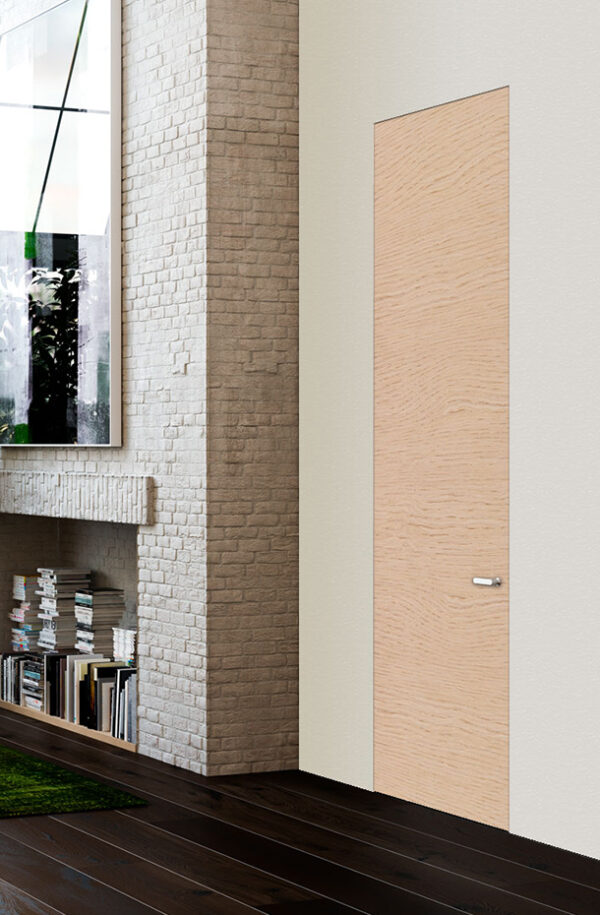

Filo 10 Hinged door is the exclusive door, which thanks to a panel thickness of 102 mm, allows a perfect flush with the wall on both sides of the panel.
The product stands out for only a 3 mm perimetral gap between the panel and the wall. Like all Linvisibile products, Filo 10 Hinged door is distinguished by the use of concealed hinges and the absence of door frames or jambs to achieve seamless continuity between wall and door.
It can be coated with almost any type of material (metal, stone, leather) to create special atmospheres, in a tasteful way. There are lacquered (glossy or matt) and wooden versions offered as well.
FEATURES
FILO 10 HINGED DOOR CONSISTS
– Extruded aluminium frame (EN AW 6060 alloy – Anticorodal 063) that replaces the frame (outer frame-posts) and adapts to walls and plasterboard walls with different thickness. Prepared for Pull or Push openings. Paintable with water based colors of good quality, enamel paints etc. It can be manufactured in a wide range of available shapes and sizes. Assembly of the frame with MDF triangles put on the two upper corners and from jamb to jamb;
– Concealed hinges: invisible hinges totally disappearing, for doors with aluminum frame. UL certification, 160 kg capacity, 180 ° opening, front length 240 mm . Comply to DIN, sliding bearing functioning. Adjustable hinge on three axes. Standard finish satin chrome, other finishes on demand. The Concealed door closer is perfect to be installed on the hinged system
– A panel with hollow-core structure,102 mm thick, made with a perimeter frame in solid wood with high-density honeycomb interior, finished with 2 MDF sheets, 5 mm thick, on each side.Rebates on the perimeter and seals in PVC. Class E1 low formaldehyde emission;
– Concealed hinges: invisible hinges totally disappearing, for doors with aluminum frame. UL certification, 160 kg capacity, 180 ° opening, front length 240 mm . Comply to DIN, sliding bearing functioning. Adjustable hinge on three axes. Standard finish satin chrome, other finishes on demand. The Concealed door closer is perfect to be installed on the hinged system
INFORMATION
CHARACTERISTICS
Concealed hinges, Can be coated with almost any type of material.
BRAND
Linvisibile
USE
Interior
APPLICATIONS
- Retail
- Office
- Residential
PECULIAR TECHNICAL DETAILS
- It is possible to produce the frame without the header;
- It is possible to apply a concealed door closure.
- It is possible to prearrange the panel for the introduction of a mirror or glass;
PRODUCTION
Made in Italy
TYPE
Hinged door
SHAPES AND OPENINGS
DIMENSIONS AND PERSONALIZATIONS
Filo 10 hinged system is available in the following sizes (clear width, single leaf):
– All width from 700 to 1200 mm;
– All height from 1900 to 3500 mm;
- Available in single leaf as well as double, it can be coated with wallpaper, trims, gobelin, decorative woods, decorations,ceramics, skirting board and mirrors.
FINISHES
LACQUERING
The lacquer is one of the most elegant forms of panel finishes. Precious surfaces, shining in every possible color to give the inhabited a tone of exclusive elegance.
Lacquers by Linvisibile refer exclusively to RAL classic K5 sample book. Lacquered colours are compliant to matt/glossy effect requirements: matt lacquered finish: 10 gloss; glossy lacquered finish: “100” gloss.
WOOD VENEER
A traditional material adapted to the most modern processes. The characteristics of veneered wood are manifold: resistance to scratches, heat and light; hassle-free maintenance and cleaning; rich range of wood types, colours and grains, and high standards of eco-sustainability.
For this finish, we relied on a leading Italian company in the world of Engineered wood, which offers maximum quality, a commitment to preserving the environment and attention to design. For those who want to make a conscious and responsible choice in total respect for the planet.
LEATHER
Natural product with high durability and precious aesthetic characteristics. A prestigious choice to cover surfaces with original textures that yield tactile sensations, strength and elegance.
A material synonymous with Made-in-Italy excellence in a product that guarantees maximum customisation and meticulous attention to every detail.
LAMINATE
A new generation of smart materials for the typical vertical and horizontal applications found in interior design. The laminates we have chosen for our products have unique features.
Thanks to the innovative processing they undergo, they are moulded with fingerprint-proof surfaces, soft to the touch, matt and extremely resistant, so as to withstand bumps and scratches, as well as any possible damage from solvents and reagents typically used in household cleaning products. For the laminated finish, we relied on the collections by three cutting-edge brands, such as Fenix®, Homapal® and Formica®, which offer maximum quality and a wide range of colours.
FABRIC
An inimitable material that enhances the beauty of the panels, yielding an extraordinary tactile experience. Manufactured with cutting-edge technological processes, the fabric guarantees unique aesthetic, technical and sensorial performances.
Fabric offers at once elegant and refined yet light, sturdy and durable solutions. For this finish, we have entrusted Alcantara®, which embodies the new paradigm of contemporary lifestyle sought after by those who look for functionality and the emotion of beauty, while also respecting ethics and the environment.
MOULDED PANEL
Elegant moulded panel with high level of accuracy on all door panels for rich and sumptuous decorations giving interiors a unique touch.
Panel with hollow-core structure (honeycomb), made with a perimeter frame in solid wood finished with 2 mm MDF sheets on each side, where moulded panel works, to choose between the models quoted or on demand, after verification of feasibility.
WOOD ESSENCE
Quality surfaces, exclusive of refinement. Traditional and modern blend in higher quality woods, durable and prestigious.
No material is able to transmit the heat as the wood essence. Only the wood essence gives environments unique atmospheres, grain and different levels of density.
METAL
Surface shine, of metal. Amazing finishes that can be applied on all doors, available for the designer to give form to a space that reflects his/her imagination.
Metal plates to choose between copper, brass and aluminium, of a variable thickness in function of the required finishing, applied to the facades oh the honeycombe panel by glueing.
