RIDGEGLAZE FIXED SKYLIGHT
RIDGEGLAZE FIXED SKYLIGHT

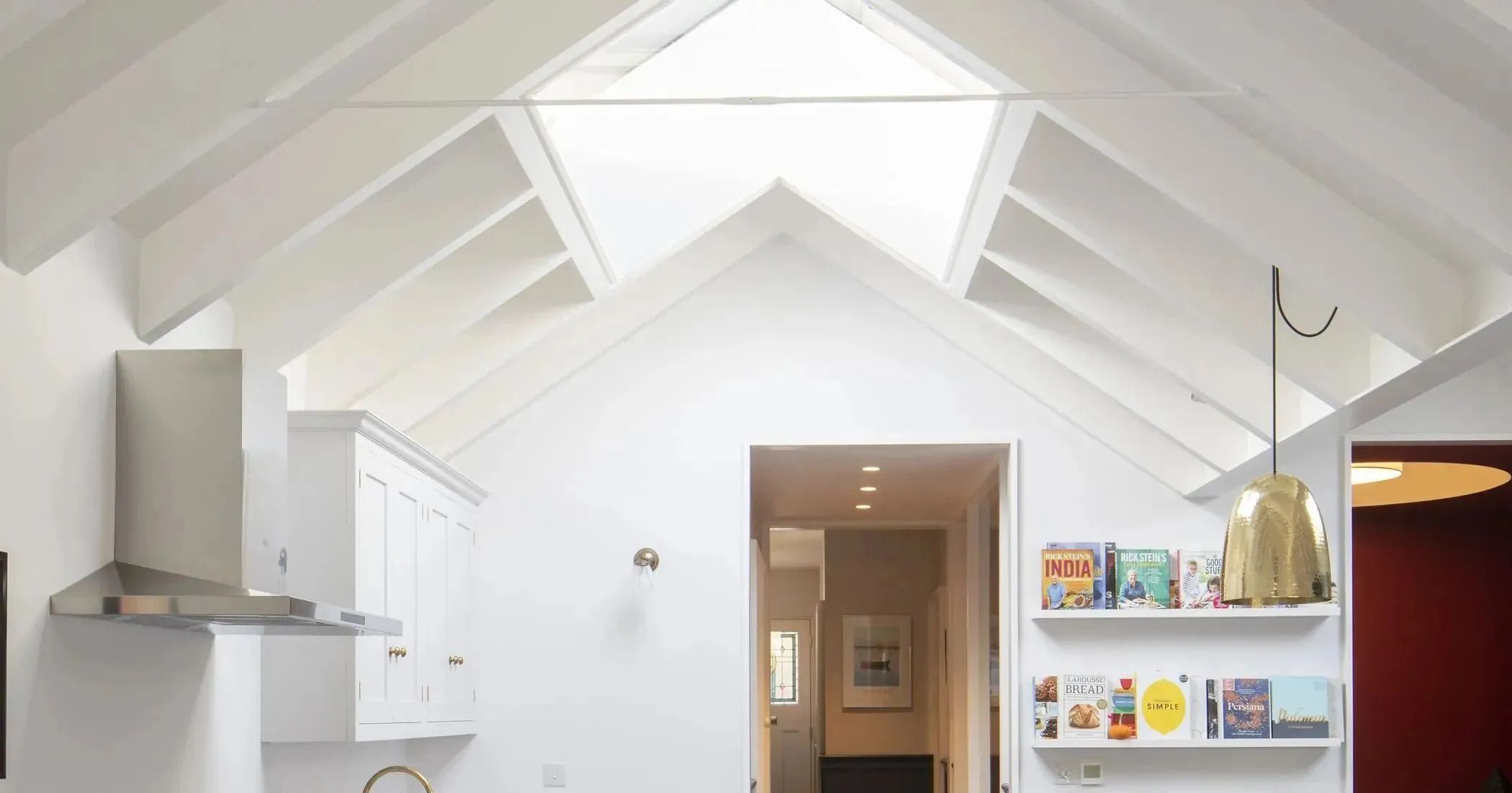

Our Flushglaze skylight range is not just limited to flat roofs single pitch roofs. Glazing Vision have developed a ‘ridgeglaze’ system that is designed to be installed over the apex of your roof increasing daylight and sky only views on either side.
INFORMATION
CERTIFICATION
Secured by Design to LPS2081/1, approved by the Loss Prevention Certification Board.
STANDARD COLORS
Qualicoat approved RAL 7015 slate grey outer, no inner framework is visible.
GLAZING
A wide variety of glazing specifications are available for this product. Your technical sales advisor will be happy to answer any questions regarding specific glass specifications or glazing performance requirements. Otherwise, quotes include suitable and cost effective glazing proposals.
OPTIONS
- Standard pitch from 10° to 50°
- Available in bespoke, sizes and glass specifications
KEY FEATURES
- Dual pitch apex design
- Standard pitch from 10° to 50°
- No visible internal framework
- No external capping
- Available in bespoke, sizes and glass specifications
- Heat soak tested low e safety glass as standard
EASY CLEAN COATING
A coating applied to the external face of the glass that facilitates water run-off. Helps the glass stay cleaner for longer and makes cleaning easier.
CURB TOP TRIM
Cover designed to mask the top of curbs which may be visible through glass when viewed from above. Includes detail to recess standard drywall.
INTENDED USE
Fixed skylight to provide natural daylight and weather resistance. The product is fixed and does not open.
STANDARDS
- Secured by Design to LPS2081/1
- Approved by the Loss Prevention Certification Board
- Heat soak tested low e safety glass as standard
DESIGN
The Ridgeglaze is designed to be installed incorporating a standard pitch ranging from 10° to 50°. For pitches outside of this range, or for larger scale units, Glazing Vision can design and manufacture a custom product specifically tailored to fit your building. We have even manufactured retractable sliding versions of the Ridgeglaze allowing the whole skylight to be opened up.
FEATURES
The Ridgeglaze is a variant of our Flushglaze system, which means it features the same low profile design, frameless internal views and externals with no capping which reduces dirt build up.
This means the Ridgeglaze skylight has all the same qualities you get from our usual flat fixed skylight design: no visible internal framework; low emissivity heat soak tested glass as standard with the option of triple glazing; custom-built to the size and pitch of the roof you want to transform with natural light.
PERFORMANCE AND WEATHERTIGHTNESS
The aluminum frame of the product employs a dual hardness epdm insulating gasket to thermally isolate the frame from the interior of the building. Structural integrity is assured through the use of finite element analysis (fea) and testing.U-factors are calculated for each product and will be supplied in our quote. Further information and specific performance details can be obtained from your technical sales advisor.This product is sealed to the curb using silicone and fixed in place with structural fixings which are concealed by a clip-on cover leaving a sleek external finish.
