Saniflo Macerating Toilet Suite - Sanicompact

MACERATING TOILET SUITE - SANICOMPACT

Saniflo Macerating Toilet Suite - Sanicompact

MACERATING TOILET SUITE - SANICOMPACT

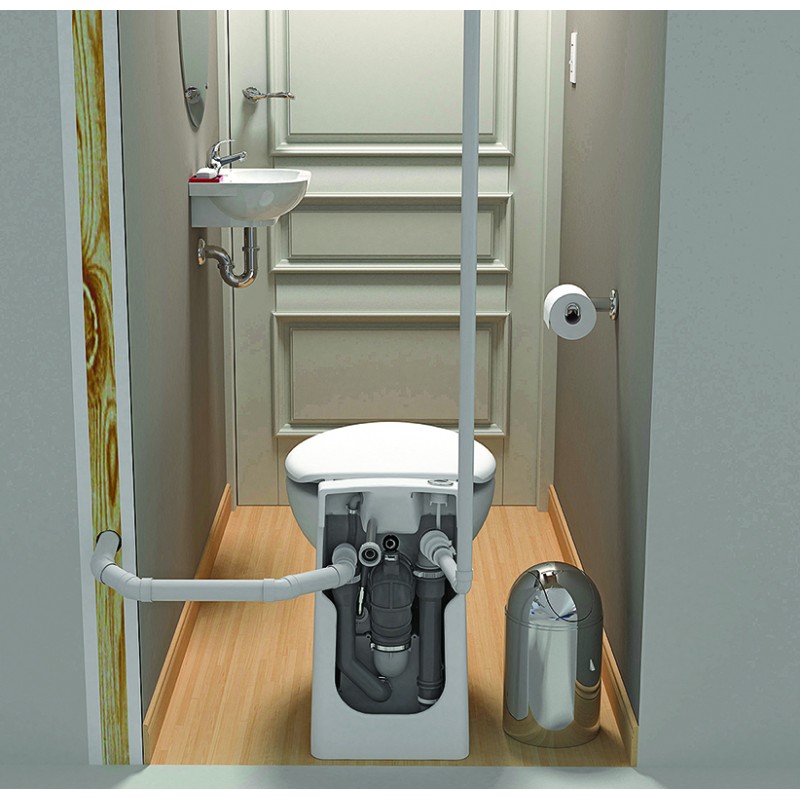

Sanicompact is the first all-in-one macerating toilet suite. Adding a toilet is now as easy as one product. The compact design enables a toilet to be added anywhere, making Sanicompact ideal for a powder room or laundry addition , where plumbing is not immediately available.

- Ability to add a basin
- 240v plug connection
- Low water usage

The Sanicompact is a compact toilet suite with built-in macerator and an additional inlet so you can install a hand basin for a complete toilet even in the smallest space. The Sanicompact requires 1.7 bar dynamic incoming water pressure (i.e. measured whilst the water is flowing into the Sanicompact and not static pressure).

Saniflo Macerating Toilet Suite - Sanicompact

The Sanicompact doesn’t need a cistern and it discharges waste through 25mm pipework. It has a push button flush connected to the domestic mains water supply and it has a water saving flush system. With a soft close seat, quiet motor, no need for a cistern and its super-compact design is perfect for creating an en-suite

Only 43cm deep, it is ideal for small spaces: studios, cupboards, below stairs, etc. Its 25mm discharge pipe diameter ensure discretion. Fitted with the new economic dual-flush "ECO+", the Sanicompact C43 consumes only 1.8L for half flush and 3L per full flush.

INFORMATION

MOTOR POWER

550 W

NUMBER OF ENTRIES

1

INLET PIPEWORK

40 mm

DISCHARGE PIPEWORK

32 mm

CHARACTERISTICS

- Integrated macerator
- Cistern-less flush
- Water-saving
- Soft-close toilet seat
- Quiet motor
- Compact design

Saniflo Macerating Toilet Suite - Sanicompact

VOLTAGE

220-240 V

NOISE LEVEL

51 dB(A)

Saniflo Macerating Toilet Suite - Sanicompact

DISCHARGE LENGTH

30 m

FREQUENCY

50 Hz

APPLICATIONS

- Bathroom
- Small spaces
- Powder room
- Laundry

DIMENSIONS

- Height : 445 mm
- Width : 430 mm
- Length : 390 mm
- Weight : 23.2 kg

Saniflo Macerating Toilet Suite - Sanicompact

WORKING WASTE WATER TEMP

35°C

ELECTRICAL CLASS

I

USE

Toilet

MAXIMUM FLOW RATE

105 L/min

DUAL FLUSH

1.8 / 3 L

IP RATING

IP44

OPTIONS

Optional Sink

MAX. HEAD (Q0)

3 m

PERFORMANCE CHART

- Flow Rate Performance Chart - Vertical/horizontal Performance

Saniflo Macerating Toilet Suite - Sanicompact
Flow Rate Performance Chart
Saniflo Macerating Toilet Suite - Sanicompact
Vertical/horizontal Performance
