Create amazing screens with timber or aluminium
Traditionally screens have been difficult to integrate into a project without the use of unsightly fixings to combat the natural movement of the battens.
We are experts in working with timber, which means that we understand how to use our proprietary systems to best account for this movement.
With this in mind, we have adapted our popular batten system to allow for beautiful timber and aluminium screens which prevent unwanted movement and robust fixings.
INFORMATION
MATERIAL
Timber
PRODUCT
Sculptform Click-on Screen
COATING
Clear Poly
BATTEN SIZE
30 x 80 mm
CHARACTERISTICS
-Concealed Fixings -Timber Or Aluminium Battens -Easy Installation -Minimum Order Applies.
HOW IT WORKS

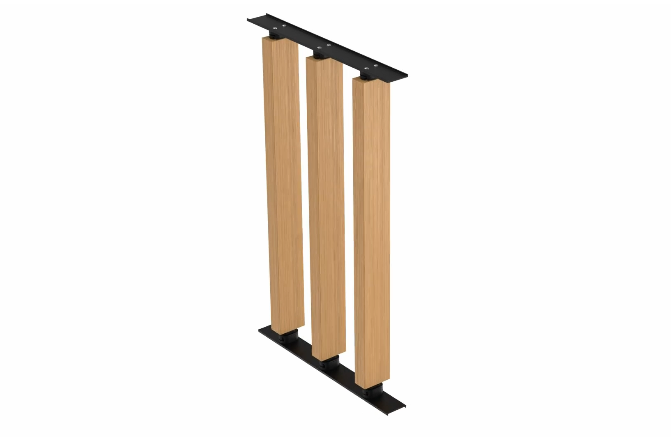

The fixing method for our screens is simple. The click-on connection features a button fixed to the top and ends of the batten which clicks securely into engagement in the supplied tracks.
Site variation and building and thermal movement are factored into the design, with the top bracket fixed into place and lower brackets able to slide. For larger spans, a mid support rod is available as an extra fixing.
CERTIFICATION
Group 1 fire rating for aluminium battens
SPECIES
Spotted Gum
BATTEN SPACING
100mm

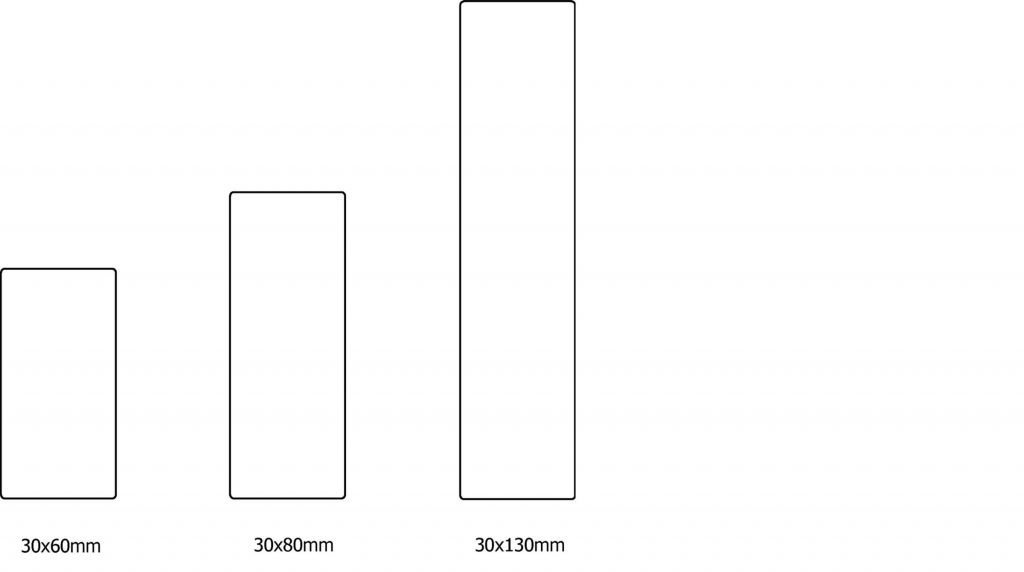

PROFILES
We offer a range of profiles in either timber or aluminium to meet the required design intent. We love a challenge, so if you have a project-specific profile in mind, contact us to speak to one of our passionate consultants.
A range of species, coating and finishing options are available for both timber or aluminium. If a Group 1 fire rating is required, any aluminium finish is acceptable.
LENGTHS AVAILABLE
Each species of timber has a maximum length available, as the particular tree only grows to a certain size. These lengths set the maximum height achievable with a timber screen. For applications requiring longer lengths our wrapped aluminium range is a better option, with up to 6m lengths available.
| SPECIES/MATERIAL | MAXIMUM SET LENGTHS |
|---|---|
| Spotted Gum | 3.0m |
| Australian Ash | 3.0m* |
| American Oak | 3.0m* |
| Aluminium | 6.0m |
MID-SUPPORT ROD SYSTEM
For applications which require a large distance between fixings, a threaded rod and spacers can be used as an extra fixing point. The rod runs through pre-drilled holes and uses spacer sleeves to help prevent movement and keep the battens straight. This extra fixing is provided by Sculptform and included in all pricing for screens. When calculating the span between fixings with the tables above, please note the rod is included as a fixing.
SPANS
TIMBER BATTENS
While designers love timber for its warm look and variation in colour, it’s also known to have issues with movement. As a natural material, timber expands and contracts due to moisture levels in its environment. Screening applications are particularly vulnerable to movement, with the small number of fixings holding the timber in place. Larger battens will be more resistant to movement and require fewer fixings. In order to account for the inevitable movement of timber, we recommend the following maximum spans between fixings for interior timber screens to keep the batten straight. Greater spans can be achieved to meet project-specific requirements
MAX BATTEN SPANS FOR INTERIOR APPLICATIONS
| SPECIES | MAXIMUM SPAN |
|---|---|
| Spotted Gum (Interior and Exterior) | 1.5m |
| Australian Ash (Interior Only) | 3.0m |
| American Oak (Interior Only) | 1.5m |

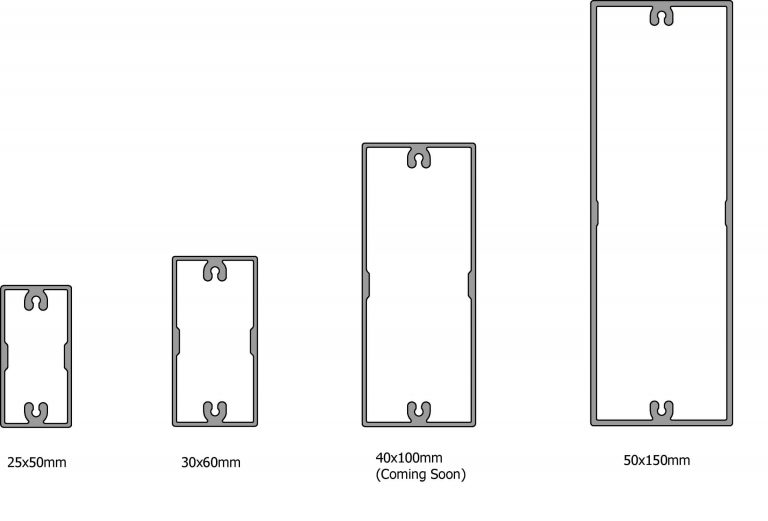

ALUMINIUM BATTENS
For applications where the required size of the screen is not possible with traditional timber battens, a viable alternative is to use our wrapped aluminium range. Real Timber Veneer or Wood Finish Aluminium battens can be used in the place of timber battens, allowing much greater lengths and spans between fixings. With lengths up to 6.2 metres available and up to 6 metres between fixings, large scale screens can be specified and installed quickly
MAXIMUM BATTEN SPANS FOR INTERIOR APPLICATIONS
| ALUMINIUM BATTEN SIZE | MAXIMUM SPAN |
|---|---|
| 25x50mm | 3.0m |
| 30x60mm | 3.0m |
| 30x60mm | 4.5m |
| 50x150mm | 6m |
