MAREA CONCEALED SLIDING DOOR
MAREA CONCEALED SLIDING DOOR

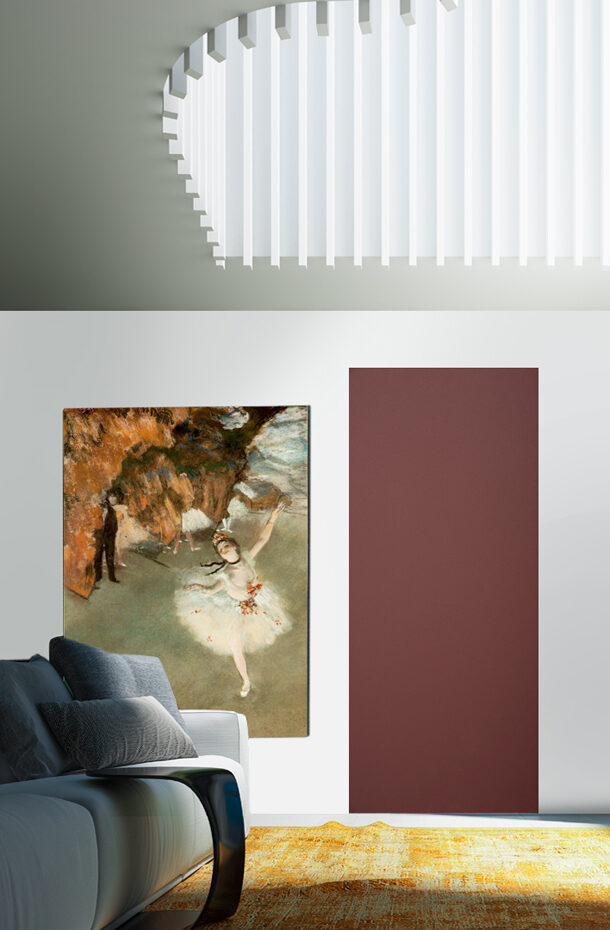

Linvisibile Concealed Sliding door is the first flush-to-wall sliding door. An exclusive patented system that offers an innovative and elegant solution to the classic sliding doors.
Available in motorized version with opening driven by a low-voltage motor and flush-to-wall push-button panel, or in manual version with flush fitting handle system.
It can be coated with almost any type of material (metal, stone, leather) to create special atmospheres, in a tasteful way. There are lacquered (glossy or matt) and wooden versions offered as well
FEATURES
CONCEALED SLIDING SYSTEM CONSISTS OF
- Rails-guide and related components.
- An extruded aluminium frame (EN AW 6060 alloy Anticorodal 063) that replaces the frame (outer frame-posts) and adapts to walls and plasterboard walls with different thickness.
- A panel with hollow-core structure, 50 mm thick, made with a perimeter frame in solid wood (Bahia rosewood, toulipier or fir tree) with high-density honeycomb interior, finished with 2 MDF sheets, 5 mm thick, on each side. Class E1 low formaldehyde emission. The manual model includes stop seals.
Two cams cause the door to move; these cams allow moving the panel completely flush with the wall (when closing) and slide it inside the wall (when opening). The door operates by sliding along a panel supporting carriage rail, all this mounted within an aluminium casing. Opening can be automatic, by pressing a button that is also flush with the wall, or manual, by a flush fitting handle.
INFORMATION
BRAND
Linvisibile
PRODUCTION
Made in Italy
USE
Opening and closing systems, room dividers, partitions
APPLICATIONS
- Retail
- Interior Design
- Residential
- Hospitality
DIMENSIONS - MOULDED VERSION
- Maximum width 900 mm to 2700 mm in height
– Maximum width 1000 mm to 2600 mm in height
– Maximum width 1100 mm to 2500 mm in height
– Maximum width 1200 mm to 2400 mm in height
METAL FINISHING VERSION:
- All widths from 800 to 900 mm
- All heights from 2100 to 2900 mm
FOR MOTORIZED VERSION
-Completely flush with the wall control plates -Flush fitting handles is positioned on the not flush to wall side
DIMENSIONS AND PERSONALIZATIONS
-Since it can be made to measure, Linvisibile Concealed Sliding System is perfect for both residential and contract installations. -Available only in single leaf model, and can be made up to 1100 mm wide and up to 3500 mm high (clear width).
PECULIAR TECHNICAL DETAILS
-Guide with highly performing carriages supports. -Flatness of the panel in its closing position for a whole camouflage with the wall.
SHAPES AND OPENINGS
FINISHES
WOOD ESSENCE
Quality surfaces, exclusive of refinement. Traditional and modern blend in higher quality woods, durable and prestigious.
No material is able to transmit the heat as the wood essence. Only the wood essence gives environments unique atmospheres, grain and different levels of density.
LEATHER
Natural product with high durability and precious aesthetic characteristics. A prestigious choice to cover surfaces with original textures that yield tactile sensations, strength and elegance.
A material synonymous with Made-in-Italy excellence in a product that guarantees maximum customisation and meticulous attention to every detail.
METAL
Surface shine, of metal. Amazing finishes that can be applied on all doors, available for the designer to give form to a space that reflects his/her imagination.
Metal plates to choose between copper, brass and aluminium, of a variable thickness in function of the required finishing, applied to the facades oh the honeycombe panel by glueing.
WOOD VENEER
A traditional material adapted to the most modern processes. The characteristics of veneered wood are manifold: resistance to scratches, heat and light; hassle-free maintenance and cleaning; rich range of wood types, colours and grains, and high standards of eco-sustainability.
For this finish, we relied on a leading Italian company in the world of Engineered wood, which offers maximum quality, a commitment to preserving the environment and attention to design. For those who want to make a conscious and responsible choice in total respect for the planet.
LACQUERING
The lacquer is one of the most elegant forms of panel finishes. Precious surfaces, shining in every possible color to give the inhabited a tone of exclusive elegance. Lacquers by Linvisibile refer exclusively to RAL classic K5 sample book. Lacquered colours are compliant to matt/glossy effect requirements: matt lacquered finish: 10 gloss; glossy lacquered finish: “100” gloss.
Lacquers by Linvisibile refer exclusively to RAL classic K5 sample book. Lacquered colours are compliant to matt/glossy effect requirements: matt lacquered finish: 10 gloss; glossy lacquered finish: “100” gloss.
LAMINATE
A new generation of smart materials for the typical vertical and horizontal applications found in interior design. The laminates we have chosen for our products have unique features.
Thanks to the innovative processing they undergo, they are moulded with fingerprint-proof surfaces, soft to the touch, matt and extremely resistant, so as to withstand bumps and scratches, as well as any possible damage from solvents and reagents typically used in household cleaning products. For the laminated finish, we relied on the collections by three cutting-edge brands, such as Fenix®, Homapal® and Formica®, which offer maximum quality and a wide range of colours.
FABRIC
An inimitable material that enhances the beauty of the panels, yielding an extraordinary tactile experience. Manufactured with cutting-edge technological processes, the fabric guarantees unique aesthetic, technical and sensorial performances.
Fabric offers at once elegant and refined yet light, sturdy and durable solutions. For this finish, we have entrusted Alcantara®, which embodies the new paradigm of contemporary lifestyle sought after by those who look for functionality and the emotion of beauty, while also respecting ethics and the environment.
MOULDED PANEL
Elegant moulded panel with high level of accuracy on all door panels for rich and sumptuous decorations giving interiors a unique touch.
Panel with hollow-core structure (honeycomb), made with a perimeter frame in solid wood finished with 2 mm MDF sheets on each side, where moulded panel works, to choose between the models quoted or on demand, after verification of feasibility.
