Cibes B385 Lift Cibes
B385 LIFT CIBES
B385 LIFT CIBES
B type lift Cibes B385 is a robust and simple wheelchair lift which can be installed indoors or outdoors.
If you are looking for a cost-efficient and user-friendly lift, the B385 could be the perfect choice for you.
- Indoor or outdoor installation
- Wheelchair-friendly lift solution
- Travel up to 3 metres
WHEELCHAIR-FRIENDLY B TYPE LIFT
B type lift Cibes B385 is a robust and reliable open platform lift solution, for indoor and outdoor use, which can travel up to 3 metres and can be installed in as little as 1-2 days. Available in 4 wheelchair friendly sizes, the Cibes B385 is a great accessibility solution for the mezzanine floors and outdoor terraces of all kinds of buildings.
FEATURES
CE MARKED
Cibes B385 has an Attestation of Conformity issued by TÜV and is allowed to carry the CE mark. EU standard and Machinery Directive compliant (2006/42/EC) BS6440-2011. Non-enclosed lift ways.
SAFE AND EASY TO USE
Our lifts meet the requirements of European safety standards and are safe and easy to use. A CE Declaration of Conformity is issued and provided for all Cibes B385 lifts after lift installation.
USER-FRIENDLY LIFT CONTROLS

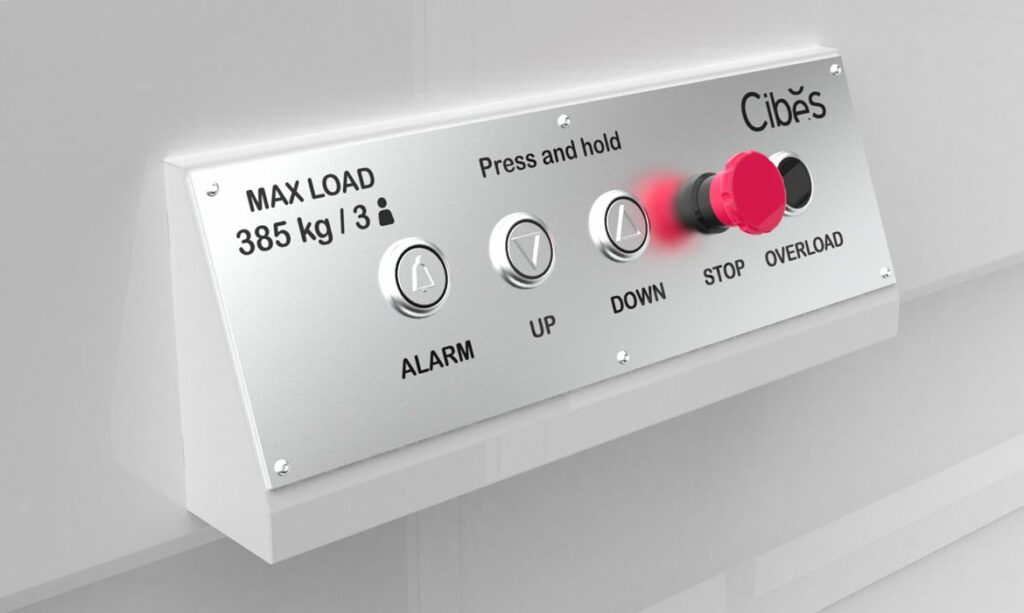

The Cibes B385 comes with an easy-to-use control panel with clearly marked buttons.
FLEXIBLE ACCESS
B Type Lift Cibes B385 is available with a multitide of different access configurations to fit any building.
- Straight-through access
- Adjacent access*
INFORMATION
POWER SUPPLY
1 × 230 VAC, 50 Hz, 16 A
MAX NUMBER OF STOPS
2
RATED LOAD
385 kg
SPEED
Max 0.06 m/s
ACCESS
Straight through/adjacent
CUT OUT SIZE FOR PIT (W X D)
- 1370 × 1580 mm
- 1370 × 1780 mm
- 1570 × 1580 mm
- 1570 × 1780 mm
EXTERNAL DIMENSIONS (W X D)
- 1310 × 1520 mm
- 1310 × 1720 mm
- 1510 × 1520 mm
- 1510 × 1720 mm
MAX TRAVEL
3 m
DOWNLOAD
↓ Information Sheet
LIFT PIT
60 mm or 0 mm with access ramp
INSTALLATION
- Indoor
- Outdoor
CIBES B385 - WATCH THE VIDEO
Cibes B385 can travel up to 3 meters and is the perfect accessibility solution for this modern gym.
INSTALLATION IN 1-2 DAYS
The ready-made concept of Cibes B385 speeds up installation time and minimizes structural impact.
USE
Elevator/Lift
PRODUCTION
Made in Sweden
PLATFORM SIZES (W X D)
- 900 × 1400 mm
- 900 × 1600 mm
- 1100 ×1400 mm*
- 1100 × 1600 mm
ADAPTED TO OUTDOOR CONDITIONS
The Cibes B385 is equipped to resist rough weather conditions and temperature changes.
WHEELCHAIR-FRIENDLY ACCESS & SIZES
The lift comes in 4 different sizes and can be configured with straight-through or adjacent access.
DELIVERED ALL READY MADE
The Cibes B385 is delivered in ready-made elements to facilitate installation.
B TYPE LIFT DESIGN OPTIONS
The Cibes B385 is available in more than 150 RAL colours or in stainless steel finish to match the style and colour scheme of your building. It is also possible to add a discreet touch of colour to your Cibes B385 by choosing tinted glazing.
INSTALLATION
EASY INSTALLATION
Cibes B385 has a very simple construction. No pit, nor lift shaft, is required and the machine room is integrated with the lift. Installation could not be easier!
- No pit, no lift shaft
- Built-in machine room
- Installation in 1-2 days
INSTALLATION TYPES
