Thesplashlabusa The Ribbon Hand Dryer TSL.R.030

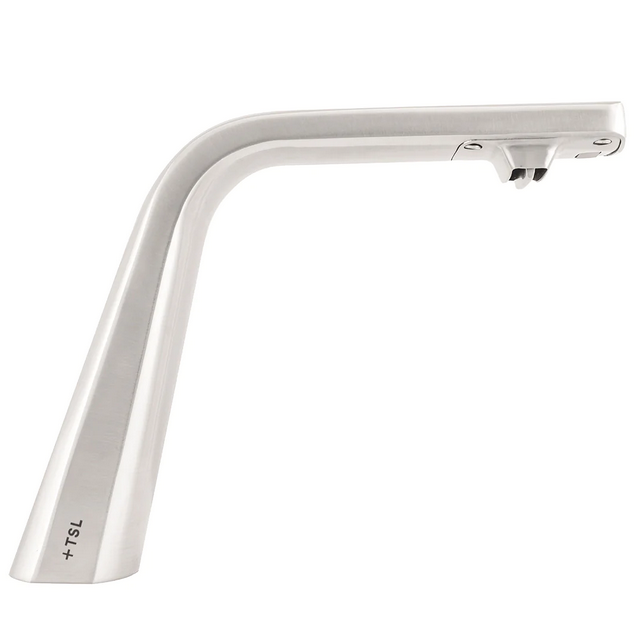

THE RIBBON HAND DRYER
THE RIBBON HAND DRYER - TSL.R.030
The Splash Lab developed The Ribbon to meet a need for a commercial fixture that was both technologically advanced, sustainably minded, and humanistic in its design. Nowhere is this more clear than in the design of the hand dryer.
. A small vent on the underside of the fixtures produces a gentle but powerful stream of air that directs water off the hands and into the basin in a process that is both pleasant and hygienic.
The sensor is placed just in front of the vent, so triggering the airflow is a seamless and intuitive gesture for the user.
INFORMATION
BRAND
Thesplashlabusa
TYPE
Hand Dryer
STAINLESS STEEL GRADE
AISI 304 Stainless steel
USE
Bathroom Equipment
MOTOR TYPE
- Brush type
- Dual Ball Bearings
VOLTAGE
- 110 - 120 AC
- 50/60Hz
AIR SPEED
367 ft/s
CURRENT DRAW
7.6 - 8.4A
POWER CONSUMPTION
0.84 - 1.0 kW
STANDBY POWER
0.3 - 0.4W
APPLICATIONS
Corporate
WEIGHT
17lb. 13oz.
CERTIFICATIONS & COMPLIANCES
- CE
- UL
- ADA
- RoHS
DIMENSION
- Height : 6 13/16"
- Length : 8 7/8"
CHARACTERISTICS
- Modular
- Eco-friendly
- Clean Aesthetic
- Easy Specification
- Simple-installation
COLORS
