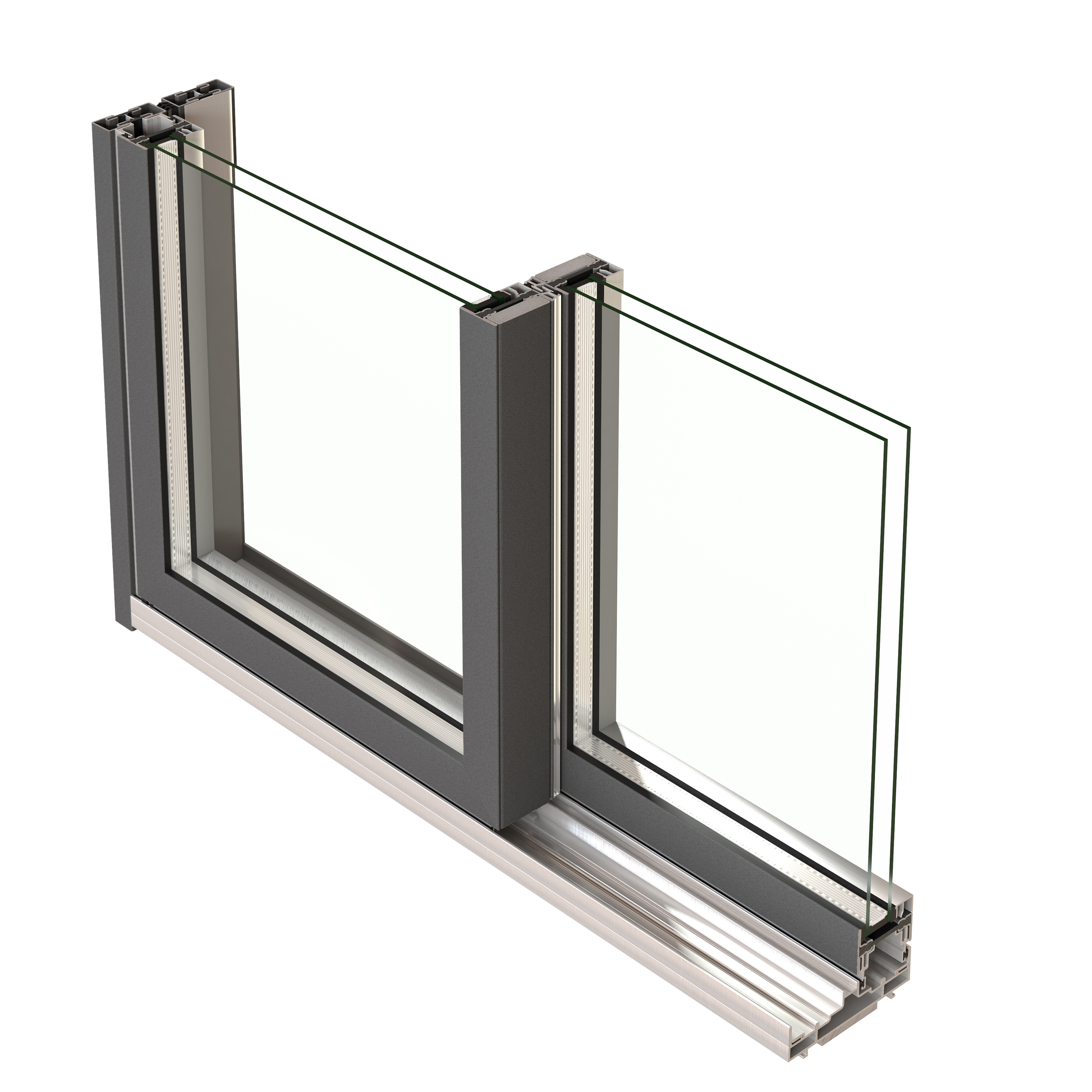

Jansen Janisol Arte 2.0 Sliding Door System
JANISOL ARTE 2.0 SLIDING DOOR SYSTEM
JANISOL ARTE 2.0 SLIDING DOOR SYSTEM
Using the extremely slimline steel profile system Janisol Arte, extremely large sliding doors with slim face widths and high stability can be prepared.
Originally developed by Jansen for the reconstruction of historic windows, Janisol Arte now offers architects and planners the possibility to divide large glass fronts in new buildings.
INFORMATION
SOUND INSULATION
41 db
INSULATING GLASS
20 to 34 mm
CHARACTERISTICS
- Extremely slimline profiles
- Steel frame system
- Very large doors are possible
- High stability
CE MARKING IN ACCORDANCE
EN 14351-1
BONDING TECHNOLOGY TESTED
EN 14024
PERFORMANCE
Welded steel profile half shells in combination with glass-fibre reinforced high-performance plastics (100% recyclable) produce particularly stable frames

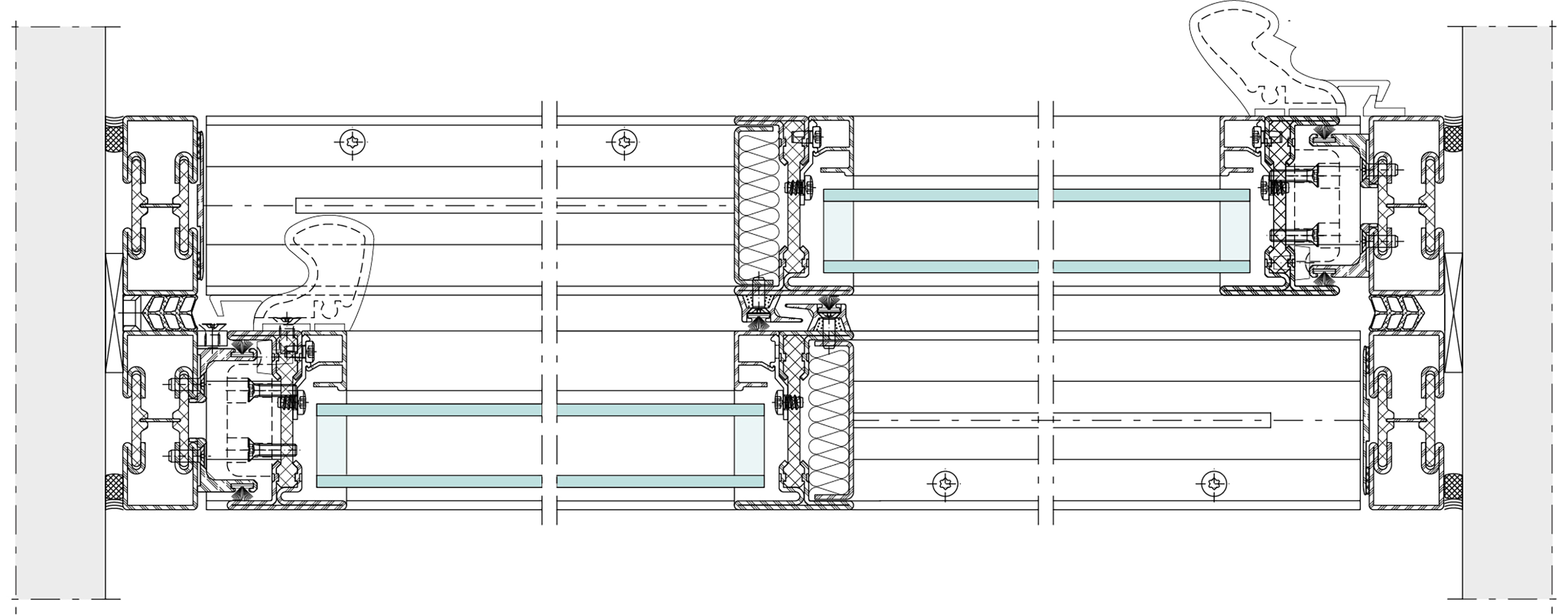

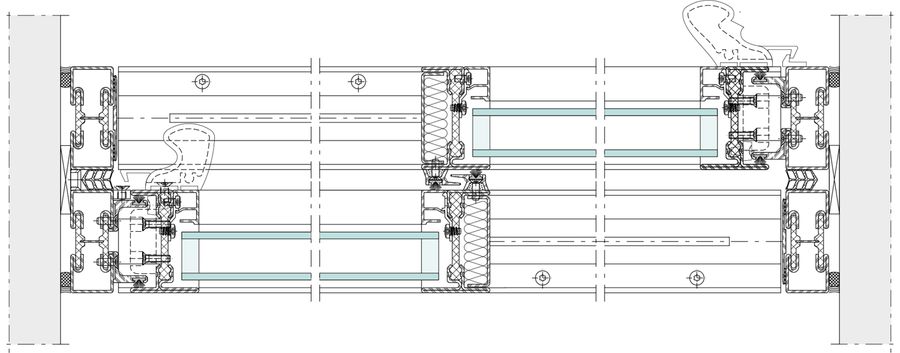

SECTION DETAIL
FACE WIDTH
Narrow
DOWNLOADS
ā Data Sheet
GLAZING
- Wet Glazingand
- Dry Glazing
LOCK
- Mortise lock
- Multipoint lock
APPLICATIONS
- Residential
- Commercial
UW VALUE
1.5 W/m2K
USE
Sliding Doors
WEIGHT
150 kg/leaf
PROFILE FACE WIDTHS
40 mm ensure more light
ELEMENT SIZES
- Height : 2500 mm
- Width : 3000 mm
INDIVIDUAL OPENING TYPES
- Open Inwards
- Outwards
WINDOW TYPE
Sliding
PRODUCTION
Made in Switzerland
FABRICATION BENEFITS
- Composite technology tested in accordance with EN 14024
- CE classification in accordance with EN 14351-1
- Optimum weldability of the profile frame due to the ZF surface finish
- Mechanical strength tested in accordance with EN 13115
- Impact resistance tested in accordance with EN 13049
BIM MODEL
Janisol Arte 2.0 sliding door, Unit examples
Using the extremely slimline steel profile system Janisol Arte, extremely large sliding doors with slim face widths and high stability can be prepared. Originally developed by Jansen for the reconstruction of historic windows, Janisol Arte now offers architects and planners the possibility to divide large glass fronts in new buildings.
DESIGN BENEFITS
- Vent sizes of 1000 Ć 2400 mm
- Vent weight of up to 150 kg
- Unit thicknesses from 20 to 47 mm
- U w value from 0.8 W/m2 K
- Multi-point window locking
- Single and double-vent windows
- New materials for profiles: stainless steel and Corten
- Burglar resistance tested in accordance with EN 1627 up to RC2
- Inward and outward-opening fixed glazing/window vents
- Inward-opening side-hung, bottom-hung and double-vent windows
- Outward-opening side-hung, top-hung, double-vent, horizontal pivot and vertical pivot windows, projected top-hung windows
