Saniflo Sanipro Basin
SANIPRO BASIN
SANIPRO BASIN
Sanipro is the ideal option for installing a toilet, hand basin and shower
- Compact neat and unobtrusive
- Quiet Technology
- Capacity for ensuite installation
Sanipro is a macerator with multiple inlets that allows you to connect a washbasin, a shower and a toilet.It discharges the wastewater up to 5 meters vertically or 100 meters horizontally or a lesser combination of the two.
INFORMATION
BRAND
Saniflo
FREQUENCY
50-60 Hz
APPLICATION
- Toilet
- Hand Basin
- Shower
USE
Macerator
IP RATING
IP44
DISCHARGE PIPEWORK
32 mm
NUMBER OF ENTRIES
4
DETAIL
- Discharge Length : 100 m
- Max. Head (Q0) : 5 m
- Shower Tray Height : 130 mm
- Inlet Pipework : 100/40 mm
CHARACTERISTICS
- Compact
- Unobtrusive
- Quiet Technology

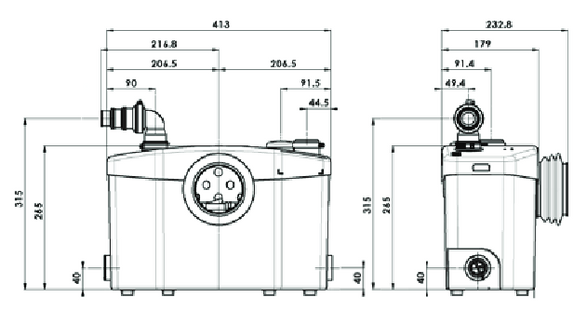

DIMENSION
- Length : 413 mm
- Height : 265 mm
- Width : 179 mm
ELECTRICAL CLASS
I
NOISE LEVEL
46 dB(A)
FEATURES
- Quiet Technology
- Flush for optimal function
- Capacity for ensuite installation
- Compact neat and unobtrusive
- Factory pre-mounted non return valve
- Macerator needs minimum 4.5 L of unrestricted
- Can be equipped with Sanialarm (sold separately)
FLOW RATE CHART
VERTICAL/HORIZONTAL PERFORMANCE
Increase size of horizontal run by one pipe size after 5m. All horizontal pipework requires a minimum of 1:100 fall.
