SANIPACK PRO UP PUMPS
SANIPACK PRO UP PUMPS
Designed for discreet wall hung toilet installations, the Sanipack Pro UP pumps waste from a toilet, basin and shower and has slim dimensions enabling possible concealment.
- Perfect for wall hung toilet suite
- Access panels for ease of servicing
- Slim dimensions
Sanipack Pro Up is the only grinder which can be completely fitted in a wall cavity and inside all the wall-fittings of a business worksite. It's ideal for installing a wall-hung toilet.
Equipped with an access hatch, the Sanipack Pro UP facilitates maintenance interventions in case of blockage, without the need to disassemble the device or empty the tank. This is one of the quietest lines of grinders on the market with only 47dB (A).
INFORMATION
BRAND
Saniflo
FREQUENCY
50 Hz
VOLTAGE
220-240 V
IP RATING
IP44
CHARACTERISTICS
- Slim
- Quiet Technology
- Easy Acces
- Easy Maintenance

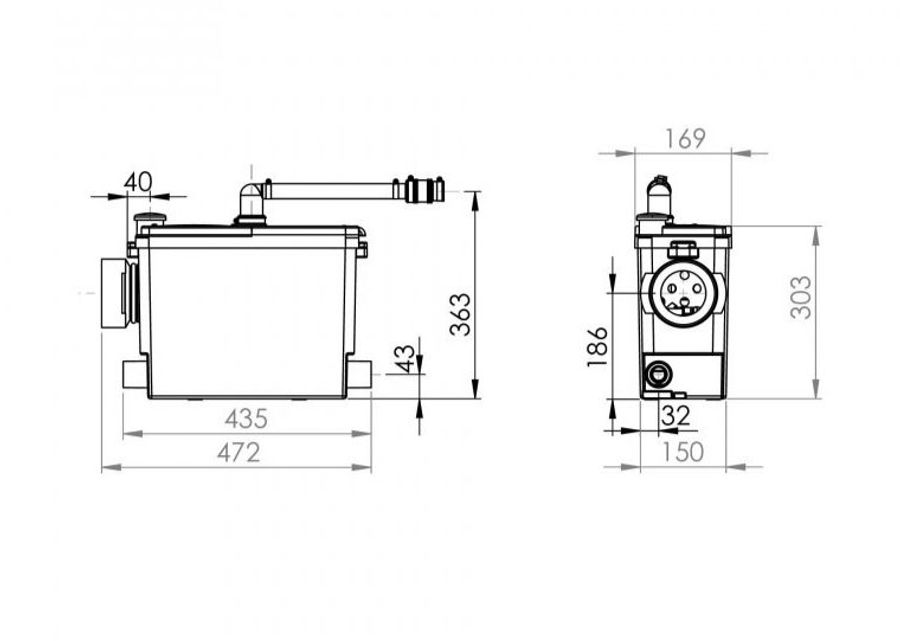

DIMENSIONS
- Height : 363 mm
- Width : 169 mm
- Length : 435 mm
- Weight : 7kg
USE
Macerator
MAX. HEAD (Q0)
5 m
DISCHARGE LENGTH
100 m
APPLICATIONS
- Wall hung toilet
- Basin and Shower
NUMBER OF ENTRIES
3
INLET PIPEWORK
100/40 mm
DISCHARGE PIPEWORK
22/28/32 mm
MOTOR POWER
400W
REMOTE INSTALLATION BOWL
Max. 50 cm
ELECTRICAL CLASS
I
NOISE LEVEL
47 dB(A)
SHOWER TRAY HEIGHT
130 mm
PERFORMANCE CHART
- Flow Rate Performance Chart
- Vertical/horizontal Performance
