MAREA POCKET DOOR
MAREA POCKET DOOR
Linvisibile presents the first Pocket door, which holds an unprecedented technological, functional and patent surplus value.
An innovative product that revolutionises the concept of assembly, handling and maintenance for sliding doors. It is the ideal partner to any settings whether at home or work.
It can be coated with almost any type of material (metal, stone, leather) to create special atmospheres, in a tasteful way. There are lacquered (glossy or matt) and wooden versions offered as well.
FEATURES
INVISIBLE HANDLES
Doors are fitted with totally invisible handles, perfectly flush to the panel and matching the panel color, which stresses invisibility and the artistic structural cut. Exclusive Linvisibile feature.
EXTREMELY EASY TO ASSEMBLE.
Technology was conceived to renew and markedly simplify both assembly and maintenance of the panel, characteristic of the sliding systems known so far. Just acting on 2 screws is enough to fully install and adjust the panel, without the need to work directly on the leaf.
100% SOLID STRUCTURE.
The aluminium walls forming the panel housing pocket are as sturdy as the walls themselves. The structure is so solid that not even the slightest bending is formed, thereby there is no risk of cracks in the plaster and/or pre-selected finish.
REFINED AESTHETIC SENSE.
Thanks to a basic directional system that guides panel movement, the visible leaf surfaces are absolutely free of through grooves. When the leaf is open, the panel is perfectly aligned with the jamb, which grants the assembly an extremely linear and essential appearance. Moreover, this directional system keeps the door centre line aligned when the leaf slides, which guarantees optimal panel stability and avoids sideways ‘oscillation’ at opening/closing.
TEMPLATE
There is a template used as a strengthening spacer to keep the entire structure perfectly true and square during assembly, and to ensure a perfect panel housing pocket/ striker alignment;
A square tubular spacer (TEMPLATE) is used as a strengthening element to keep the entire structure perfectly true and square during assembly and to ensure a perfect panel housing pocket/ striker alignment.
HIGHLY FUNCTIONAL SLIDING SYSTEM.
Thanks to the body-guide patented no operation is carried out on the panel. All that is required is to acting on 2 screws only, placed close to the upper corner between the top rail and the striker, always easily reached, even when the door is being used.
The carriage, fitted to the guide, has bumpers so that the panel can be opened and closed while softly braked, with precise, safe and absolutely silent movements. Moreover, the guide “isolate” all the frame top rail and the panel housing pocket walls so that all vibrations caused by sliding do not affect them, which reduces any risk and defect transmitted to the plaster down to zero.
INFORMATION
AVAILABLE DIMENSIONS
- Minimum size of clear width: Width 540+540 x 1000 mm Height;
- Maximum size of clear width: Width 900+900 x 2400 mm Height
BRAND
Linvisibile
PRODUCTION
Made in Italy
2 TYPES OF PANELS (FREE OF VISIBLE FUNCTIONAL PROCESSING)
– Standard With The Same “squared” Shape As The Single Door Panel;
– Upon Request, Panels With Doorstop, With Lock And Lock Strike Overlapping On The Edge.
APPLICATIONS
- Retail
- Office
- Residential
THE POCKET DOOR CAN BE MADE IN THE FOLLOWING SIZES
- Standard measures : mm 700/ 800/ 900/1200 X H 2100 /2400/2800 mm
- Not standard measures (step to the centimeter): all width from 610 to 1200 mm, all height from 1910 to 3500 mm
SCOPE OF SUPPLY
- Aluminium frame
- Glass leaf included
GLASS PANEL VERSION
A unique system in the sliding glass doors panorama because it allows, thanks to patented guide rail with bumpers, controlling the movement of the door, for softly braked opening and closing.
USE
- Pocket door
- Hinged door
DIMENSIONS METAL FINISHING VERSION
- Width : From 600 to 900 mm
- Height : From 1900 to 2800 mm ( for the 125-150 mm model, heights up to 2900 mm)
DIMENSIONS MOULDED VERSION
Max available dimensions width 1200 mm x height 2800 mm
SERVO ASSISTED ANCHORAGE OF THE GLASS PANEL COMPOSED OF
- Guide with bumpers
– Chrome metal pulling handle
– Profiles for adapting the frame to glass thickness
- Carriage equipped with anchorages for glass (and the relative carters)
– Base guide,
BUMPERS
As for the 35 kg or 50 kg version of the Linvisibile Marea | Pocket Door depending on the weight of the door for which they are designed.
PECULIAR TECHNICAL DETAILS
- The aluminum walls forming the panel housing pocket are as sturdy as the walls themselves. The structure is so solid that not even the slightest bending is formed, thereby there is no risk of crack in the plaster and /or pre-selected finish.
- The visible leaf surfaces are absolutely free of through grooves (except for any work done to fit handles).
- A template used as a strengthening spacer to keep the entire structure perfectly true and square during assembly.
- It is provided with a pulling eyelet flush-fitting handle lacquered white RAL 9016 or matt chrome.
- Possibility to realize different types of handles with milling

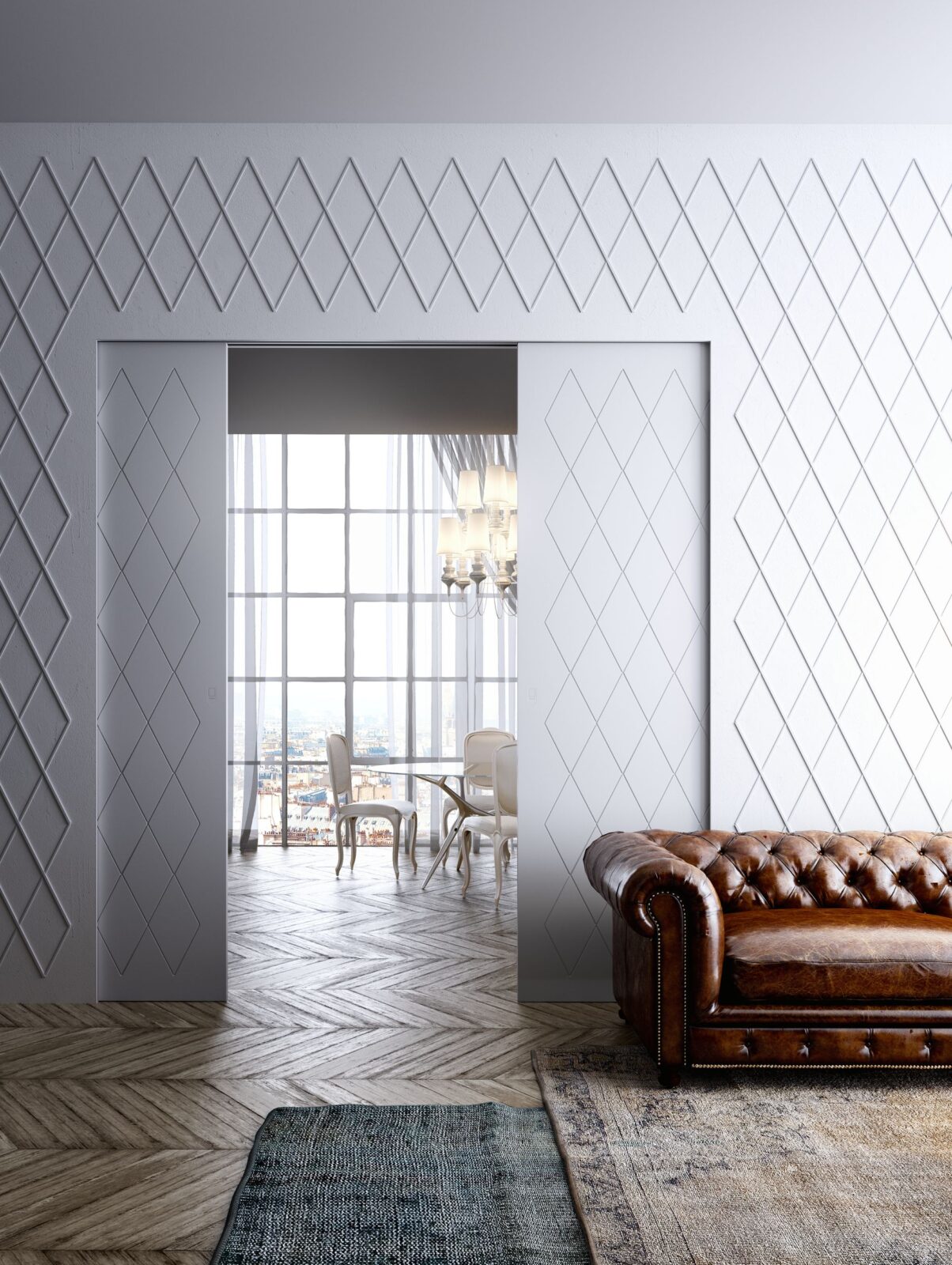

DOUBLE LEAVES VERSION
The double leaves Pocket Door keeps the main characteristics of the one leaf version:
- Universal aluminium frame, for masonry and plasterboard;
- Feasible for 105, 125 and 150 mm thick walls;
- Possibility to apply the skirting boards flush on the 125 mm version (according to the specifications which are similar to the single door);
- The panel adjustments are always accessible even when the doors are already installed;
- Invisible handle on the edge for pulling;
- The product is equipped with dampening system for opening and closing doors
- By default made with symmetrical doors (the feasibility of a-symmetric doors is evaluated on request)
GLASSES FEATURES
- The anti-touch finishing is only done on the side of the glass with the acid etching. At the time of ordering the side chosen must be specified.
- The laminated glass is done by joining two plates between which the lacquer/acid etching layer is normally inserted.
- The acid etched glass produces a satin texture finish with a “see-through” effect on the surface
- The transparent glass makes it possible to see through the leaf.The glass supplied is tempered, 10 mm (single) thick or 5+5 mm (laminated).
- To allow easy grip of the handle the glass door is designed to reduce the clear width of the frame by about 10 cm, precisely because the door protrudes over the frame line by about 10 cm (example: for frame with clear width :800mm with effective width P.S.:700mm).
SHAPES AND OPENINGS
FINISHES
WOOD ESSENCE
Quality surfaces, exclusive of refinement. Traditional and modern blend in higher quality woods, durable and prestigious.
No material is able to transmit the heat as the wood essence. Only the wood essence gives environments unique atmospheres, grain and different levels of density.
LEATHER
Natural product with high durability and precious aesthetic characteristics. A prestigious choice to cover surfaces with original textures that yield tactile sensations, strength and elegance.
A material synonymous with Made-in-Italy excellence in a product that guarantees maximum customisation and meticulous attention to every detail.
METAL
Surface shine, of metal. Amazing finishes that can be applied on all doors, available for the designer to give form to a space that reflects his/her imagination.
Metal plates to choose between copper, brass and aluminium, of a variable thickness in function of the required finishing, applied to the facades oh the honeycombe panel by glueing.
WOOD VENEER
A traditional material adapted to the most modern processes. The characteristics of veneered wood are manifold: resistance to scratches, heat and light; hassle-free maintenance and cleaning; rich range of wood types, colours and grains, and high standards of eco-sustainability.
For this finish, we relied on a leading Italian company in the world of Engineered wood, which offers maximum quality, a commitment to preserving the environment and attention to design. For those who want to make a conscious and responsible choice in total respect for the planet.
LACQUERING
The lacquer is one of the most elegant forms of panel finishes. Precious surfaces, shining in every possible color to give the inhabited a tone of exclusive elegance.
Lacquers by Linvisibile refer exclusively to RAL classic K5 sample book. Lacquered colours are compliant to matt/glossy effect requirements: matt lacquered finish: 10 gloss; glossy lacquered finish: “100” gloss.
LAMINATE
A new generation of smart materials for the typical vertical and horizontal applications found in interior design. The laminates we have chosen for our products have unique features.
Thanks to the innovative processing they undergo, they are moulded with fingerprint-proof surfaces, soft to the touch, matt and extremely resistant, so as to withstand bumps and scratches, as well as any possible damage from solvents and reagents typically used in household cleaning products. For the laminated finish, we relied on the collections by three cutting-edge brands, such as Fenix®, Homapal® and Formica®, which offer maximum quality and a wide range of colours.
FABRIC
An inimitable material that enhances the beauty of the panels, yielding an extraordinary tactile experience. Manufactured with cutting-edge technological processes, the fabric guarantees unique aesthetic, technical and sensorial performances.
Fabric offers at once elegant and refined yet light, sturdy and durable solutions. For this finish, we have entrusted Alcantara®, which embodies the new paradigm of contemporary lifestyle sought after by those who look for functionality and the emotion of beauty, while also respecting ethics and the environment.
MOULDED PANEL
Elegant moulded panel with high level of accuracy on all door panels for rich and sumptuous decorations giving interiors a unique touch.
Panel with hollow-core structure (honeycomb), made with a perimeter frame in solid wood finished with 2 mm MDF sheets on each side, where moulded panel works, to choose between the models quoted or on demand, after verification of feasibility.
