M&T Magnetic Precise Door Control
MAGNETIC PRECISE DOOR CONTROL
MAGNETIC PRECISE DOOR CONTROL
Magnetic is a patented system with precise door control adjustments.
By simply rotating the screw head we move further or move closer in the magnet plate and thus regulate the magnetic contact force between the door and the doorframe.
Magnetic is prepared for all door variants, for EU type jamb doorframes, metal or invisible. For new buildings and renovations. Magnetic is installed in the doorframe. As a counter plate we use a magnetic block. Magnetic can be installed by a professional joiner in an existing door as an exchange for a classic door lock.
INFORMATION
BRAND
M&T
PRODUCTION
Made in Czechia
DESIGNER
Roman Ulich
CERTIFICATION
Red dot winner 2020
USE
- Door control system
- Handle
WARRANTY
- Surfaces 3 years
- Function 30 years
PREPARATION FOR DOOR FRAME
Preparation is provided by the door manufacturer
MATERIAL
Metal body + neodymium magnets
DOWNLOADS
↓ Magnetic (DWG)
ACCESSORIES
The package includes:
- Magnetic
- Fasteners
- Warranty card
- Allen key number 5
- Allen key number 1,5
- Assembly instructions
APPLICATIONS
Designed for interior doors to the height 3000 mm, for door weight up to 200 kg, efficiency can be increased by using 2 or more Magnetics.
CHARACTERISTICS
Manufactured in the Czech Republic, quality surface finishes, top handle mechanics, comprehensive guarantees, competitive pricing, uses brass/stainless steel, fast and precise assembly

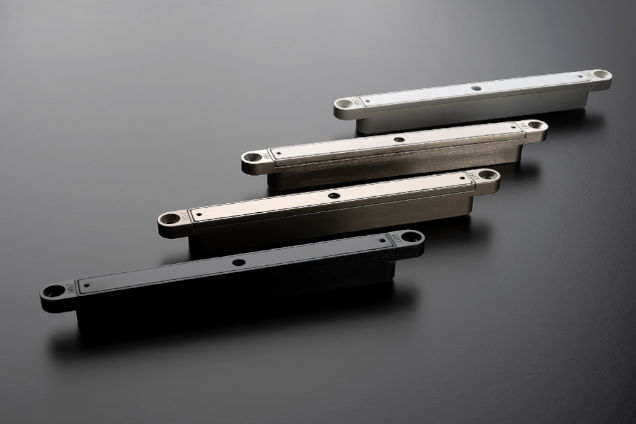

SURFACE FINISHES
- Nickel Saten Effect,
- Black Matt
- White Matt RAL 9003
- Stainless steel brushed effect
DIMENSIONS
- Height : 196 cm, 182 cm
- Width : 16 cm, 8 cm, 20 cm

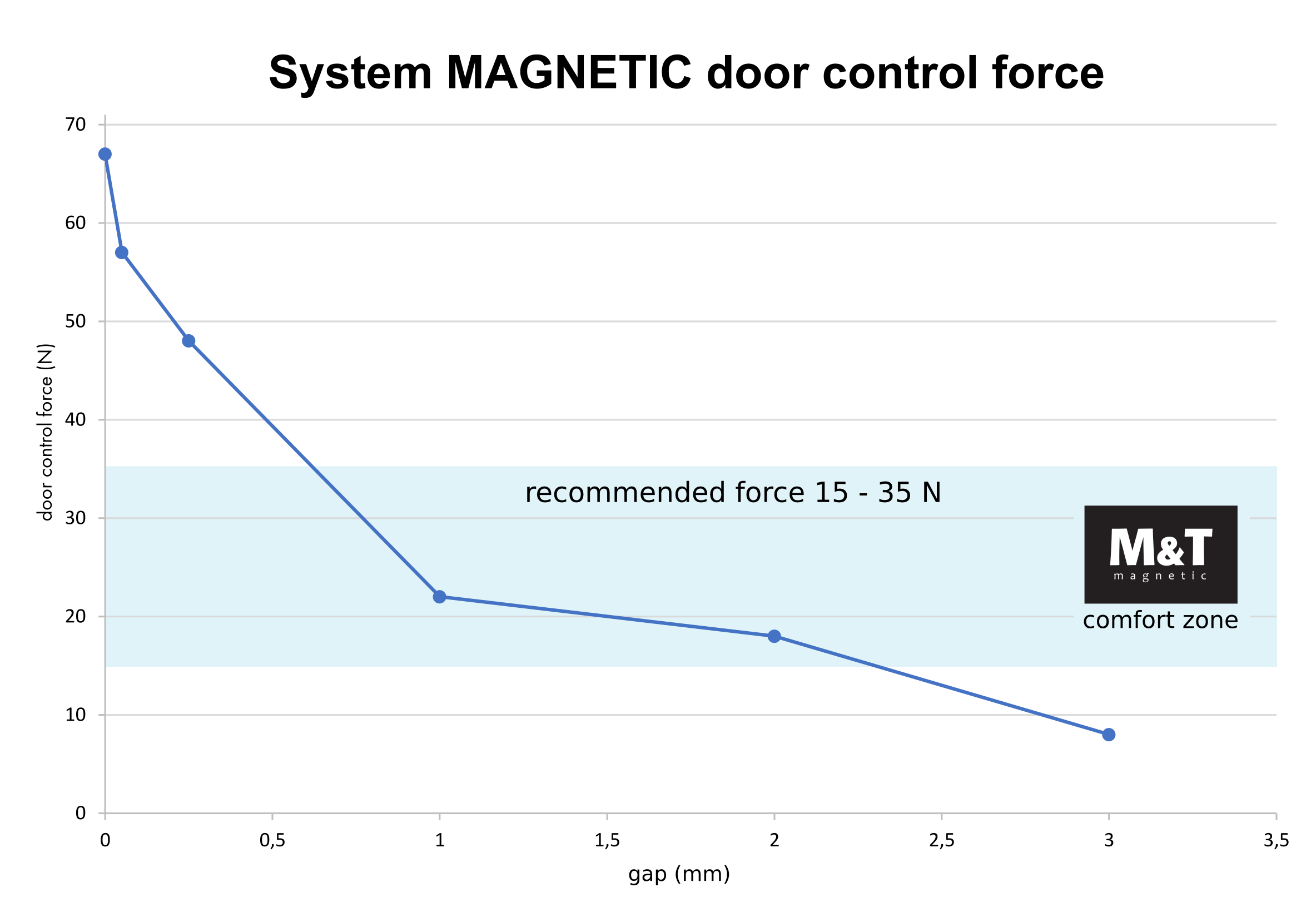

DOOR CONTROL FORCE
By simply turning the Allen key you can zoom in / out the magnets between the door and the door frame thus increasing / decreasing the efficiency of the magnets. For comfortable door control by Magnetic system we recommend a force
